Wago 899-632/103-000
Distribution box WINSTA® with protection against mismatingThe distribution box from the WINSTA® product line with protection against mismating guarantees you the greatest possible flexibility in elect…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Distribution box WINSTA® with protection against mismatingThe distribution box from the WINSTA® product line with protection against mismating guarantees you the greatest possible flexibility in electrical installation. With WAGO, you benefit from a large selection of expansions for the WINSTA® product line. The color coding and mechanical coding of the distribution box ensure error-free installation of the individual components – including protection against mismating. The distribution box is protected against ingress by solid objects in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)).Push-in CAGE CLAMP® spring pressure connection technology – pluggable installation instead of laborious screw connections!The WINSTA® Pluggable Connection System is ideally tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and thus faster, more reliable, and error-free. Using this pre-assembled system reduces assembly times and installation errors at the construction site. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with protection against mismating from WAGO. protection against mismating eliminates errorsclear slot identification for easy commissioningsaves time, since no wiring is required at the construction sitefast, secure installation
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 250 V |
| Rated impulse withstand voltage (III / 3) | 4 kV |
| Rated current | 16 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 250 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 16 A |
Electrical data - General information
| Note on contact resistance | approx. 1 mΩ contact resistance approx. 0.25 mΩ contact transition (plug/socket) |
|---|

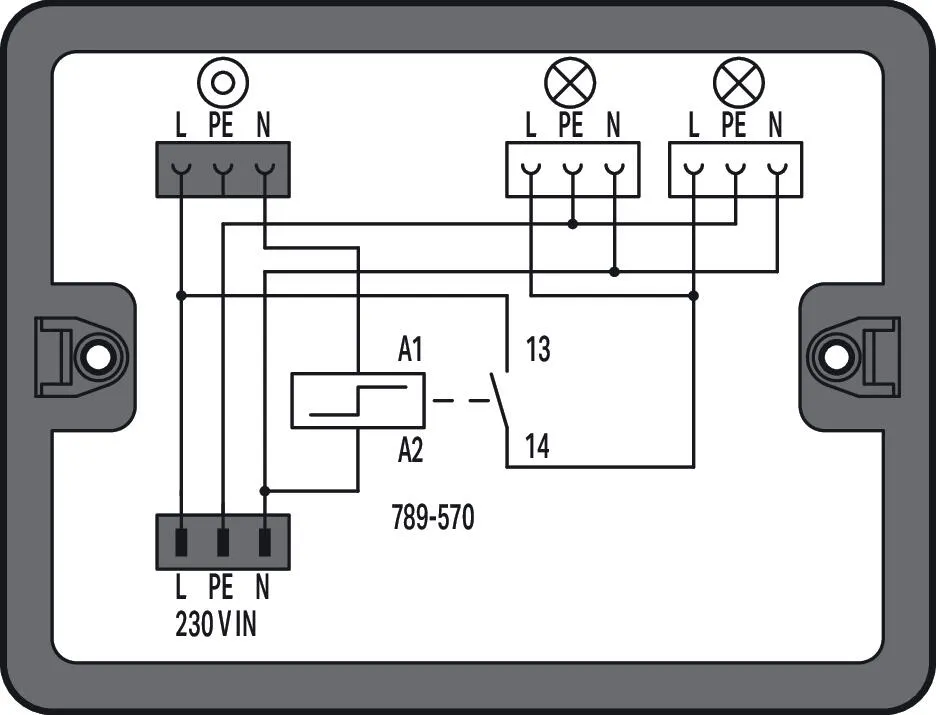

Connection data - Connection 1
| Connection type | Input |
|---|---|
| Pluggable connector | MIDI plug, 3-pole (770-213) |
Connection data - Connection 2
| Connection type | Input |
|---|---|
| Connector | MIDI socket, 3-pole (770-203) |
Connection data - Connection 3
| Connection type | Output |
|---|---|
| Connector | MIDI socket, 3-pole (770-223) |

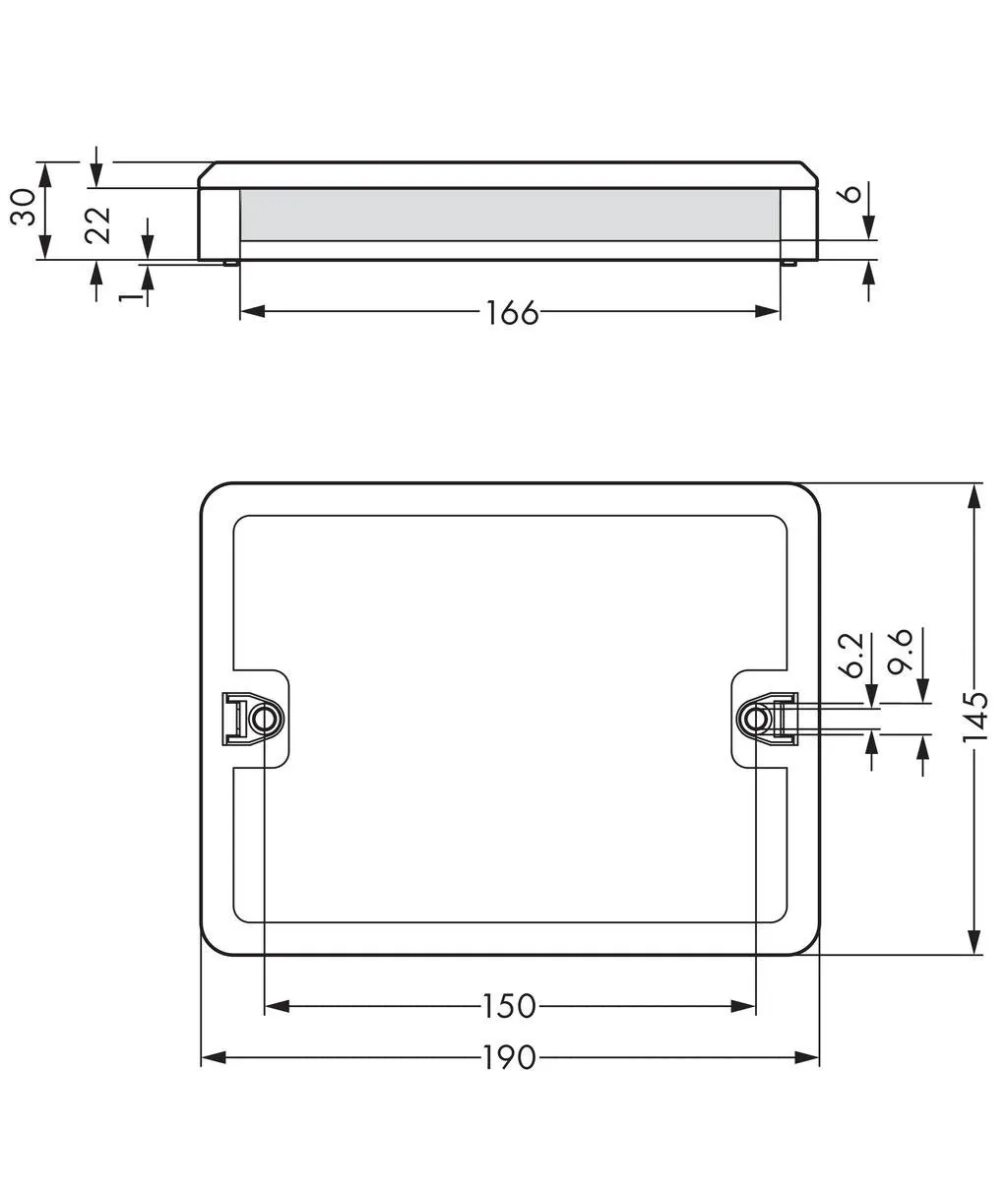

Physical data
| Width | 190 mm / 7.48 inches |
|---|---|
| Height | 31 mm / 1.22 inches |
| Depth | 145 mm / 5.709 inches |
Mechanical data
| Internal wiring | 2.5 mm² |
|---|---|
| Use | Latching relay |
| Coding | A |
| Mounting type | Wall, screw mount, Installation on mounting plate |
| Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Plug-in connection
| Mismating protection | Yes |
|---|---|
| Note on mismating protection | All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
| Locking of plug-in connection | locking lever |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Contact material | Copper or copper alloy; surface-treated |
| Contact plating | Tin |
| Fire load | 10.214 MJ |
| Weight | 630.5 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143940856 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121565 |
|---|---|
| ETIM 9.0 | EC002567 |
| ETIM 10.0 | EC002567 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
