Wago 893-1012
Male connector/plug WINSTA® KNX rated current 3 AFor power and signal transmission: The WINSTA® KNX male connector/plug E coding. Whether on PCBs, in control cabinets or for connecting lights – plugga…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

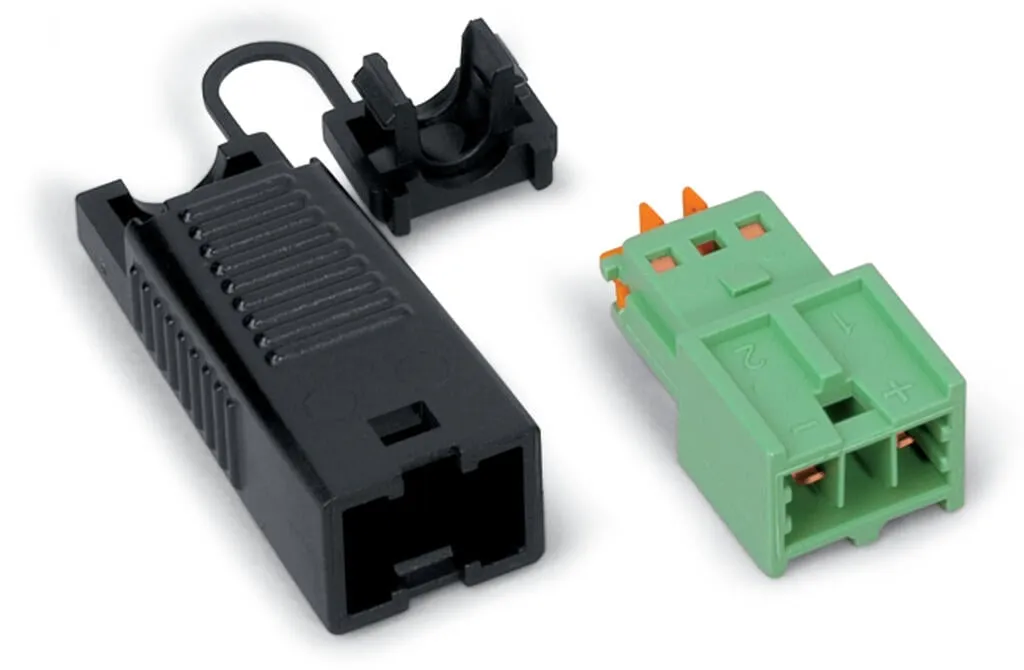

Male connector/plug WINSTA® KNX rated current 3 AFor power and signal transmission: The WINSTA® KNX male connector/plug E coding. Whether on PCBs, in control cabinets or for connecting lights – pluggable installation connectors from WAGO allow you to establish connections according to many different requirements in seconds. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20 (Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)). That results in the fact that users’ fingers will never come into contact with electrified elements. The KNX protocol allows different equipment within one building system to be linked. The standardised WINSTA® KNX pluggable installation connectors in green are employed for signal transfer in KNX networks.Lower costs through fast commissioning and elimination of service expenses – solutions from WINSTA® KNXWINSTA® is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It offers error-free installation of cables and components, quickly and reliably. Choose durability and quality – with protection against mismating from WAGO makes the installation of electrical components substantially easier. products perfectly tailored to your requirements guarantee safe usefor emergency power supplyflexible installation to save spacequick replacement of defective units during ongoing operation
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 50 V |
| Rated impulse withstand voltage (III / 3) | 0.8 kV |
| Rated current | 3 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 50 V |
| Rated impulse withstand voltage | 0.8 kV |
| Rated current | 3 A |
Electrical data - General information
| Note on contact resistance | Approx. 3 mΩ contact resistance |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 2 |
Connection data - Connection 1
| Connection technology | PUSH WIRE® |
|---|---|
| Actuation type | Push-in |
| Conductor diameter | 0.8 mm |
| Strip length | 9 mm / 0.35 inches |
| Pole number | 2 |
| Connectable sheathed cable diameter | 5 … 7 mm |
| Conductor entry direction to mating direction | 0 ° |
Physical data
| Width | 14.1 mm / 0.555 inches |
|---|---|
| Height | 11.1 mm / 0.437 inches |
| Depth | 47.5 mm / 1.87 inches |
Mechanical data
| Technology | KNX |
|---|---|
| Use | KNX |
| Coding | E |
| Variable coding | No |
| Marking | 1+ 2- |
| Potential marking | 1+ 2- |
| Mating force of a plug-in connection | approx. 10 … 15 N |
| Retention force of a plug-in connection | Locked: > 80 N |
| Unmating force of a plug-in connection | Unlocked: approx. 15 … 20 N |
| Number of mating cycles | 200, without resistive load |
| Protection type | IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.) |
Plug-in connection
| Contact type (pluggable connector) | Male connector/plug |
|---|---|
| Connector (connection type) | for conductor |
| Mismating protection | Yes |
| Note on mismating protection | All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
| Locking lever | Can be retrofitted |
| Locking of plug-in connection | locking lever |
| Strain relief | strain relief housing |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Copper alloy; surface-treated |
| Contact plating | Tin |
| Fire load | 0.171 MJ |
| Connector color | green |
| Strain relief color | black |
| Weight | 5.7 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | CH |
| GTIN | 4045454267445 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-44-06-05 |
| eCl@ss 9.0 | 27-44-06-05 |
| ETIM 9.0 | EC002560 |
| ETIM 10.0 | EC002560 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
Other
| Technology | KNX |
|---|
Reviews
Clear filtersThere are no reviews yet.
