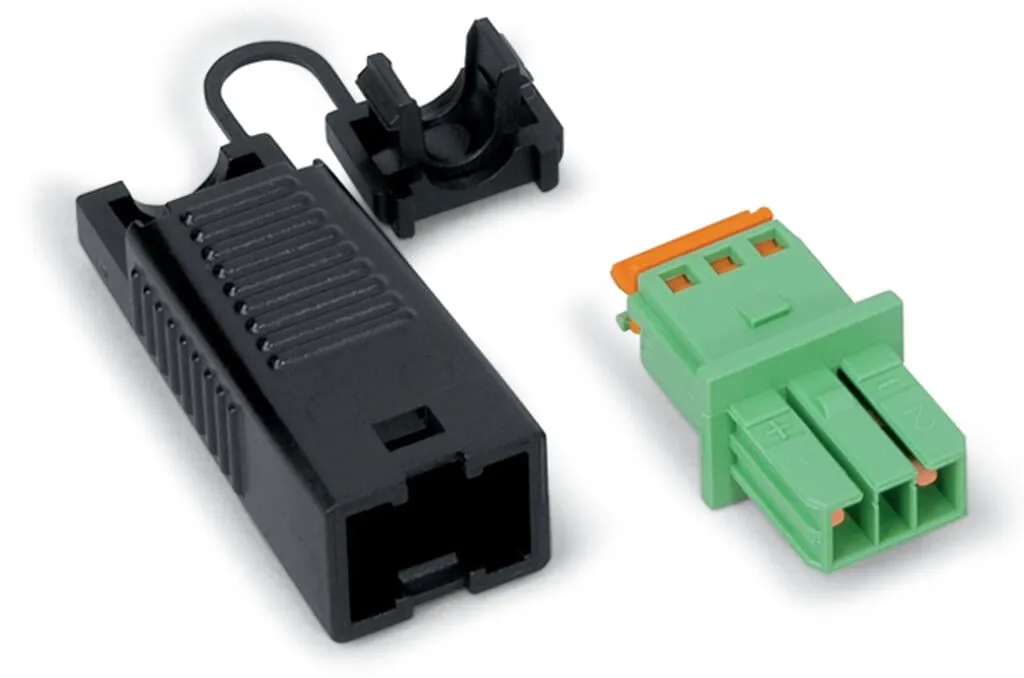

Wago 893-1002
Female connector/socket WINSTA® KNX with protection type IP20The WINSTA® KNX female connector/socket rated current 3 A is the pluggable solution for your application in control cabinets, on PCBs or fo…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Female connector/socket WINSTA® KNX with protection type IP20The WINSTA® KNX female connector/socket rated current 3 A is the pluggable solution for your application in control cabinets, on PCBs or for lighting connections. Whether on PCBs, in control cabinets or for connecting lights – pluggable installation connectors from WAGO allow you to make connections according to many different requirements in no time flat. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20 (Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)). The KNX protocol allows different equipment within one building system to communicate. WINSTA® KNX pluggable installation connectors with E coding are primarily used in KNX applications.Push-in CAGE CLAMP® spring pressure connection technology – pluggable installation instead of laborious screw connections!WINSTA® is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It allows fast, secure and, above all, error-free installation of components and cables. Now you can also cut installation expenses without compromising quality and safety: with marking reduces the need for servicing and prevents unnecessary downtime. saves time, since no wiring is required at the construction sitewith E coding for AC and DC applicationsready for immediate userapid, structured electrical installation
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 50 V |
| Rated impulse withstand voltage (III / 3) | 0.8 kV |
| Rated current | 3 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 50 V |
| Rated impulse withstand voltage | 0.8 kV |
| Rated current | 3 A |
Electrical data - General information
| Note on contact resistance | Approx. 3 mΩ contact resistance |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 2 |
Connection data - Connection 1
| Connection technology | PUSH WIRE® |
|---|---|
| Actuation type | Push-in |
| Conductor diameter | 0.8 mm |
| Strip length | 9 mm / 0.35 inches |
| Pole number | 2 |
| Connectable sheathed cable diameter | 5 … 7 mm |
| Conductor entry direction to mating direction | 0 ° |
Physical data
| Width | 14.1 mm / 0.555 inches |
|---|---|
| Height | 11.1 mm / 0.437 inches |
| Depth | 47.5 mm / 1.87 inches |
Mechanical data
| Technology | KNX |
|---|---|
| Use | KNX |
| Coding | E |
| Variable coding | No |
| Marking | 1+ 2- |
| Potential marking | 1+ 2- |
| Mating force of a plug-in connection | approx. 10 … 15 N |
| Retention force of a plug-in connection | Locked: > 80 N |
| Unmating force of a plug-in connection | Unlocked: approx. 15 … 20 N |
| Number of mating cycles | 200, without resistive load |
| Protection type | IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.) |
Plug-in connection
| Contact type (pluggable connector) | Female connector/socket |
|---|---|
| Connector (connection type) | for conductor |
| Mismating protection | Yes |
| Note on mismating protection | All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
| Locking lever | Can be retrofitted |
| Locking of plug-in connection | locking lever |
| Strain relief | strain relief housing |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Copper alloy; surface-treated |
| Contact plating | Tin |
| Fire load | 0.15 MJ |
| Connector color | green |
| Strain relief color | black |
| Weight | 5 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | CH |
| GTIN | 4045454267469 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-44-06-05 |
| eCl@ss 9.0 | 27-44-06-05 |
| ETIM 9.0 | EC002560 |
| ETIM 10.0 | EC002560 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
Other
| Technology | KNX |
|---|
