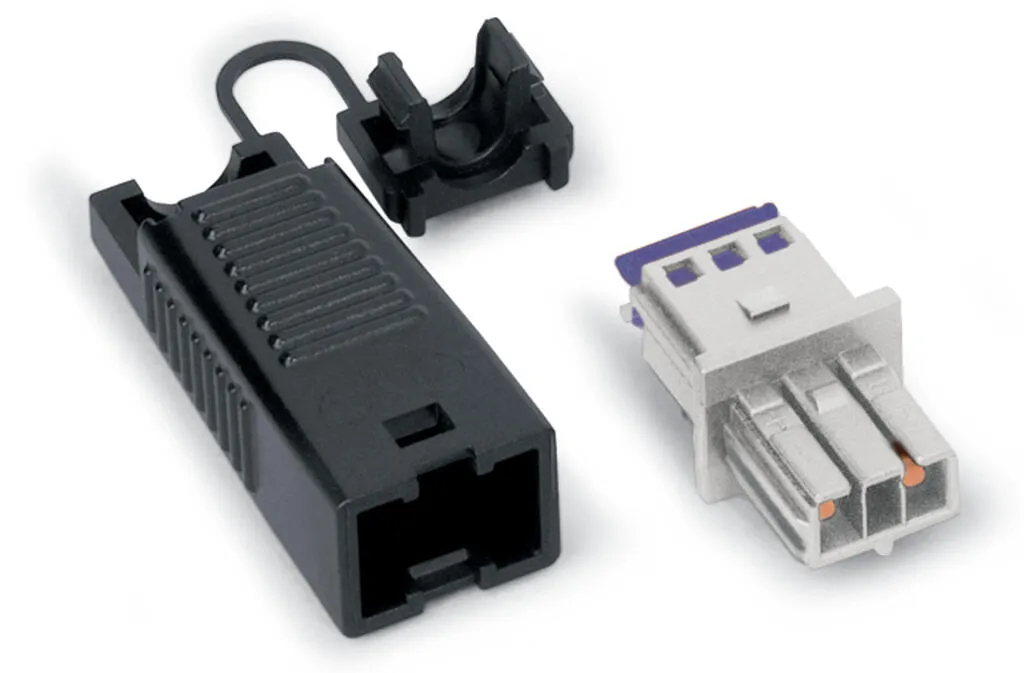

Wago 893-1022
Female connector/socket WINSTA® KNX 2-poleThe WINSTA® KNX female connector/socket F coding provides the foundation for assembly of fine-stranded and solid conductors. Our pluggable installation connec…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Female connector/socket WINSTA® KNX 2-poleThe WINSTA® KNX female connector/socket F coding provides the foundation for assembly of fine-stranded and solid conductors. Our pluggable installation connectors with spring pressure connection technology function completely without screw connections. They allow fast, efficient, error-free installation in a large number of applications. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components – including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20 (Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)). This means that users’ fingers will never come into contact with live elements. The KNX standard is the ultimate benchmark in building automation. It ensures error-free, manufacturer-independent networking of advanced building systems. The grey WINSTA® KNX pluggable installation connectors in F coding support applications in the low-voltage domain.WINSTA® KNX solutions for your electrical installation – protected against mismating and maintenance-freeThe WINSTA® Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with marking from WAGO. products perfectly tailored to your requirements guarantee safe usefor high-power connections for supplying powerflexible installation to save spacefast, secure installation
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 50 V |
| Rated impulse withstand voltage (III / 3) | 0.8 kV |
| Rated current | 3 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 50 V |
| Rated impulse withstand voltage | 0.8 kV |
| Rated current | 3 A |
Electrical data - General information
| Note on contact resistance | Approx. 3 mΩ contact resistance |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 2 |
Connection data - Connection 1
| Connection technology | PUSH WIRE® |
|---|---|
| Actuation type | Push-in |
| Conductor diameter | 0.8 mm |
| Strip length | 9 mm / 0.35 inches |
| Pole number | 2 |
| Connectable sheathed cable diameter | 5 … 7 mm |
| Conductor entry direction to mating direction | 0 ° |
Physical data
| Width | 14.1 mm / 0.555 inches |
|---|---|
| Height | 11.1 mm / 0.437 inches |
| Depth | 47.5 mm / 1.87 inches |
Mechanical data
| Technology | KNX |
|---|---|
| Use | KNX |
| Coding | F |
| Variable coding | No |
| Marking | 1+ 2- |
| Potential marking | 1+ 2- |
| Mating force of a plug-in connection | approx. 10 … 15 N |
| Retention force of a plug-in connection | Locked: > 80 N |
| Unmating force of a plug-in connection | Unlocked: approx. 15 … 20 N |
| Number of mating cycles | 200, without resistive load |
| Protection type | IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.) |
Plug-in connection
| Contact type (pluggable connector) | Female connector/socket |
|---|---|
| Connector (connection type) | for conductor |
| Mismating protection | Yes |
| Note on mismating protection | All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
| Locking lever | Can be retrofitted |
| Locking of plug-in connection | locking lever |
| Strain relief | strain relief housing |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Copper alloy; surface-treated |
| Contact plating | Tin |
| Fire load | 0.15 MJ |
| Connector color | light gray |
| Strain relief color | black |
| Weight | 5 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | CH |
| GTIN | 4045454267476 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-44-06-05 |
| eCl@ss 9.0 | 27-44-06-05 |
| ETIM 9.0 | EC002560 |
| ETIM 10.0 | EC002560 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
Other
| Technology | KNX |
|---|
