Description

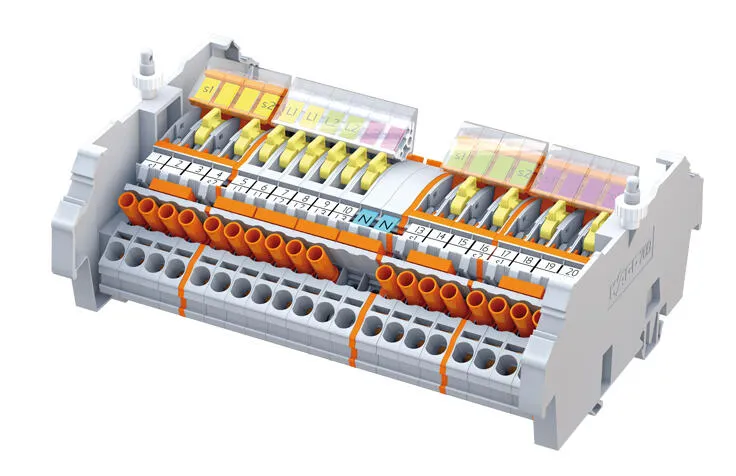

WAGO measure rail LPW 847-600/000-2000
Specification
Electrical data - Ratings per Current Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 500 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 30 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per Voltage Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Ratings (note) | Disconnect terminal blocks with item numbers 2007-8xxx are located in the voltage circuit. |
| Rated voltage (III / 3) | 500 V |
| Rated impulse withstand voltage (III/3) | 6 kV |
| Rated current | 30 A |
Electrical data - Voltage Signaling
| Power loss at IN = 1Â A (per terminal) | 0.001 |
|---|---|
| Power loss at IN = 5Â A (per terminal) | 0.025 |
Connection data - Connection: Current Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Connection data - Connection: Voltage Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Physical data
| Width | 200 mm |
|---|---|
| Height | 200 mm |
| Depth | 95 mm |
Material data
| Fire load | 11.557 MJ |
|---|---|
| Weight | 827.1 g |
Commercial data
| Product Group | 5 (Rails) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | PL |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | ea1f2bb6-df62-4e06-b82b-b8683e89e5ba |
| SCIP notification number (Belgium) | f9631a47-b1a2-4647-9fcf-536378663166 |
| SCIP notification number (Bulgaria) | 08f37599-7f18-45e0-898a-cf2a99713503 |
| SCIP notification number (Czech Republic) | 659cd06e-caa0-41c3-bff1-ea2fac9839f2 |
| SCIP notification number (Denmark) | 4472f08a-ca3e-4226-9687-3a81f5cce033 |
| SCIP notification number (Finland) | 0258aa88-7067-4e31-bade-7305cb7bacee |
| SCIP notification number (France) | 624edc83-044f-401a-bd45-99acf5a1090f |
| SCIP notification number (Germany) | 0363162e-ac40-426a-a7ab-81f65acfab9e |
| SCIP notification number (Hungary) | 54524f27-d7fe-40e7-ab33-4b5321e93336 |
| SCIP notification number (Italy) | ba759b2e-ff98-4713-b704-fffadd6c63ef |
| SCIP notification number (Netherlands) | 9db067d0-0dda-4a8f-a599-ce3262e38d7a |
| SCIP notification number (Poland) | 37459742-3d87-43be-a479-e4f2be89878d |
| SCIP notification number (Romania) | dc3d356e-55a4-484f-8d69-8c9245bb133e |
| SCIP notification number (Sweden) | 18aeb303-fadc-45d6-bb3b-562d6e27fba7 |
