Wago 847-567/000-010

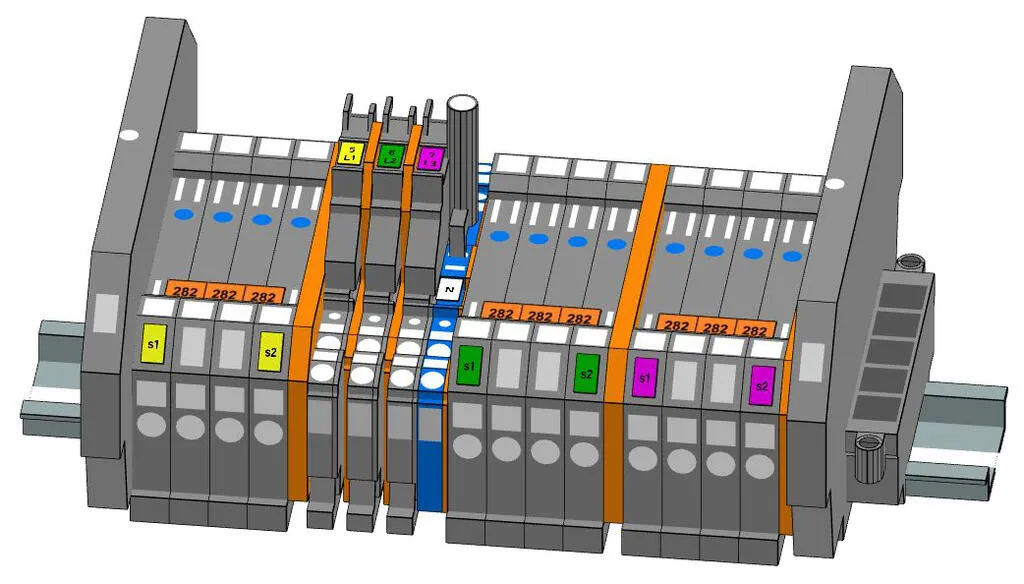

WAGO measure rail LPW 847-567/000-010
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WAGO measure rail LPW 847-567/000-010
Specification
Electrical data - Ratings per Current Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 400 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 41 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per Voltage Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Rated voltage (III / 3) | 250 V |
| Rated impulse withstand voltage (III/3) | 6 kV |
| Rated current | 3.15 A |
Electrical data - Voltage Signaling
| Power loss at IN = 1Â A (per terminal) | 0.001 |
|---|---|
| Power loss at IN = 5Â A (per terminal) | 0.025 |
Electrical data - Ratings per Fuse Cartridge
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Rated voltage (III / 3) | 250 V |
| Rated current | 3.15 A |
| Time-current characteristic of the fuse cartridge | F |
| Fuse cartridge short-circuit capability | 1.5 kA |
Connection data - Connection: Current Circuit
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
Connection data - Connection: Voltage Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Strip length | 10 … 12 mm / 0.39 … 0.47 inches |
Physical data
| Width | 210 mm |
|---|---|
| Height | 140 mm |
| Depth | 81 mm |
Material data
| Fire load | 7.132 MJ |
|---|---|
| Weight | 603.3 g |
Commercial data
| Product Group | 5 (Rails) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | PL |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 41660856-deca-43b1-b7f6-13778a18eff4 |
| SCIP notification number (Belgium) | 967739ad-9c4b-4c3b-a440-3cbf867f16fa |
| SCIP notification number (Bulgaria) | 124984c8-f734-4d9a-a27b-52b751a52c90 |
| SCIP notification number (Czech Republic) | 2eaa2c6b-2d63-4809-8c39-2973cd31731f |
| SCIP notification number (Denmark) | 20002722-153c-4eab-879c-dc83a9ffc94a |
| SCIP notification number (Finland) | 75346767-5bbc-471b-a42d-c5dab3becaa4 |
| SCIP notification number (France) | 0550c38e-bfd4-4013-bb1f-2f37ee935640 |
| SCIP notification number (Germany) | e8007196-0a6b-4cf6-b6a9-db2ad231b1a1 |
| SCIP notification number (Hungary) | 14bd8d2f-e20a-49a0-a469-ac2d4ba4ac03 |
| SCIP notification number (Italy) | c2ae51f9-1dcc-4b85-a477-bbc1c920972c |
| SCIP notification number (Netherlands) | ddec5a9f-7e97-4bd9-bd49-b4a5906a3747 |
| SCIP notification number (Poland) | 313904c3-6b1e-4816-85f3-a4b0cb1557b5 |
| SCIP notification number (Romania) | 3b04136a-bb40-4054-99d2-7db7b3f417a2 |
| SCIP notification number (Sweden) | d72c26d7-937f-4c34-beb2-d9f22df88829 |
