Description

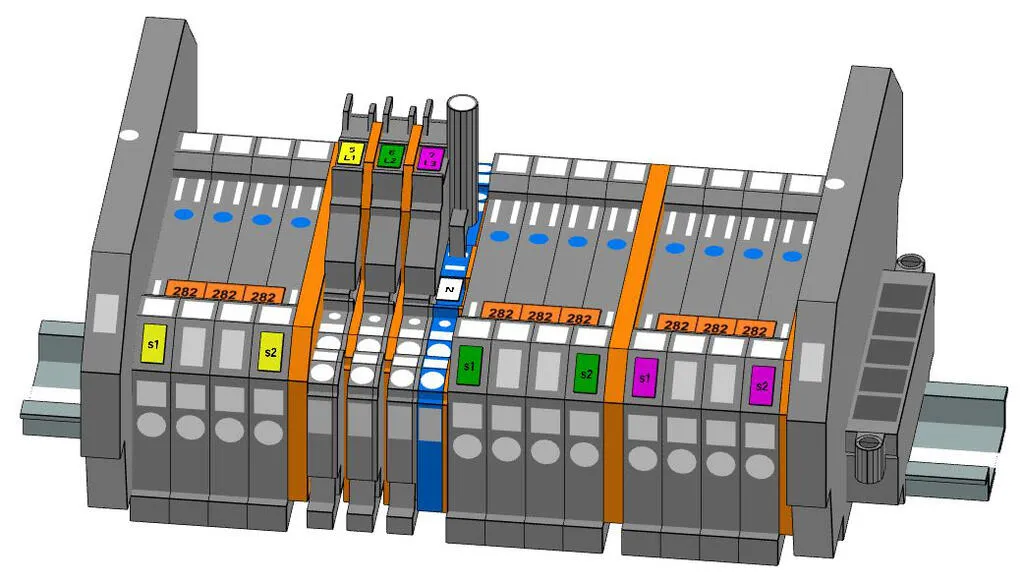

WAGO measure rail LPW 847-567/000-020
Specification
Electrical data - Ratings per Current Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 400 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 41 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per Voltage Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Rated voltage (III / 3) | 250 V |
| Rated impulse withstand voltage (III/3) | 6 kV |
| Rated current | 6.3 A |
Electrical data - Voltage Signaling
| Power loss at IN = 1Â A (per terminal) | 0.001 |
|---|---|
| Power loss at IN = 5Â A (per terminal) | 0.025 |
Electrical data - Ratings per Fuse Cartridge
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Rated voltage (III / 3) | 250 V |
| Rated current | 6.3 A |
| Time-current characteristic of the fuse cartridge | F |
| Fuse cartridge short-circuit capability | 1.5 kA |
Connection data - Connection: Current Circuit
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
Connection data - Connection: Voltage Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Strip length | 10 … 12 mm / 0.39 … 0.47 inches |
Physical data
| Width | 210 mm |
|---|---|
| Height | 140 mm |
| Depth | 81 mm |
Material data
| Fire load | 7.099 MJ |
|---|---|
| Weight | 603.4 g |
Commercial data
| Product Group | 5 (Rails) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | PL |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | ebd4f4ac-0b57-44a0-95f1-92fb0a5708a6 |
| SCIP notification number (Belgium) | 79e52186-fe16-47ff-9da8-379250cca83f |
| SCIP notification number (Bulgaria) | 56f14ba6-91c2-49bc-b139-0ec574592e8c |
| SCIP notification number (Czech Republic) | 7f2c574c-7a58-4185-9cbf-64d96f725e64 |
| SCIP notification number (Denmark) | 8e59421e-e885-45a1-aab4-b43dd3b15aaa |
| SCIP notification number (Finland) | 67b2ba6b-4d46-48f4-84ba-39f38d76e375 |
| SCIP notification number (France) | 7acb5bfc-9683-4f8c-a74b-42343c3d7641 |
| SCIP notification number (Germany) | 35126d23-6da8-4c12-b867-d86ef543f34b |
| SCIP notification number (Hungary) | 6ab4d47e-f107-4ea0-8c93-10e9e4ffed04 |
| SCIP notification number (Italy) | 118e2be8-4227-4299-a792-ed47a234b48e |
| SCIP notification number (Netherlands) | 4c9f1db7-6ac0-42a8-aa0b-60fe89131a34 |
| SCIP notification number (Poland) | 2eea4691-99fc-4c30-81af-8c128cf3acbf |
| SCIP notification number (Romania) | 492e2398-c923-45f4-960b-931c90e17883 |
| SCIP notification number (Sweden) | 14c7b9e0-74b3-4514-92ad-693f1cf9e028 |
