Wago 847-566

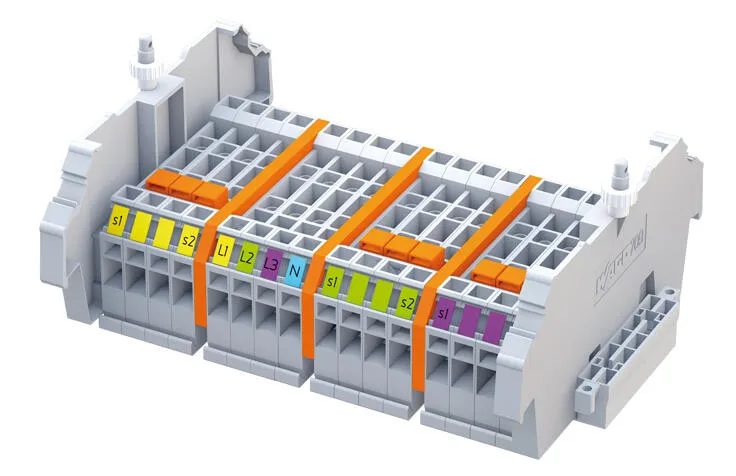

WAGO measure rail LPW 847-566
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WAGO measure rail LPW 847-566
Specification
Electrical data - Ratings per Current Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 400 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 41 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per Voltage Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Ratings (note) | Disconnect terminal blocks with item numbers 282-13x are located in the voltage circuit. |
| Rated voltage (III / 3) | 500 V |
| Rated impulse withstand voltage (III/3) | 6 kV |
| Rated current | 30 A |
Electrical data - Voltage Signaling
| Power loss at IN = 1Â A (per terminal) | 0.001 |
|---|---|
| Power loss at IN = 5Â A (per terminal) | 0.025 |
Connection data - Connection: Current Circuit
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
Connection data - Connection: Voltage Circuit
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 6 mm² / 20 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
Physical data
| Width | 210 mm |
|---|---|
| Height | 140 mm |
| Depth | 81 mm |
Material data
| Fire load | 6.96 MJ |
|---|---|
| Weight | 630.9 g |
Commercial data
| Product Group | 5 (Rails) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | PL |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 21f0aeb9-31e3-45ce-abeb-67f08f50317b |
| SCIP notification number (Belgium) | 75bd7aa6-5e5f-42ea-9207-83a5cc3d29ee |
| SCIP notification number (Bulgaria) | 070a49a8-c569-4227-a47a-e7057af78560 |
| SCIP notification number (Czech Republic) | 0c68f5ac-a12a-4152-92e9-a1df14b5a156 |
| SCIP notification number (Denmark) | f8807e05-97ee-4d0b-bbe2-38e6e5267e62 |
| SCIP notification number (Finland) | 0f043eb7-93d0-468b-917a-f88ef251e1c0 |
| SCIP notification number (France) | 8dcda85d-5a14-4f82-a5cd-867259898adf |
| SCIP notification number (Germany) | 3bc3dc00-ce6f-418f-8182-9b6bd50aeb7f |
| SCIP notification number (Hungary) | 6b5e4159-7473-4c3b-ba9a-6ea9e5d27827 |
| SCIP notification number (Italy) | ea3eb70f-617d-4d22-af29-d17872c80b58 |
| SCIP notification number (Netherlands) | 27350c51-870a-4aeb-9d21-6e431da83b38 |
| SCIP notification number (Poland) | 1048dc30-3cdf-44b1-8d28-57203b2d527f |
| SCIP notification number (Romania) | e4551335-fa27-4c16-b03a-172313ee3672 |
| SCIP notification number (Sweden) | c0e13e13-17de-41e9-8888-7b4aeddcdec5 |
