Wago 847-105/100-1000

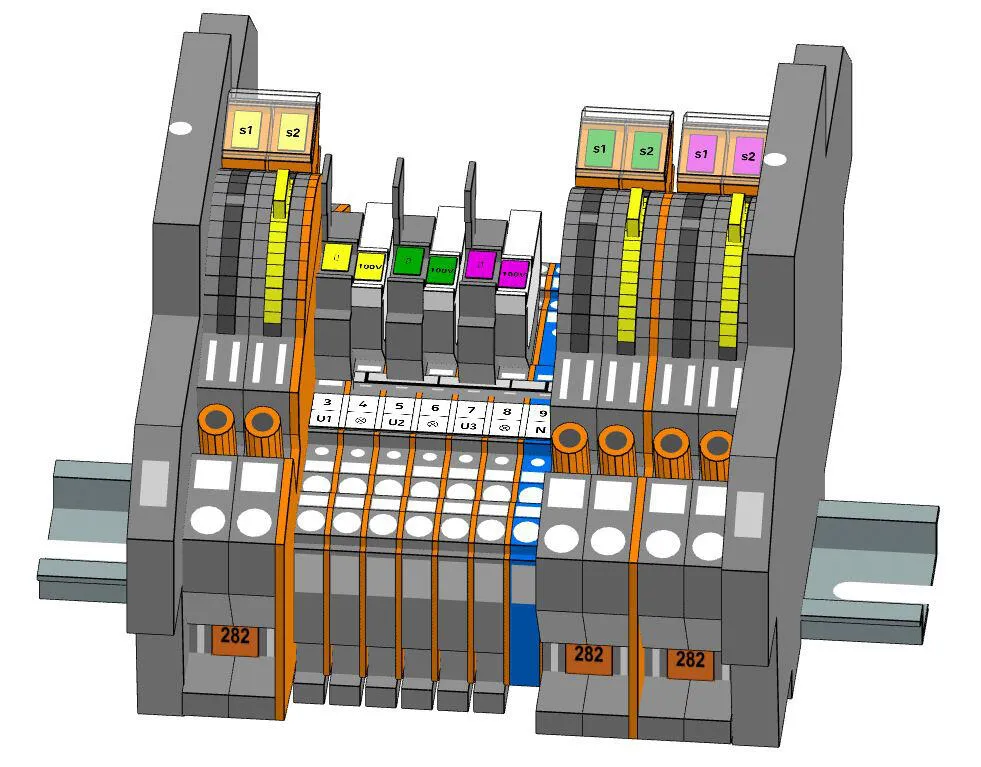

WAGO measure rail LPW 847-105/100-1000
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WAGO measure rail LPW 847-105/100-1000
Specification
Electrical data - Ratings per Current Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 500 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 30 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per Voltage Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Ratings (note) | Disconnect terminal blocks with item numbers 282-86x are located in the voltage circuit. |
| Rated voltage (III / 3) | 100 V |
| Rated impulse withstand voltage (III/3) | 6 kV |
| Rated current | 3.15 A |
Electrical data - Voltage Signaling
| Power loss at IN = 1Â A (per terminal) | 0.001 |
|---|---|
| Power loss at IN = 5Â A (per terminal) | 0.025 |
| Operation status indicator | 100 VAC |
| Power consumption of the display modules at rated voltage (per module) | 0.03 |
Electrical data - Ratings per Fuse Cartridge
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Rated voltage (III / 3) | 250 V |
| Rated current | 3.15 A |
| Time-current characteristic of the fuse cartridge | F |
| Fuse cartridge short-circuit capability | 1.5 kA |
Connection data - Connection: Current Circuit
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
Connection data - Connection: Voltage Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Strip length | 10 … 12 mm / 0.39 … 0.47 inches |
Physical data
| Width | 164 mm |
|---|---|
| Height | 170 mm |
| Depth | 105 mm |
Material data
| Fire load | 8.512 MJ |
|---|---|
| Weight | 639.5 g |
Commercial data
| PU (SPU) | 1 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | PL |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 5cfffe89-0294-4392-ad6d-b5617591411a |
| SCIP notification number (Belgium) | ec3ca45b-11ff-4d78-a4be-2ab822e433ec |
| SCIP notification number (Bulgaria) | 393b2d26-5eec-4346-96bb-89cc8f2b4052 |
| SCIP notification number (Czech Republic) | ddbe0f95-c937-43d6-826a-1fb10fa45883 |
| SCIP notification number (Denmark) | 87f0444c-4304-4764-928c-9d822e995462 |
| SCIP notification number (Finland) | d6ab1b41-86f5-4fcd-9408-59862db28dd9 |
| SCIP notification number (France) | 8da429d9-be6d-434b-bdd5-8e3b4ba5c678 |
| SCIP notification number (Germany) | 09857a76-325d-456a-9c34-6484cdc0900f |
| SCIP notification number (Hungary) | a37e7494-44a2-4004-a97d-3da5cc536750 |
| SCIP notification number (Italy) | 21496fb5-1eb1-4078-b889-a60b3bcb6893 |
| SCIP notification number (Netherlands) | 2827b58d-b87d-481b-a61c-23fb463b0acb |
| SCIP notification number (Poland) | 5f2a392f-cc01-4182-8c56-fcec9c401083 |
| SCIP notification number (Romania) | eaa2e788-0c2d-4b36-a0bf-ac7bea19f16c |
| SCIP notification number (Sweden) | 009ae62a-831b-4998-ae2c-75ec037a1d2f |
