Wago 847-1051/000-2100

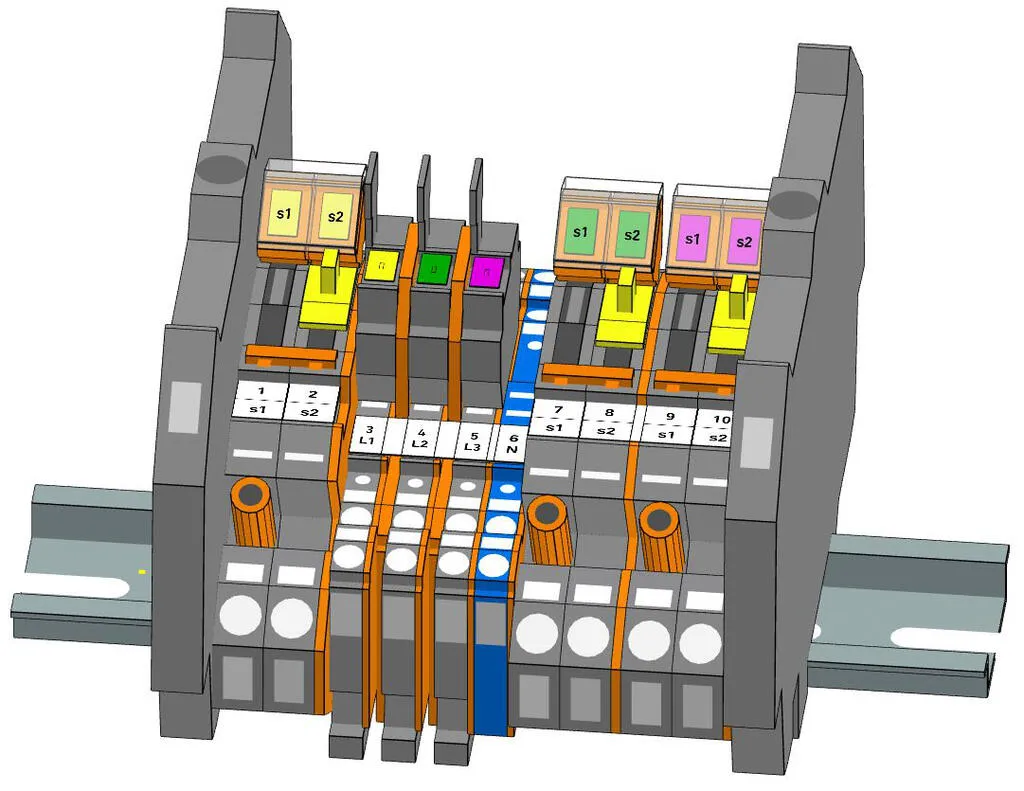

WAGO measure rail LPW 847-1051/000-2100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WAGO measure rail LPW 847-1051/000-2100
Specification
Electrical data - Ratings per Current Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 500 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 30 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per Voltage Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Ratings (note) | Disconnect terminal blocks with item numbers 2007-8xxx are located in the voltage circuit. |
| Rated voltage (III / 3) | 250 V |
| Rated impulse withstand voltage (III/3) | 6 kV |
| Rated current | 6.3 A |
Electrical data - Voltage Signaling
| Power loss at IN = 1Â A (per terminal) | 0.001 |
|---|---|
| Power loss at IN = 5Â A (per terminal) | 0.025 |
Electrical data - Ratings per Fuse Cartridge
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Rated voltage (III / 3) | 250 V |
| Rated current | 6.3 A |
| Time-current characteristic of the fuse cartridge | FF |
| Fuse cartridge short-circuit capability | 30 kA |
Connection data - Connection: Current Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Connection data - Connection: Voltage Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Strip length | 10 … 12 mm / 0.39 … 0.47 inches |
Physical data
| Width | 163 mm |
|---|---|
| Height | 155 mm |
| Depth | 95 mm |
Material data
| Fire load | 6.285 MJ |
|---|---|
| Weight | 498.1 g |
Commercial data
| PU (SPU) | 1 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | PL |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 8e3ccaa6-29c8-44d5-a0b5-3730cb24d651 |
| SCIP notification number (Belgium) | 583bde20-3e3f-41aa-bb4c-8a6a451aa2cf |
| SCIP notification number (Bulgaria) | ec1d954c-6205-4f1d-b4ef-a98e3dee05e2 |
| SCIP notification number (Czech Republic) | 03b3a65c-f4fd-43bb-b216-95e041d7f16e |
| SCIP notification number (Denmark) | 8c01e149-ef10-40fa-ad59-3a0ea5d65fee |
| SCIP notification number (Finland) | b493e7f6-17b6-4ce3-aae1-b6fddaf5ae8a |
| SCIP notification number (France) | 8385a8f5-e6c0-4b88-8e5a-bcf039937e70 |
| SCIP notification number (Germany) | a4a2ea16-8340-4146-8121-bb54219de021 |
| SCIP notification number (Hungary) | 65f1df8c-620b-4b69-94c9-99ac9067751d |
| SCIP notification number (Italy) | d9e57c8e-d447-494a-a1bf-88843f595170 |
| SCIP notification number (Netherlands) | 08f578d9-3ba2-47e6-8202-0dcfdc219d91 |
| SCIP notification number (Poland) | 9096e804-680c-4f89-9d2d-629648a9f9e7 |
| SCIP notification number (Romania) | c6aade68-7bf1-4179-b67e-9c3f3ef63d23 |
| SCIP notification number (Sweden) | a8fbc475-2f1e-499e-9026-8b08d0fe0159 |
