Wago 847-104/000-2000

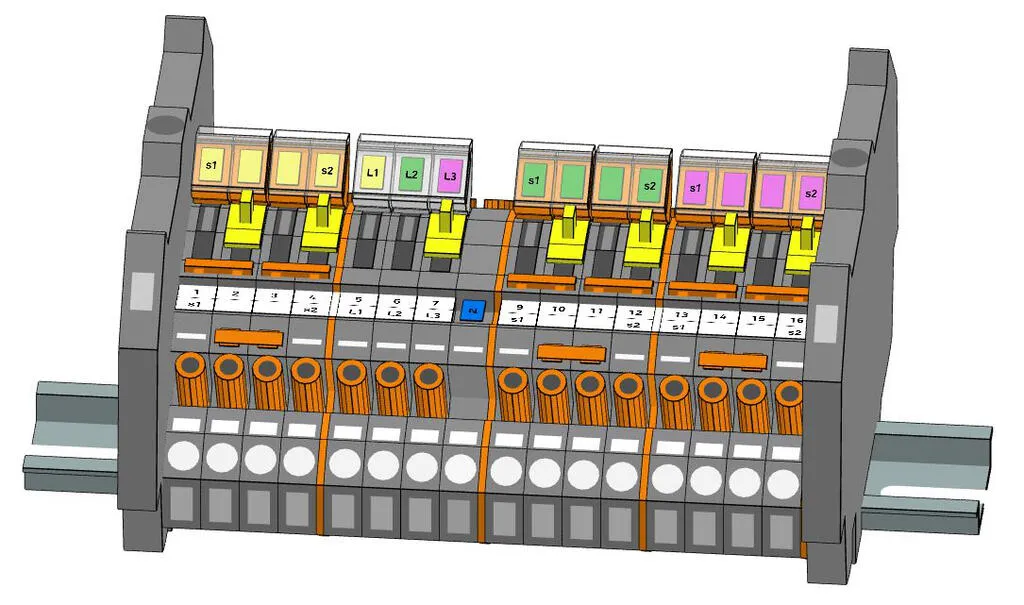

WAGO measure rail LPW 847-104/000-2000
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WAGO measure rail LPW 847-104/000-2000
Specification
Electrical data - Ratings per Current Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 500 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 30 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per Voltage Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Ratings (note) | Disconnect terminal blocks with item numbers 2007-8xxx are located in the voltage circuit. |
| Rated voltage (III / 3) | 500 V |
| Rated impulse withstand voltage (III/3) | 6 kV |
| Rated current | 30 A |
Electrical data - Voltage Signaling
| Power loss at IN = 1Â A (per terminal) | 0.001 |
|---|---|
| Power loss at IN = 5Â A (per terminal) | 0.025 |
Connection data - Connection: Current Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Connection data - Connection: Voltage Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Physical data
| Width | 211 mm |
|---|---|
| Height | 155 mm |
| Depth | 95 mm |
Material data
| Fire load | 9.68 MJ |
|---|---|
| Weight | 794.3 g |
Commercial data
| Product Group | 5 (Rails) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 6502b912-547d-4c0e-9eac-838ebeaf5ab8 |
| SCIP notification number (Belgium) | f4fbd7ef-18f3-42c1-8ee9-fe1a431475dc |
| SCIP notification number (Bulgaria) | 766b7b8d-e7b6-49fa-8e8b-c1ecd60c1b50 |
| SCIP notification number (Czech Republic) | 623ed195-f82f-4ede-91ab-a7f2b4ff5a8a |
| SCIP notification number (Denmark) | 04fcf131-6947-41c0-a9ca-660a5dde51be |
| SCIP notification number (Finland) | db921f7d-25c7-4c41-8646-448ec1527ef7 |
| SCIP notification number (France) | 099e6376-2f6c-4dc4-9780-4fdf92eae553 |
| SCIP notification number (Germany) | f8ce34e8-dc1e-44ef-abeb-a33f2cce4bc2 |
| SCIP notification number (Hungary) | e93a16fa-2208-4208-bf4e-ce5ddbc76703 |
| SCIP notification number (Italy) | dfe96056-5a08-42c0-a94e-a94bf519ad74 |
| SCIP notification number (Netherlands) | 43426e3c-227c-40f2-936b-eb6baec0e873 |
| SCIP notification number (Poland) | 8c908eaf-64b8-47aa-a728-1608306f6c29 |
| SCIP notification number (Romania) | 5dc47f57-df6f-4987-92fc-2a76a142bdc2 |
| SCIP notification number (Sweden) | 0c8bf0a8-80c3-4453-ba75-166abd294adb |
