Description

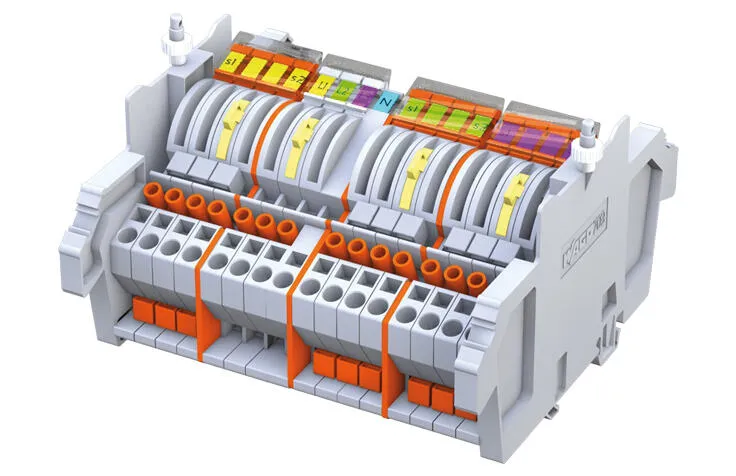

WAGO measure rail LPW 847-104
Specification
Electrical data - Ratings per Current Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 500 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 30 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per Voltage Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Ratings (note) | Disconnect terminal blocks with item numbers 282-86x are located in the voltage circuit. |
| Rated voltage (III / 3) | 500 V |
| Rated impulse withstand voltage (III/3) | 6 kV |
| Rated current | 30 A |
Electrical data - Voltage Signaling
| Power loss at IN = 1Â A (per terminal) | 0.001 |
|---|---|
| Power loss at IN = 5Â A (per terminal) | 0.025 |
Connection data - Connection: Current Circuit
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
Connection data - Connection: Voltage Circuit
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 6 mm² / 20 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
Physical data
| Width | 210 mm |
|---|---|
| Height | 170 mm |
| Depth | 105 mm |
Material data
| Fire load | 13.894 MJ |
|---|---|
| Weight | 1103.3 g |
Commercial data
| Product Group | 5 (Rails) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | PL |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 3412725d-fc10-43ad-853f-73a910452931 |
| SCIP notification number (Belgium) | 81e6f631-e2c4-47c3-a4b0-3e4e4e8f08fe |
| SCIP notification number (Bulgaria) | 96da62a7-0723-451b-b2e1-ab9eb5f2000e |
| SCIP notification number (Czech Republic) | 0f0f8eae-9b25-44fe-a470-5ac03f6505bc |
| SCIP notification number (Denmark) | 18caed0a-ce86-4aab-bcb4-913e0931013c |
| SCIP notification number (Finland) | 15f461ed-1b2e-45f1-a9c9-0703c6550e35 |
| SCIP notification number (France) | f23c5f7f-e2e4-4d8b-9e6c-4c9c26733320 |
| SCIP notification number (Germany) | 9278b2e5-65ac-4b0f-95fd-8ea9f9f9c15b |
| SCIP notification number (Hungary) | f60866f1-757b-44c4-a3e4-7699b941b471 |
| SCIP notification number (Italy) | df41f199-5636-4a8d-9bef-6ae5597d4fc1 |
| SCIP notification number (Netherlands) | 2eba6fcc-7cd7-436d-a076-85e7ce83d67f |
| SCIP notification number (Poland) | 32720e9b-4409-45b2-9e30-2e692ba608e5 |
| SCIP notification number (Romania) | fa1d229b-8282-47af-b903-c03dea61b7d9 |
| SCIP notification number (Sweden) | 2f2ae539-9cc0-4c8d-849b-17ecb0d014d7 |
