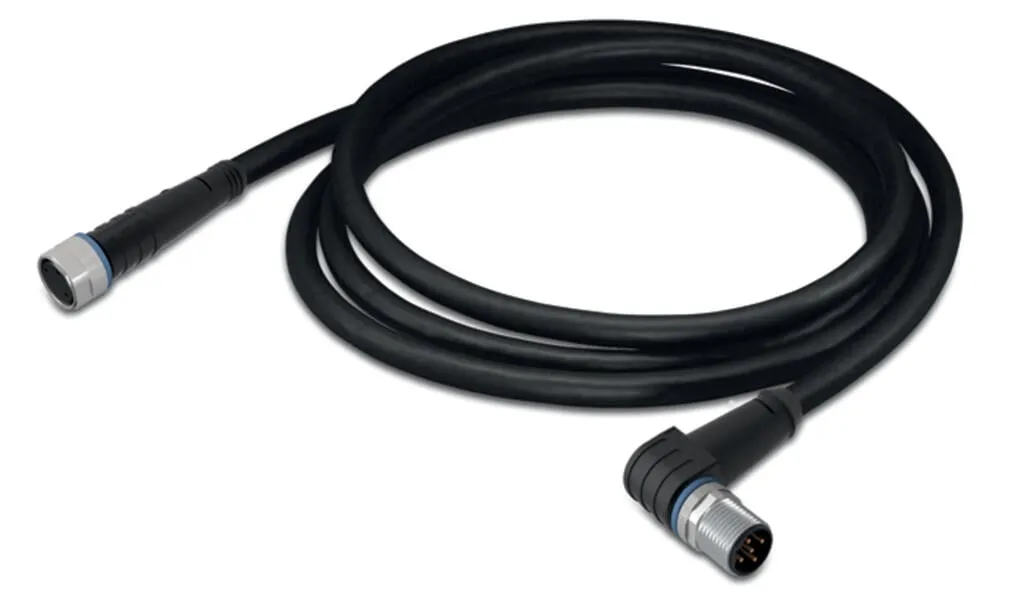

Wago 756-5508/040-020
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Specification
Technical data - General information
| Operating voltage | AC/DC 60 V |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

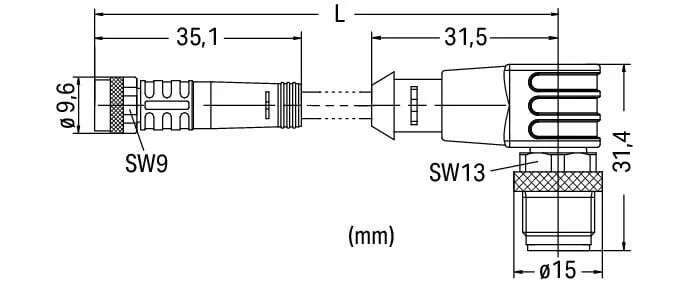

Technical data - Connector
| Connection type | M8 socket - M12 plug |
|---|---|
| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 … 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918975964 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 9525e59f-6d7c-4862-a7f7-0a3b24e20704 |
| SCIP notification number (Belgium) | a0d278ab-4022-4556-ae1c-2feaf7865ade |
| SCIP notification number (Bulgaria) | 38946b5c-5521-41a9-a425-c781d78bf16d |
| SCIP notification number (Czech Republic) | f24bb182-a7fe-421f-94ce-dbc67228d026 |
| SCIP notification number (Denmark) | 788578a2-84f1-4023-a6c9-237b772499eb |
| SCIP notification number (Finland) | 96a3280d-d710-4491-8a72-da9242f330ad |
| SCIP notification number (France) | fa5143fe-9482-44d4-8d36-fc90e7d87033 |
| SCIP notification number (Germany) | fb606ca2-bbd2-438d-901c-2b7e444b56ed |
| SCIP notification number (Hungary) | 009fe00e-6377-46cc-b461-f6bc5fd2b523 |
| SCIP notification number (Italy) | a03c0eac-28c4-4c28-a0a3-f1dfc17b4a4b |
| SCIP notification number (Netherlands) | e0009612-3fae-4f34-970e-3d5ea4a60ee8 |
| SCIP notification number (Poland) | 7038b7df-2dc2-4298-84b8-0e6963c0c9a0 |
| SCIP notification number (Romania) | 3f57e699-3419-4050-9aeb-69442b95435f |
| SCIP notification number (Sweden) | 3c220214-a0a0-44cd-bb1d-1b21bc53f0cc |
