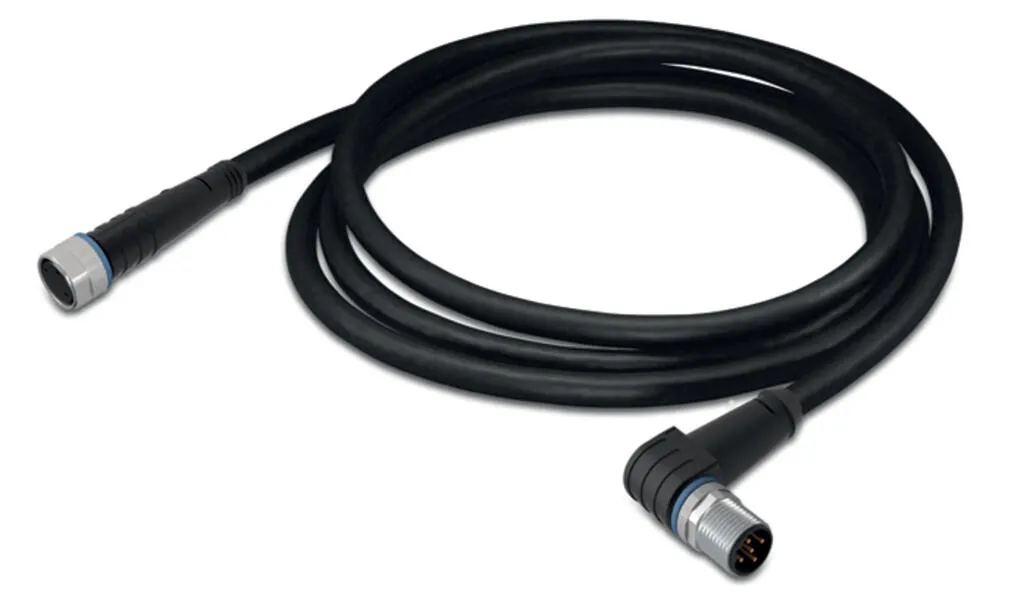

Wago 756-5508/030-020
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Specification
Technical data - General information
| Operating voltage | AC/DC 60 V |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

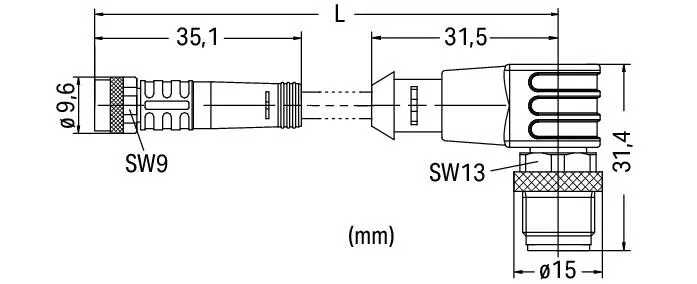

Technical data - Connector
| Connection type | M8 socket - M12 plug |
|---|---|
| Pole number | 3 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 … 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918975865 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121629 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | cdcd36fa-e043-48d1-86b1-7d088e11391a |
| SCIP notification number (Belgium) | 3b361d82-7ee9-48f3-82a6-46b6bf084d27 |
| SCIP notification number (Bulgaria) | c58807b4-c2e4-419e-bb0e-e0ce6889aad7 |
| SCIP notification number (Czech Republic) | 791f9ebe-43fa-4cf3-b816-cf391f5083ba |
| SCIP notification number (Denmark) | 779cc121-a031-47a4-b081-0c73f1bbeb5a |
| SCIP notification number (Finland) | 21c7298e-a79a-45e6-bf1f-adc691e1a7f9 |
| SCIP notification number (France) | 22562bff-7881-42d4-bc40-92a662b83fe0 |
| SCIP notification number (Germany) | 116d66cc-6b04-4fe3-bbc5-ebd0a3e99043 |
| SCIP notification number (Hungary) | cb1e0c28-f7dd-4aae-9fa1-52a40e71a138 |
| SCIP notification number (Italy) | e54e275f-e473-40b0-a674-2e64d3642fa9 |
| SCIP notification number (Netherlands) | 6b59abac-a54c-491e-9a43-81dae65aab56 |
| SCIP notification number (Poland) | 4590199a-6f7d-4747-8ba1-b3b233bba2c5 |
| SCIP notification number (Romania) | c5ad0583-54a7-425d-9a36-3ad420e06077 |
| SCIP notification number (Sweden) | 73494baa-fa71-4bcf-a1b8-58c191a7fb80 |
