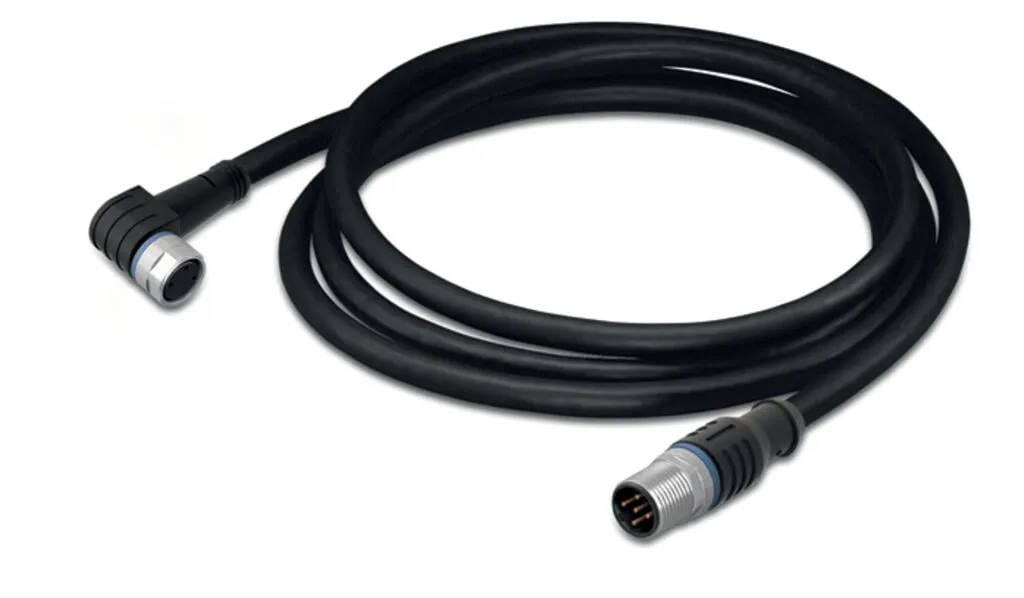

Wago 756-5509/030-010
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Specification
Technical data - General information
| Operating voltage | AC/DC 60 V |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

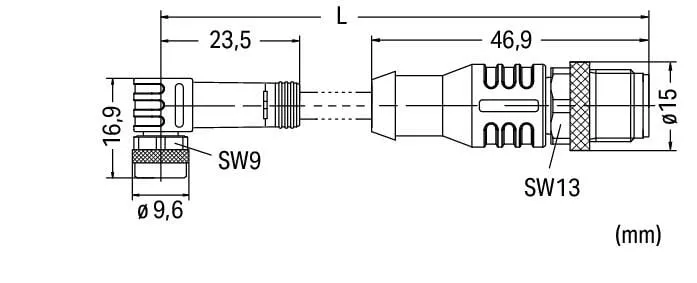

Technical data - Connector
| Connection type | M8 socket - M12 plug |
|---|---|
| Pole number | 3 |
| Cable connection direction to mating direction | 90 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 … 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918975889 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 561fe41b-99c2-4f1a-86ef-0b8f5103a8cc |
| SCIP notification number (Belgium) | c8aba4ce-2328-4df9-9487-2ab33550b644 |
| SCIP notification number (Bulgaria) | 66b9ac39-606c-4899-b62d-6d3b53ceec82 |
| SCIP notification number (Czech Republic) | 9f40e29e-0dd6-4986-93f7-0a33983e5885 |
| SCIP notification number (Denmark) | bceed0f2-8181-4f51-87fc-7589e6cf54ce |
| SCIP notification number (Finland) | 81cfd8db-aa80-4035-a9f1-d39bf14c5bfe |
| SCIP notification number (France) | d77de56f-ac4b-4def-ae74-d3138f8efb88 |
| SCIP notification number (Germany) | e7b7ec88-b979-47e2-8ce5-daf6f3e0873f |
| SCIP notification number (Hungary) | 2f2bdb8c-75b3-47fd-9b73-84332884263e |
| SCIP notification number (Italy) | acd49bdc-6f13-43d2-ae72-810b16321c9a |
| SCIP notification number (Netherlands) | b83d5002-cb1e-404a-b6fd-7c00c7d61c2e |
| SCIP notification number (Poland) | 6dbb2d88-aa77-4ab9-a168-dda9843ce5ba |
| SCIP notification number (Romania) | f9d4e4d5-f003-47af-b228-c270dc0f5ad8 |
| SCIP notification number (Sweden) | 87b769ef-459f-4c7e-80b3-da2798f71a80 |
