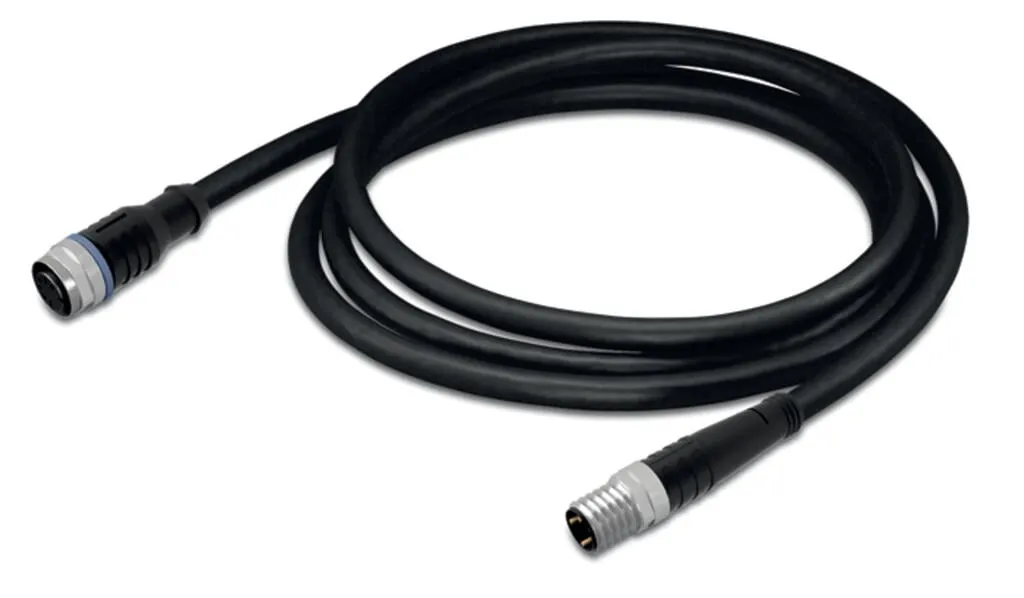

Wago 756-5501/030-010
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Specification
Technical data - General information
| Operating voltage | AC/DC 60 V |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector
| Connection type | M12 Socket - M8 plug |
|---|---|
| Pole number | 3 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 … 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918974684 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 98cf4118-f81a-4062-a889-63539c2dbf06 |
| SCIP notification number (Belgium) | 24243dff-4202-4369-a880-b8cbd6cc0aed |
| SCIP notification number (Bulgaria) | 2635ff3b-af4a-4154-a96b-d51bda417471 |
| SCIP notification number (Czech Republic) | 47b46ff3-0066-4f5f-ad6b-ee984cdea7e0 |
| SCIP notification number (Denmark) | 22de74fd-05b3-4a02-ae34-6c09ff3eabee |
| SCIP notification number (Finland) | 22ddcf47-337b-4a3a-8371-a75cdc9302d4 |
| SCIP notification number (France) | 06161d12-006f-493f-ba4e-96507dcfdd0e |
| SCIP notification number (Germany) | e9535486-f128-4adf-a7c0-8189ba782ec3 |
| SCIP notification number (Hungary) | 5c69f847-91df-45bc-a6ac-3153ec4f9b90 |
| SCIP notification number (Italy) | 38a353ba-56df-4c40-93e1-00e263c023e3 |
| SCIP notification number (Netherlands) | 8dcdd381-344d-4a2b-8dde-9b5bc88e25a8 |
| SCIP notification number (Poland) | 01039212-efb8-4142-bd2a-3b35c6a6e443 |
| SCIP notification number (Romania) | c9de60e8-ac18-43ca-9007-e6f40390404e |
| SCIP notification number (Sweden) | db90c58d-997a-4bc2-a4f7-d44f909ffbdc |
