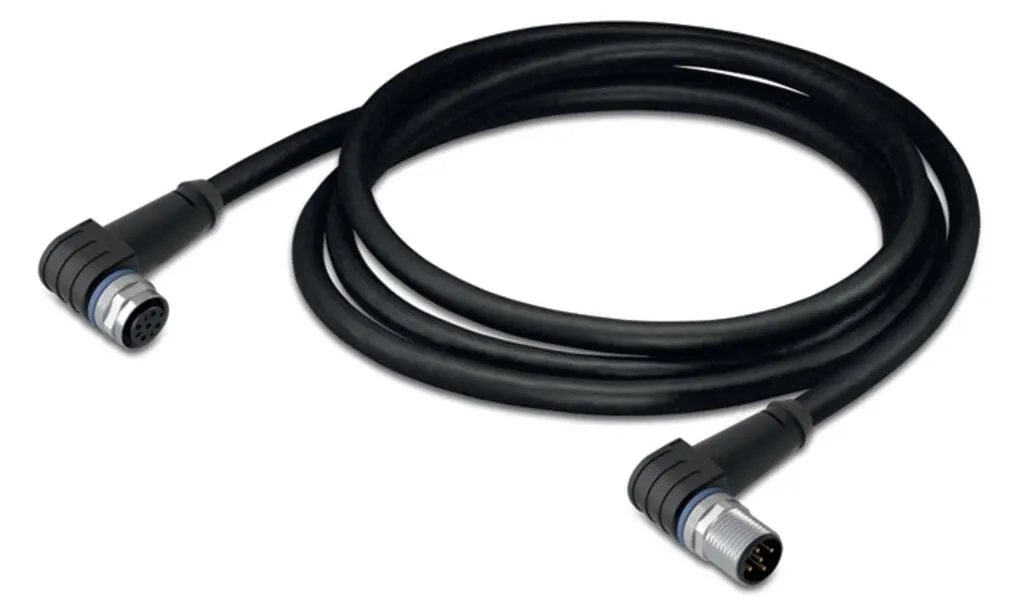

Wago 756-5404/060-020
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | ≥1.6 x 1010 Ω/km |
| Contact resistance | 10 mΩ |
| Conductor resistance | < 57 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | Fixed: >4xØ; Flexible: >7.5xØ |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 10 |
| Travel speed (max.) | 4 |
| Travel path (horizontal) max. | 15 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
|---|---|

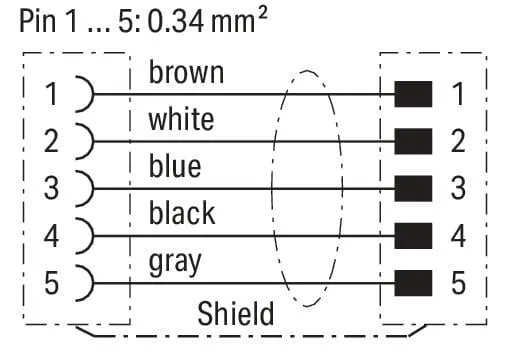

| Type code | Li9YC11Y-HF 5x0.34 mm² |
| Overall shield | Tinned copper braid, optical coverage approx. 80 % |
| Conductor configuration | Bare copper wire (7 x 0.25 mm) |
| Conductor insulation | Halogen-free PE |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

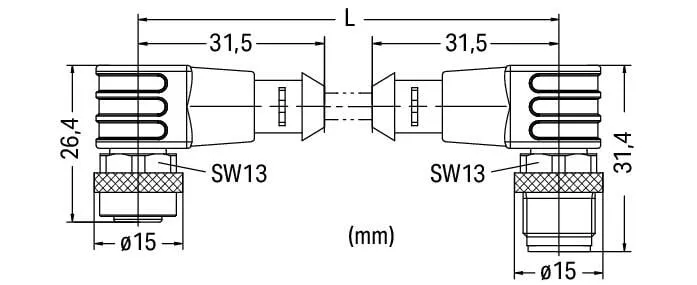

Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 5 |
| Cable connection direction to mating direction | 90 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4045454724702 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | ff8944e5-4a65-49f0-a47c-0775b10aebc6 |
| SCIP notification number (Belgium) | 3f49cc5f-28a0-4c5f-98bc-a5878b0d256b |
| SCIP notification number (Bulgaria) | f6fe30e8-1f8a-4ec1-9885-43fa6233b60e |
| SCIP notification number (Czech Republic) | 141129cc-4de7-49fb-bf9f-0e784ec208da |
| SCIP notification number (Denmark) | 3171fcc2-00de-42c6-ad53-4958e3bca716 |
| SCIP notification number (Finland) | f289d055-d7b3-429a-ba64-1f59cfa346e8 |
| SCIP notification number (France) | c79b07a5-2d01-432d-8688-163f9931ae17 |
| SCIP notification number (Germany) | 3a24307e-85be-4125-ba40-d77dac1b6351 |
| SCIP notification number (Hungary) | 287b8396-7d2f-40c6-8729-dddb51fa5389 |
| SCIP notification number (Italy) | 2723788b-5656-47b5-bac1-ce08c8925463 |
| SCIP notification number (Netherlands) | 69bc10ae-35a4-4610-8289-2985d443e1c6 |
| SCIP notification number (Poland) | ba1cf5a8-37a6-458f-8fc1-9c4f867bfeb5 |
| SCIP notification number (Romania) | 7981dc10-48a3-48ac-be1c-7cfaa994c116 |
| SCIP notification number (Sweden) | 417a84d6-cab5-4f59-808a-764ab6faaa9c |
