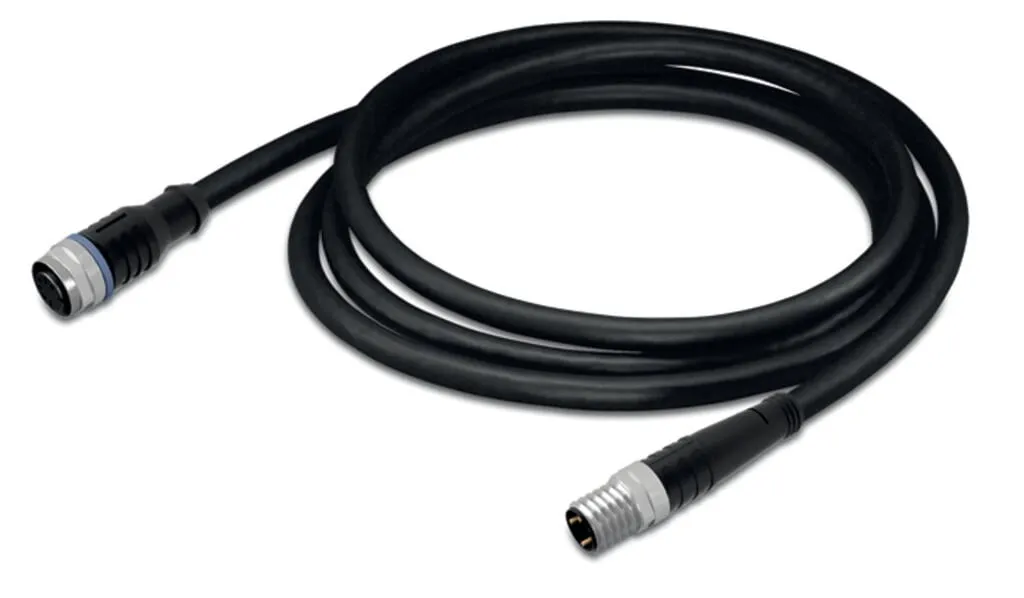

Wago 756-5501/030-020
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Specification
Technical data - General information
| Operating voltage | AC/DC 60 V |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector
| Connection type | M12 Socket - M8 plug |
|---|---|
| Pole number | 3 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 … 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918974707 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 28b4f8b9-466e-4a94-b0f3-3cc632496740 |
| SCIP notification number (Belgium) | dad34075-221c-42f5-8275-167e4bfbb31d |
| SCIP notification number (Bulgaria) | 3d9952ad-0358-467e-808d-bc7575dabe62 |
| SCIP notification number (Czech Republic) | 79e315e3-3768-4e77-99ac-f91240f5e5c0 |
| SCIP notification number (Denmark) | 506c97ad-a4d1-41e2-9f1f-eda6dbb5cb59 |
| SCIP notification number (Finland) | 19055bf1-5362-4f44-be9d-e5725be2965e |
| SCIP notification number (France) | 1de0e735-d2a2-4e50-9ac8-a5fe69333f3a |
| SCIP notification number (Germany) | a5ab1c5a-f9c2-4756-9dcf-fe0bb901f149 |
| SCIP notification number (Hungary) | cf0b6c71-1708-4ea1-85a3-293372a69270 |
| SCIP notification number (Italy) | c470a957-682e-4ce6-886e-08458e247a55 |
| SCIP notification number (Netherlands) | db999b91-31c8-4cba-a808-6ffd5e70dbd7 |
| SCIP notification number (Poland) | 58ec3fee-c202-4c96-bca6-999972845e89 |
| SCIP notification number (Romania) | 55378b15-da03-43cc-b46c-620f316a2153 |
| SCIP notification number (Sweden) | ee5619c5-d4c0-4464-8f76-355a53fe4910 |
