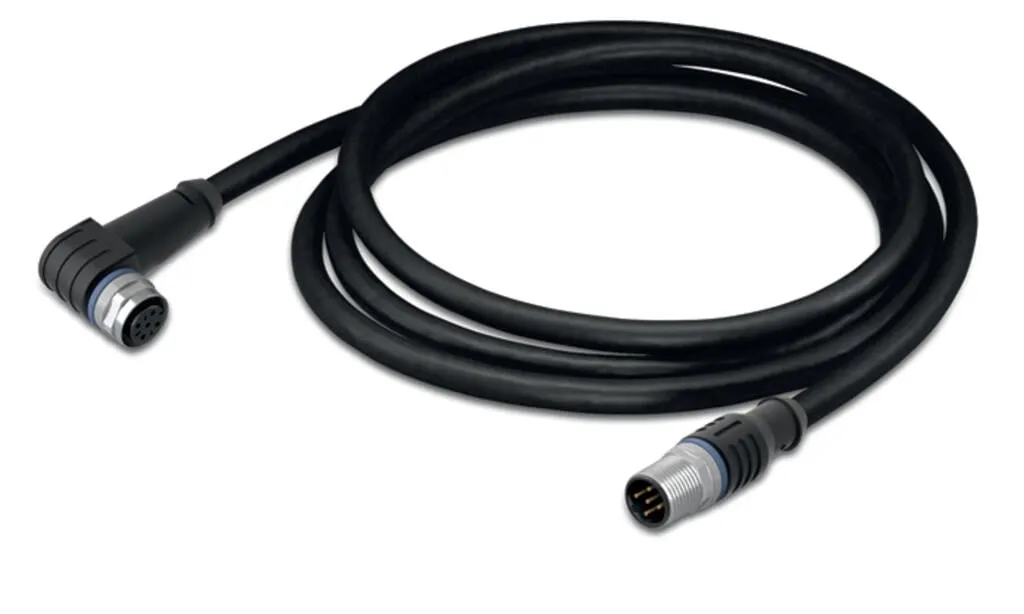

Wago 756-5403/040-010
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

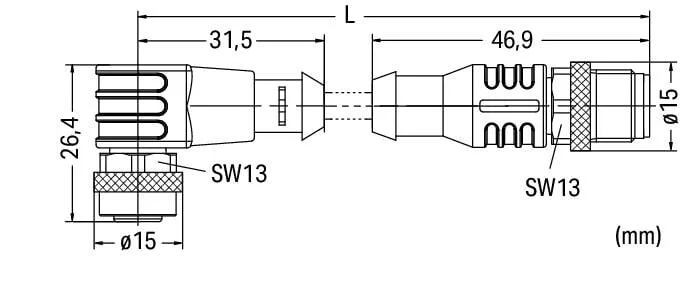

Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 4 |
| Cable connection direction to mating direction | 90 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918975551 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 4c3e4569-fd62-499c-bd56-09a79d4967f1 |
| SCIP notification number (Belgium) | 98951683-d5d5-4aad-8c92-cc829f278a5c |
| SCIP notification number (Bulgaria) | ed9fe69e-54ca-44ac-afdc-6bd555918aac |
| SCIP notification number (Czech Republic) | b568b021-3cc9-444e-a320-7c8d14ab3d45 |
| SCIP notification number (Denmark) | 84de3c94-cb6c-47d9-b788-25745b7c7d06 |
| SCIP notification number (Finland) | b1cabc41-1a3a-46f1-9451-8d502c6087ca |
| SCIP notification number (France) | f8b228a6-eb8f-4076-83f2-062664d7c781 |
| SCIP notification number (Germany) | 4bdbf50c-ee89-4cc0-b74f-48c0cc4f4fad |
| SCIP notification number (Hungary) | 6a57618b-0d53-4cf1-b3eb-75ca6073d2f8 |
| SCIP notification number (Italy) | 5e1a7501-2f10-47fe-9963-b2196cc18633 |
| SCIP notification number (Netherlands) | 95567c8a-f09d-4f4a-b2a4-ef6be689d62b |
| SCIP notification number (Poland) | a8c31d7a-7605-48b0-a777-1b5c09fdf702 |
| SCIP notification number (Romania) | 8008fe6a-551b-4b9e-872b-0aa1be65bf89 |
| SCIP notification number (Sweden) | fc238269-1327-49aa-a697-ba5c3613efa7 |
