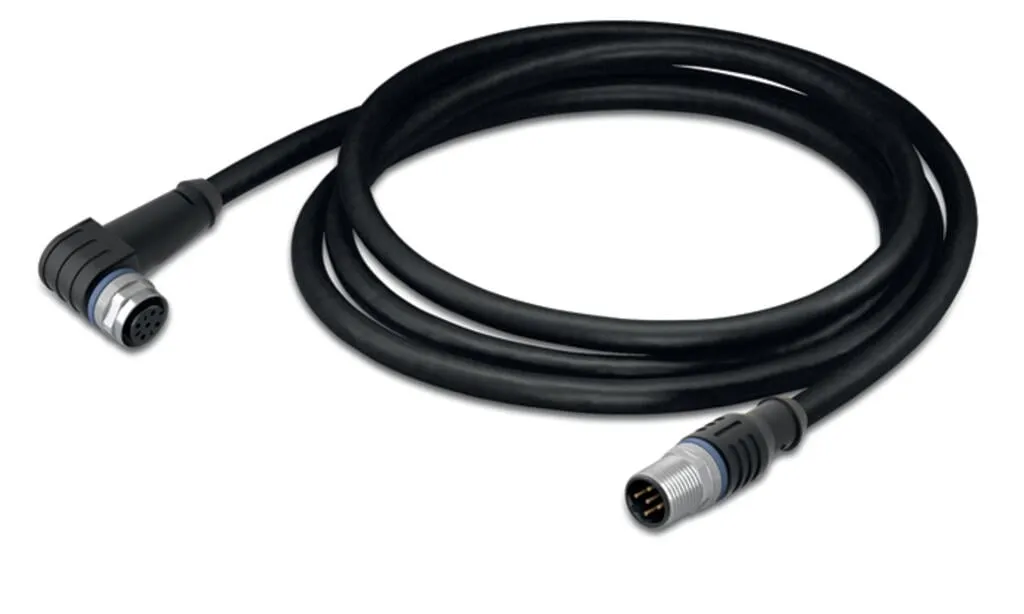

Wago 756-5403/030-010
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

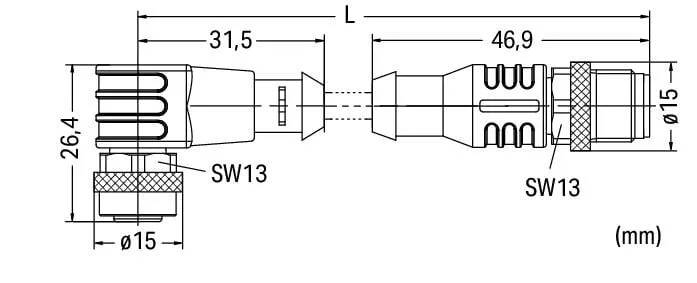

Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 3 |
| Cable connection direction to mating direction | 90 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975087 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 7d1ed19b-0677-478d-977c-ddeedd0168c9 |
| SCIP notification number (Belgium) | a3791437-4307-435c-ae45-12670c1e3f0a |
| SCIP notification number (Bulgaria) | d6ffe3c6-b573-44c0-999c-6f05f74d6001 |
| SCIP notification number (Czech Republic) | 70cb34cc-14ea-4bcc-8f02-91be369bf8fb |
| SCIP notification number (Denmark) | 1971a284-5916-4f63-aeb4-699eea981d80 |
| SCIP notification number (Finland) | 81c53e6b-cebd-4de2-96ab-078bf91b27d8 |
| SCIP notification number (France) | 70dfdd2a-9aed-4b09-bee2-0ffa15c0d9e1 |
| SCIP notification number (Germany) | aff415f2-2d32-47c6-87e8-dfb2e1e07fce |
| SCIP notification number (Hungary) | 7fed89aa-31cb-428f-843a-c4a787902d81 |
| SCIP notification number (Italy) | 41583e6a-69a1-4d15-917b-8c49e83189d1 |
| SCIP notification number (Netherlands) | fddc784b-055a-4a05-a584-b8c9afe44db5 |
| SCIP notification number (Poland) | 368f9b29-86ef-4121-8538-2a8b5cd09f61 |
| SCIP notification number (Romania) | 4d2af3dd-6743-4d95-bd3e-3d254e6d9332 |
| SCIP notification number (Sweden) | 2b6e6c19-3ae9-4cda-aa80-ffdd24ae4ef1 |
