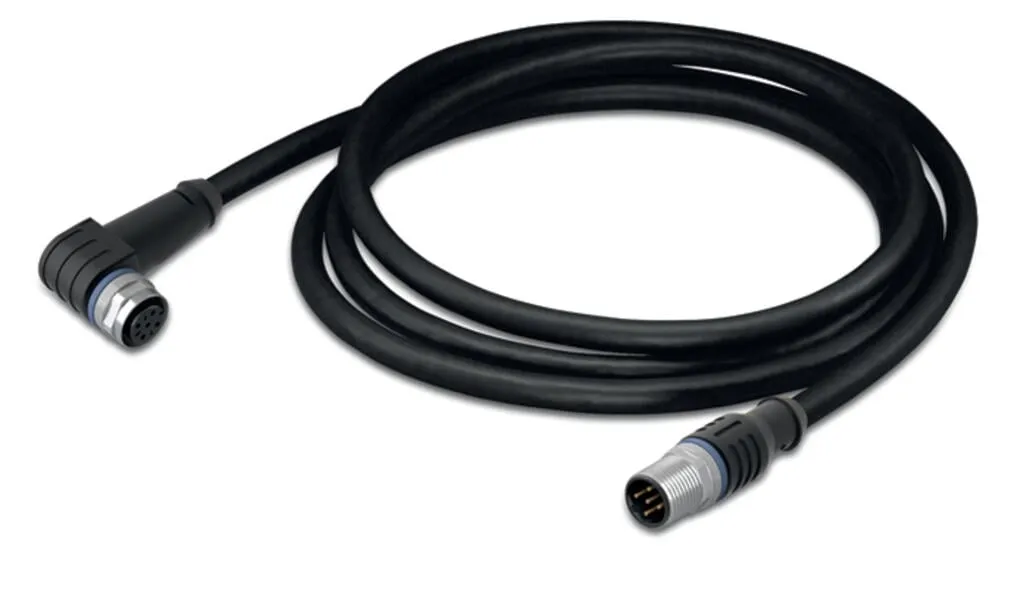

Wago 756-5403/040-020
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

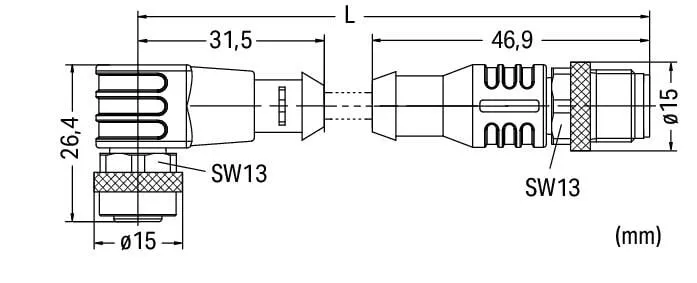

Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 4 |
| Cable connection direction to mating direction | 90 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975568 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | b6f17e80-45c9-47c7-85db-268b4631d677 |
| SCIP notification number (Belgium) | 4f26f4ff-e963-40bd-a191-863f02f2d990 |
| SCIP notification number (Bulgaria) | 488e801a-e741-4858-959c-062c230bad3f |
| SCIP notification number (Czech Republic) | 7140d62b-172c-4c39-831b-53c6bde48d2c |
| SCIP notification number (Denmark) | 1c75e161-fb2b-4346-bfb6-90615900462d |
| SCIP notification number (Finland) | 4a94a67b-ff8f-4f09-8083-1212cd5acce4 |
| SCIP notification number (France) | fbef07f1-740c-4936-b99f-ed78568d2c23 |
| SCIP notification number (Germany) | a9def6a1-5b3e-45e7-a25c-9d1cc1d64dc2 |
| SCIP notification number (Hungary) | e7e9713d-029b-43f1-876a-8450a88df37e |
| SCIP notification number (Italy) | f12c302c-75b3-4e43-a6b0-20d5d2965f5b |
| SCIP notification number (Netherlands) | 3d5788fb-f68f-4692-ae85-5a196edf6e10 |
| SCIP notification number (Poland) | 9abac9d6-c0b4-4348-85d1-311a2619b3c8 |
| SCIP notification number (Romania) | 8e3b6ca2-4248-44ab-b7f3-d94b94c2e97a |
| SCIP notification number (Sweden) | 779a52fe-9ed8-4048-a6cd-77e239018ad1 |
