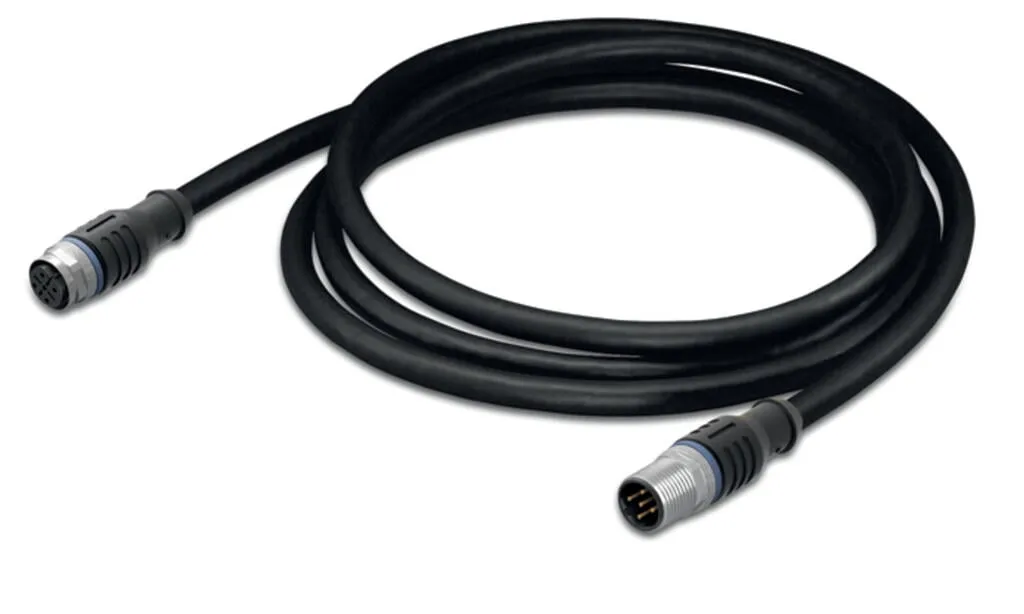

Wago 756-5401/040-020
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975520 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | b6424334-ae9a-4962-8c9d-d1b31506c1cd |
| SCIP notification number (Belgium) | 4f1eded9-bdd1-4fa0-be96-51a5964748f4 |
| SCIP notification number (Bulgaria) | 93270d10-883d-4ef8-83ee-fb9c7cc4753d |
| SCIP notification number (Czech Republic) | 47260a0b-d1cf-45b2-b3ac-2b44ffb9aaa1 |
| SCIP notification number (Denmark) | 977ffbde-8b03-4dc4-88d1-72464cf3d006 |
| SCIP notification number (Finland) | f4891b32-d08b-4b4e-b31a-e0bca7894e13 |
| SCIP notification number (France) | e0f81532-5bca-42ef-9a38-0d058d3c0a3a |
| SCIP notification number (Germany) | 7140522a-6be3-40bb-9804-9d65608d1087 |
| SCIP notification number (Hungary) | e8ec6be6-719a-46bb-b4be-9a09e80e1da1 |
| SCIP notification number (Italy) | c8024a24-c4a9-4f00-9ee5-6a783e72ab56 |
| SCIP notification number (Netherlands) | ccdf340f-cde7-4db9-be71-c413a8a2792c |
| SCIP notification number (Poland) | 1158b4f5-a8ed-46f9-a14c-bbe1b92d2459 |
| SCIP notification number (Romania) | b352e67a-36ab-4822-8f68-b5f3e0d4a909 |
| SCIP notification number (Sweden) | 5f88146e-ac3c-4d4e-a6d4-d2f80f23feed |
