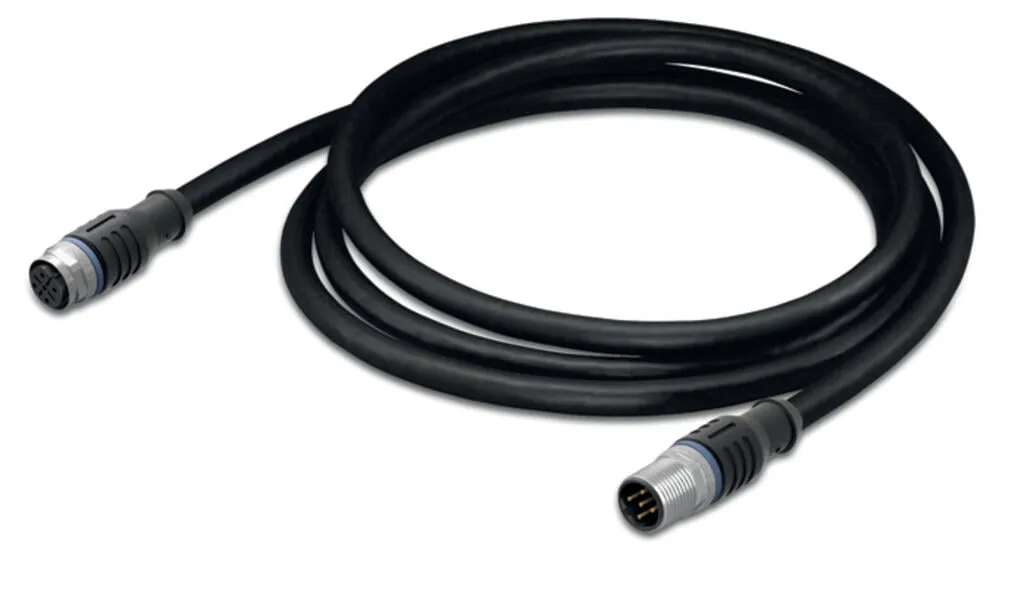

Wago 756-5401/040-010
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975513 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | eb7634dd-fa79-4779-a5bd-ca14587a007e |
| SCIP notification number (Belgium) | 1d77f12f-67c6-43a7-9235-69442b706ba2 |
| SCIP notification number (Bulgaria) | 477b7697-a7ab-40ad-8eaa-f3e77dd84083 |
| SCIP notification number (Czech Republic) | 15d18c53-f75a-4e8d-b40f-7250a7b66fc7 |
| SCIP notification number (Denmark) | 2b14c922-77b3-477b-9b5b-ebf0720b36ce |
| SCIP notification number (Finland) | 6a2ed875-bd43-4d35-a5dc-7814b387de3b |
| SCIP notification number (France) | 815b8a1a-738f-48f8-a0fb-5ff98a52124b |
| SCIP notification number (Germany) | 172f8cac-c895-440f-a231-3374fd4e5399 |
| SCIP notification number (Hungary) | 53da8a10-7555-4aa7-b005-0b1cf950652b |
| SCIP notification number (Italy) | a031dc03-b994-42e9-864a-a55b12e8592d |
| SCIP notification number (Netherlands) | 581cc857-1530-4af2-8b03-bf14c0785775 |
| SCIP notification number (Poland) | d105df27-252d-4a4d-8b64-fac98650a603 |
| SCIP notification number (Romania) | 8d9060b1-602b-44e9-b4cc-a70ef2b02da3 |
| SCIP notification number (Sweden) | 0706dba8-48a2-4cb0-90fe-702f889378da |
