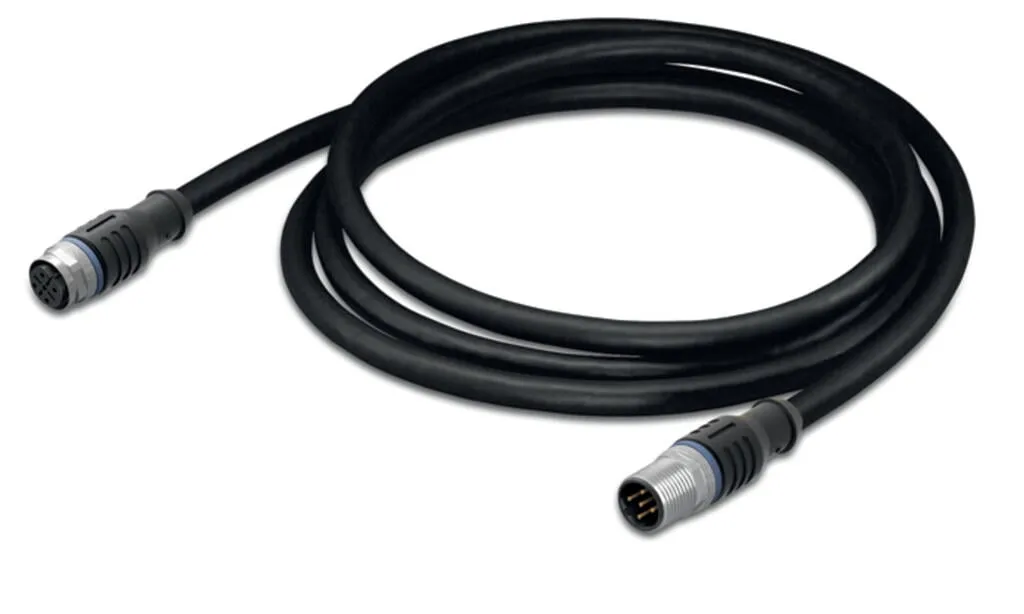

Wago 756-5401/050-010
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

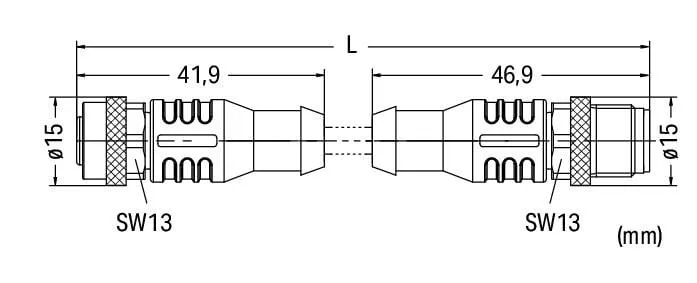

Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 5 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975605 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 9a5513d9-0e88-4c0f-b914-e3f34dffbf8b |
| SCIP notification number (Belgium) | 3318572d-82f4-4f2c-94ed-a8bb094d2f8b |
| SCIP notification number (Bulgaria) | 82fd0d23-d9bb-4945-8b3e-fa7739b8086e |
| SCIP notification number (Czech Republic) | 5a33a36e-59c0-4f1a-9e45-693750e51707 |
| SCIP notification number (Denmark) | 3281ee9b-5910-4817-85f7-8de39977b054 |
| SCIP notification number (Finland) | def7450e-ac5f-48ae-a6ac-47b5f9647cf1 |
| SCIP notification number (France) | 0f438831-1607-46ca-bd83-f708b01fa4a5 |
| SCIP notification number (Germany) | 32f5f688-590a-4981-9eb6-7247d9376bcd |
| SCIP notification number (Hungary) | c4595591-98dd-4f21-8e76-264c3b8733f8 |
| SCIP notification number (Italy) | 97e8ca52-fe0c-479e-ac71-8a768862f0ae |
| SCIP notification number (Netherlands) | d649d7be-4e15-4346-8d3c-c2f8f753ebf7 |
| SCIP notification number (Poland) | 926d8a72-98f2-4fcf-bb55-3465be4272a7 |
| SCIP notification number (Romania) | 2de21707-e5a1-4b25-a2b4-00936ed98059 |
| SCIP notification number (Sweden) | 56c2afb8-5792-4242-a48d-a59d5e110c53 |
