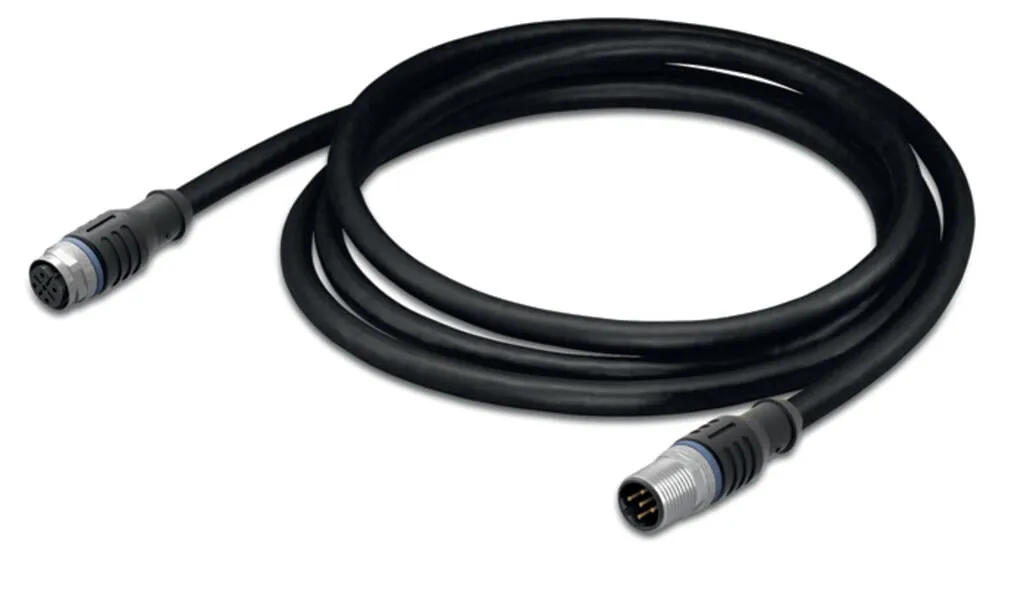

Wago 756-5401/030-020
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 3 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975032 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | e3d79ba4-ae4f-4f9b-83a8-783fb5bc50a8 |
| SCIP notification number (Belgium) | b49c322f-c8cf-4024-9e8f-51cfc524fdd3 |
| SCIP notification number (Bulgaria) | 04af4c82-b8cb-4ecc-90b6-122a71c9f599 |
| SCIP notification number (Czech Republic) | 56233e30-9d96-490e-80b5-d0fa7dfd3ab8 |
| SCIP notification number (Denmark) | e988bb48-2a05-4d84-89f8-df65a79bd84e |
| SCIP notification number (Finland) | 6e37917d-e7c3-4370-8095-85085c50525f |
| SCIP notification number (France) | 42a949bb-c996-456b-9af0-306bd98cceda |
| SCIP notification number (Germany) | 9bdeb5cc-5b00-457e-92ac-aee13e93359a |
| SCIP notification number (Hungary) | 70b15515-37ab-4cd6-aea2-9d9e672144ea |
| SCIP notification number (Italy) | 328a8eeb-4e61-45e7-aabe-598c65e6da76 |
| SCIP notification number (Netherlands) | 33bf6f85-7f79-42b2-884d-f0dfc53f34d9 |
| SCIP notification number (Poland) | 830b3ccf-4361-4ab7-99fc-a85edeeabd1a |
| SCIP notification number (Romania) | 3fe599eb-b88c-4e15-b69f-7e593bd32a28 |
| SCIP notification number (Sweden) | 0a25fa3e-7ea7-4306-9bf5-9c9f3b6fda0e |
