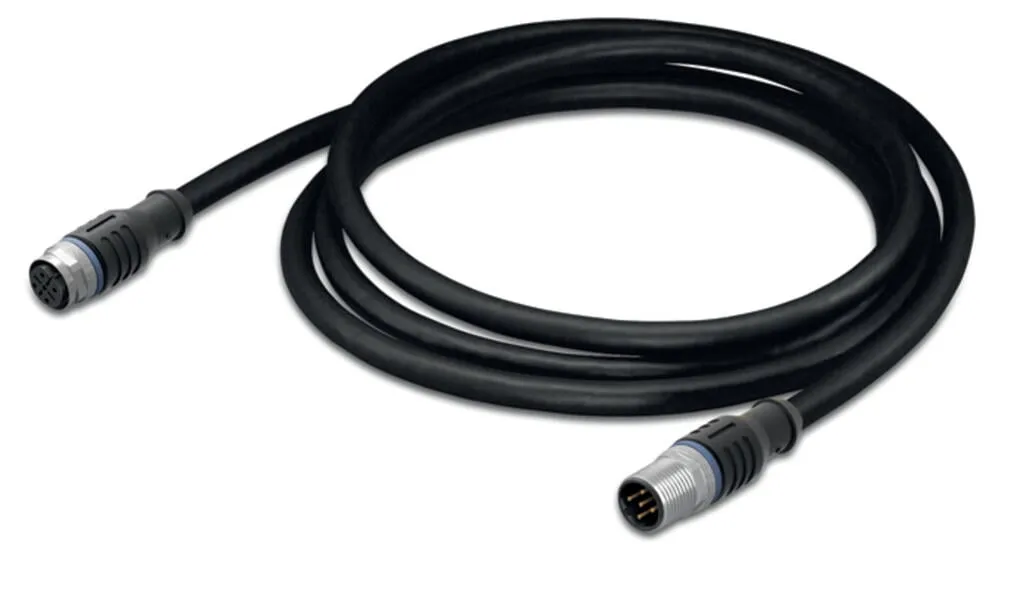

Wago 756-5401/030-010
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 3 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975025 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 6f6fa348-d70e-4081-9335-13850dbcc1c5 |
| SCIP notification number (Belgium) | 16ca77a3-f0de-408d-b997-23ce647ed23a |
| SCIP notification number (Bulgaria) | 8451327d-2f68-4370-bc04-fd9fb19e43c6 |
| SCIP notification number (Czech Republic) | 9db9f3ec-b763-4dd8-94bf-c3aa9ccb8441 |
| SCIP notification number (Denmark) | 01befc6d-537e-4a0f-a7c7-23e0713af850 |
| SCIP notification number (Finland) | 4872629b-8379-4d56-b6f8-4cf10d9a9f32 |
| SCIP notification number (France) | 46eb572c-ac79-41ad-b8ab-36683abf3f59 |
| SCIP notification number (Germany) | e4b3d21a-abde-46bf-a8d7-495b3a04a5e2 |
| SCIP notification number (Hungary) | ea5a7e2e-ceb7-41cb-8612-32c25b0c6458 |
| SCIP notification number (Italy) | 7edf4076-5a8a-4e17-bb31-c18b313e1be5 |
| SCIP notification number (Netherlands) | a2d76c7d-3218-4c12-a33b-589fa1eff987 |
| SCIP notification number (Poland) | acdcba0c-7735-4057-8f18-6080bcd03ace |
| SCIP notification number (Romania) | 57c4ecd5-dd8c-4739-91c4-e3b68784062c |
| SCIP notification number (Sweden) | bd9b5d7a-b535-44fd-91cd-630db0b5a490 |
