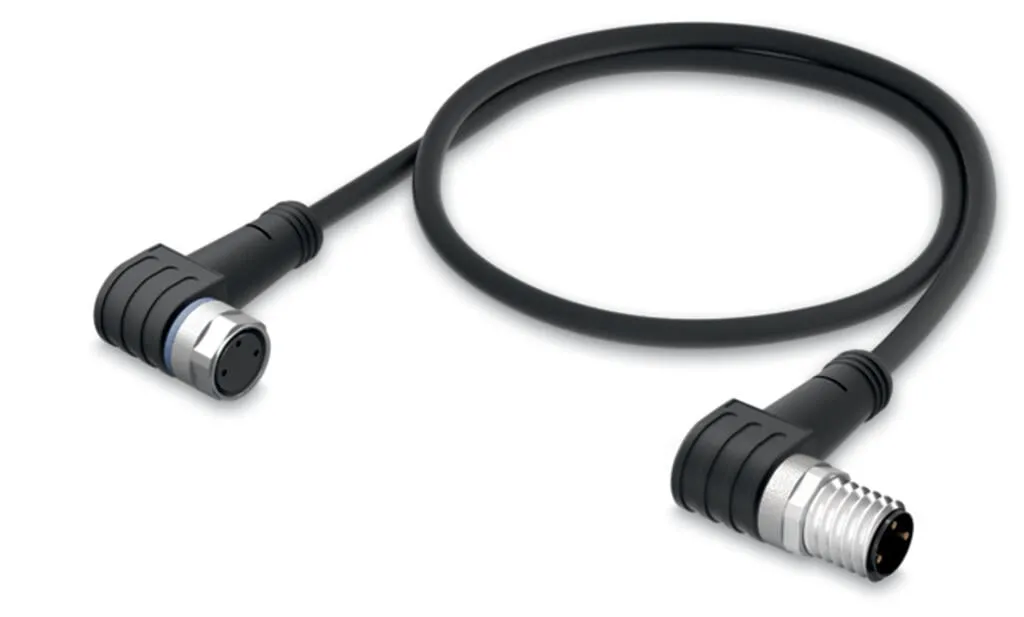

Wago 756-5204/030-010
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsGood resistance to microbes, hydrolysis, oil, chemicals and UV radiation. Good chemical resistance.Cable used: UL listed
Specification
Technical data - General information
| Operating voltage | AC/DC 60 V |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector
| Connection type | M8 socket - M8 plug |
|---|---|
| Pole number | 3 |
| Cable connection direction to mating direction | 90 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 Nm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918974646 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | e7317612-0d3e-4c20-a907-79bc9a0a7c01 |
| SCIP notification number (Belgium) | 608b8330-05f9-40cc-aa34-7feefad285d3 |
| SCIP notification number (Bulgaria) | 2a40f97d-4324-42b4-bd46-6447a378d5c1 |
| SCIP notification number (Czech Republic) | b1007a36-4dbd-43e8-9c91-fa2582b1d6a4 |
| SCIP notification number (Denmark) | 0a89de70-0f48-4b16-a82e-85dcbfa94328 |
| SCIP notification number (Finland) | c2322a8b-323e-424d-b890-1b04d1c7fbce |
| SCIP notification number (France) | 1beb6cae-bc92-4e90-9059-ce75de99f3b2 |
| SCIP notification number (Germany) | f963ea76-d9d7-4ac5-aef3-ce935a570905 |
| SCIP notification number (Hungary) | c892bbe9-5256-4bde-904f-bfeacfe00652 |
| SCIP notification number (Italy) | 57bb90c1-b12f-4c1b-96b2-1a4934b22a2b |
| SCIP notification number (Netherlands) | 6a714332-dfcd-49c5-9ddf-b54857636d5d |
| SCIP notification number (Poland) | 843a1b65-6a33-403e-9b4e-465c96b4633b |
| SCIP notification number (Romania) | 25560962-b20f-4461-b69a-861833fdad06 |
| SCIP notification number (Sweden) | 072fe30d-2586-40b1-bd93-b4b4281041c4 |
