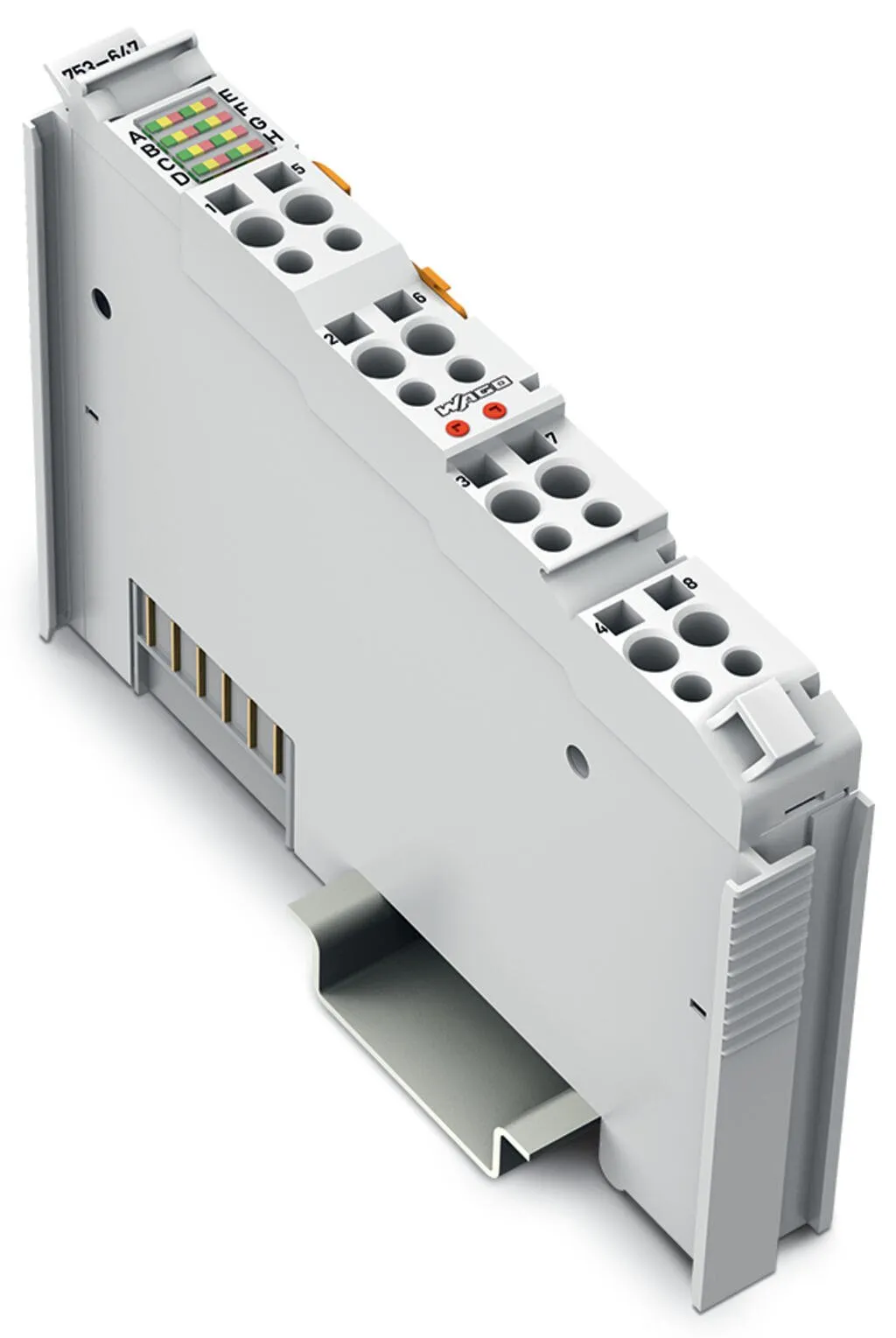

Wago 753-647

The DALI Multi-Master (753-647) is certified according to the IEC 62386 DALI-2 standard. This manufacturer-independent protocol ensures the interoperability of DALI devices in lighting applications.Just 12 mm wide, this module is used as a DALI interface in combination with WAGO’s 750 Series Controllers and Modules (e.g., BACnet, KNX, EnOcean, LON®, Modbus®).Each DALI Multi-Master supports 64 addresses for electronic control gears (ECGs) and 64 addresses for control devices (DALI multi sensors: Connection of max. 16 sensors recommended due to the cyclic transmission characteristics). Each DALI ECG can be assigned to 16 groups and 16 scenes. The DALI Multi-Master also offers 16 additional virtual groups on the DALI bus. Using the WAGO I/O System 750, DALI controllers can be seamlessly integrated into other building systems. Several DALI masters can connect to a single fieldbus node. The maximum number of modules that may be connected to a controller depends on the memory required by the application. The WAGO-I/O-PRO (CODESYS V2.3) or e!COCKPIT (based on CODESYS V3) programming software is used as the programming software for the fieldbus nodes. WAGO provides a comprehensive IEC-61131-3 library of function blocks, simplifying the creation of complex lighting applications.Alternatively, an “Easy Mode” allows lighting functions to be readily controlled without any complicated PLC programming. The comprehensive and easy-to-use WAGO DALI Configurator is available for commissioning and maintenance – it can either run as a stand-alone application or be called from the WAGO-I/O-CHECK (CODESYS V2.3) or e!COCKPIT Software (based on CODESYS V3).Two options are available to power to the DALI Multi-Master:1. Via 753-620 DALI Multi-Master DC/DC Converter for powering a single module.2. Via 787-2857 Power Supply for powering several 753-647 DALI Multi-Master Modules.
