Wago 753-531
This digital output module transmits control signals from the automation device to the connected actuators.The module has four output channels and four 0 V outputs, providing a direct connection to fo…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

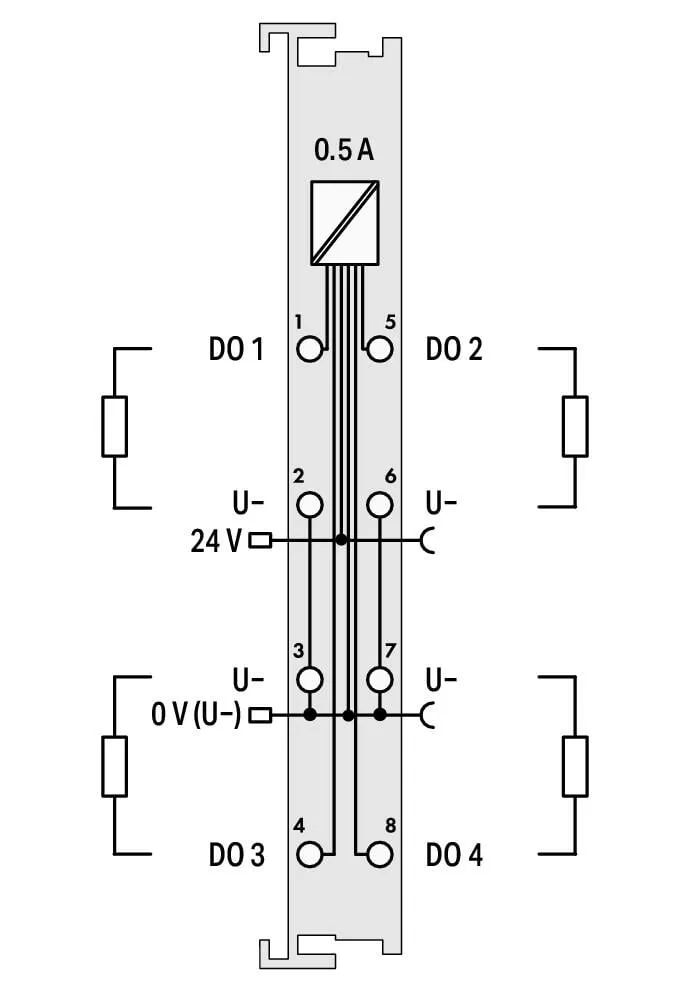

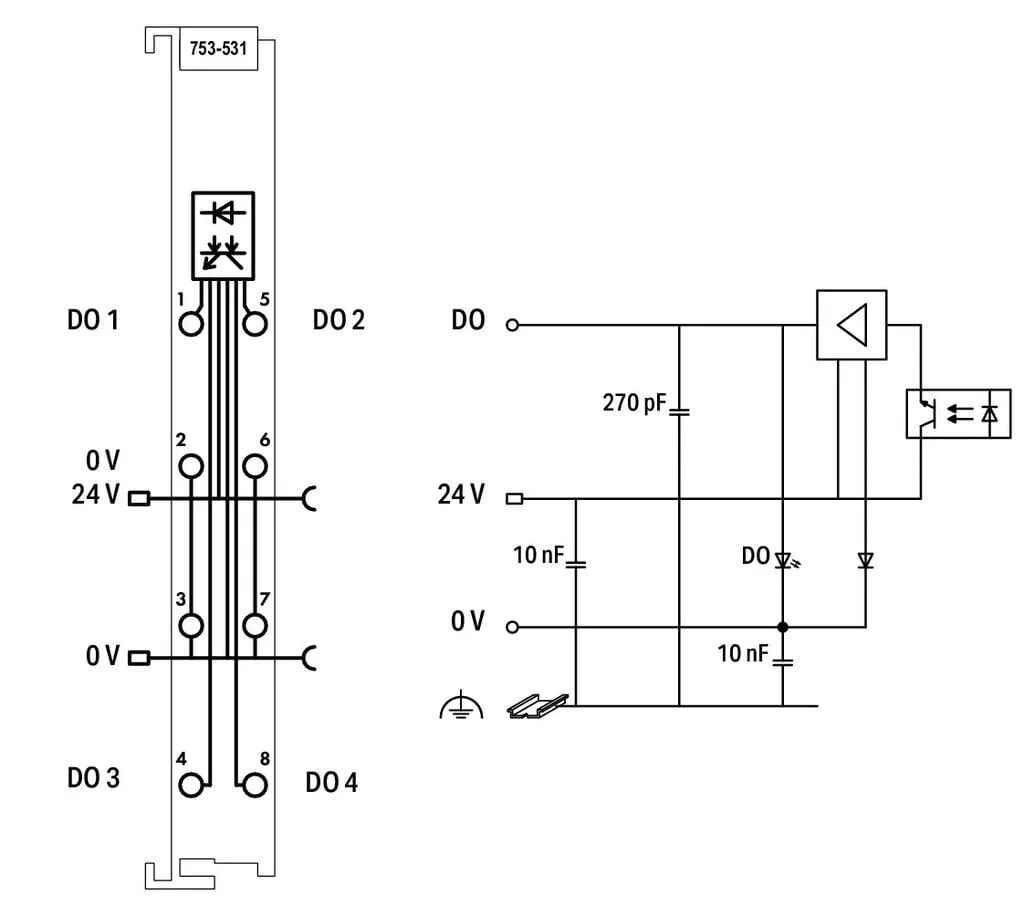

This digital output module transmits control signals from the automation device to the connected actuators.The module has four output channels and four 0 V outputs, providing a direct connection to four 2-wire actuators.All outputs are short-circuit-protected.Field and system levels are electrically isolated.
Specification
Notes
| Note | Pluggable connectors and coding fingers (753 Series) are not included. |
|---|
Technical data
| Number of digital outputs | 4 |
|---|---|
| Total number of channels (module) | 4 |
| Signal type | Digital |
| Signal type (voltage) | 24 VDC |
| Actuator connection | 4 x (2-wire) |
| Output characteristic | high-side switching |
| Output current per channel | 0.5 A |
| Output current | short-circuit-protected |
| Load type | Resistive, inductive, lamp load |
| Short-circuit current | 1.7 A |
| Reverse voltage protection | Yes |
| Switching frequency (max.) | 1 kHz |
| Inductive load switch-off energy dissipation (max.) | 0.3 J |
| Output data width (internal) max. | 4 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 10 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Current consumption, field supply (module with no external load) | 30 mA |
| Isolation | 500 V system/field |

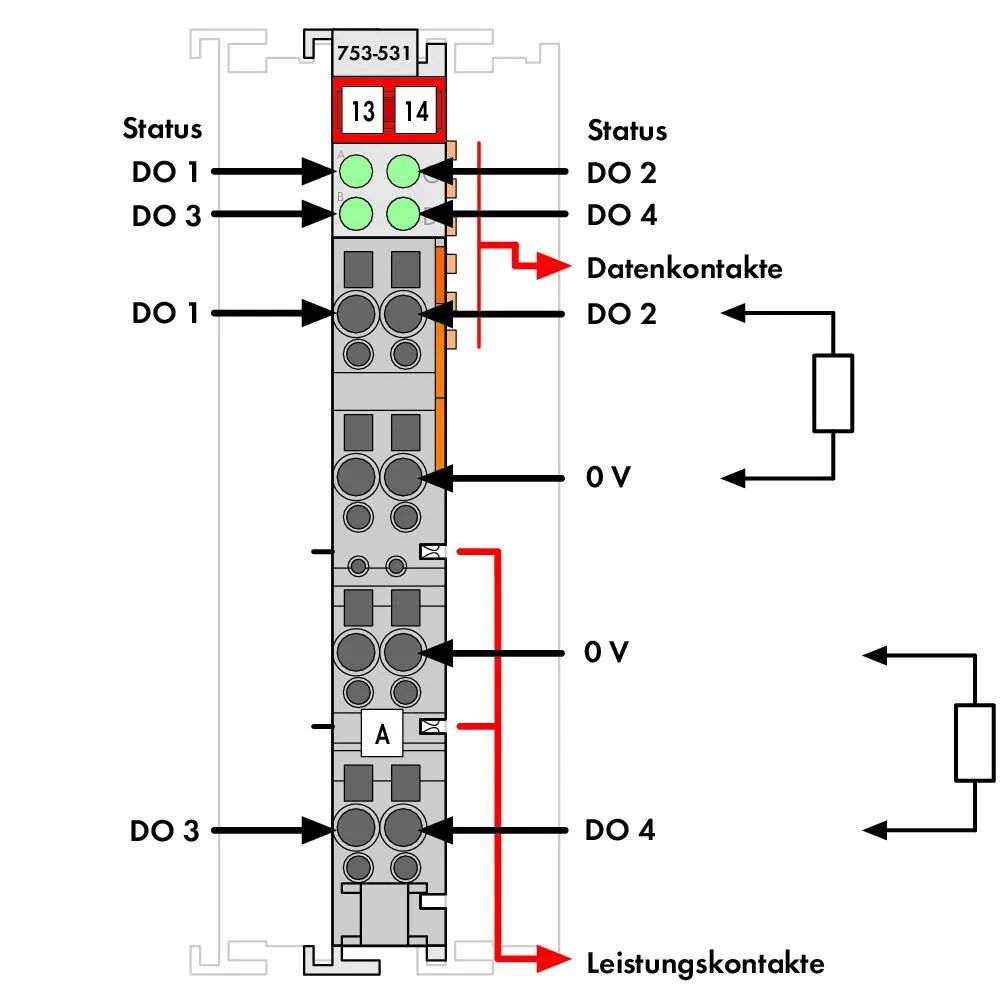

| Indicators | LED (A-D) green: Status DO 1 … DO 4 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10 A |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® (outputs) |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Output |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | pluggable |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.682 MJ |
| Weight | 40.5 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454513764 |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 75980-60-8 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide, Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)- |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | e22f68f7-c92c-4a6f-9618-3484df7354ea |
| SCIP notification number (Belgium) | ba8c90d8-71c3-4187-926c-5f94edddc6d8 |
| SCIP notification number (Bulgaria) | 43bb7919-ed9e-4033-8fd7-45a267bfe68d |
| SCIP notification number (Czech Republic) | 6369e2f6-57ff-4233-85c2-66bb4cb7045e |
| SCIP notification number (Denmark) | 2ad9c25b-9c9f-449f-bc14-1bc394c72706 |
| SCIP notification number (Finland) | fbf266f5-c0f0-488f-bbf5-2fafca885173 |
| SCIP notification number (France) | f4f0ba8c-f823-4676-b6c9-8b9f9dfd7429 |
| SCIP notification number (Germany) | 8f3e5fbd-2925-467b-a61b-4012764a5987 |
| SCIP notification number (Hungary) | 1b572428-806e-43a7-8891-94de740e194b |
| SCIP notification number (Italy) | b3ddec04-2182-45ed-a1ab-2fac0745331c |
| SCIP notification number (Netherlands) | 0b661009-74c0-464f-832e-78a4dedc7f76 |
| SCIP notification number (Poland) | 94b0ac67-fb91-4bc3-9da8-4b7d8e4fcb72 |
| SCIP notification number (Romania) | e202383c-6058-4afe-9ab6-93dc7ac12cb3 |
| SCIP notification number (Sweden) | 526d7b29-5cd4-4929-9f36-6892428b8837 |
