Wago 751-9412

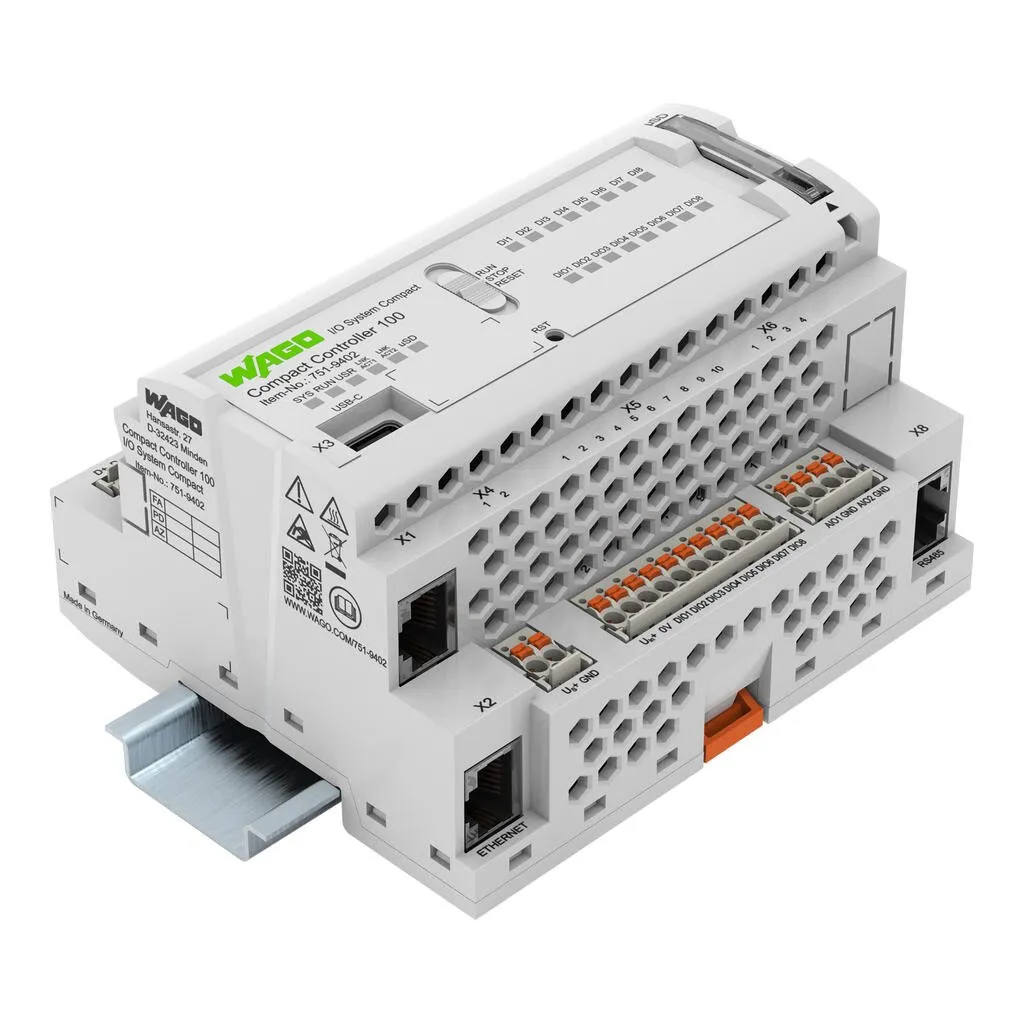

Compact Controller 100; 8DI 8DIO 2AI 2AIO 2NI/PT 2RS485; 2 x ETHERNET; SD; Secure 751-9412
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Compact Controller 100; 8DI 8DIO 2AI 2AIO 2NI/PT 2RS485; 2 x ETHERNET; SD; Secure 751-9412
Specification
Technical data
| Communications | Modbus (TCP), Modbus RTU, OPC UA Server/Client, RS-485 interface, MQTT (via IIoT library), SNMP (via IIoT library), Telecontrol protocols, (not part of IEC62443-4-2 certification), requires an additional license |
|---|---|
| ETHERNET protocols | DHCP, DNS, HTTPS, SSH, WDA, OAuth2, LDAP, IPsec |
| Visualization | Web-Visu |
| Operating system | Linux (Yocto distribution) with PREEMPT_RT |
| CPU | 2 x Cortex A7; 650 MHz |
| Programming languages per IEC 61131-3 | Instruction List (IL), Ladder Diagram (LD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) |
| Programming environment | CODESYS V3.5, CODESYS licenses included:Control Basic MCommunication S/M 2048 TagsVisualization S 128 data pointsIIoT Libraries |
| Configuration options | CODESYS V3.5, Web-Based Management, WAGO Device Manager |
| Transmission rate | 10/100 Mbit/s |
| Transmission medium (communication/fieldbus) | Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
| Main memory (RAM) | 512 MB |
| Internal memory (flash) | 4096 MB |
| Non-volatile hardware memory | 128 kbyte |
| Program memory | 32 MB |
| Data memory | 128 MB |
| Non-volatile software memory | 128. kbyte |
| Type of memory card | microSD up to 32 GB (all guaranteed properties only valid with WAGO's memory card) |
| Memory card slot | Push-push mechanism |
| Indicators | LED (SYS, RUN), red/green: System status; LED (USR), red/green: User-programmable status (accessible via CODESYS library); LED (μSD), orange: microSD card status; LED (LNK/ACT), green: Network connection status via ports 1 … 2; LED (DI1 … 8), green: Status of inputs; LED (DO1 … 8) green: Status of inputs and outputs |
| Control Elements | Operating mode switch (RUN, STOP, RESET); reset button |
| Interfaces (USB) | 1 x USB, Typ C, Device-Mode |
| Supply voltage (system) | 24 VDC (-15 … +20 %); Via wiring interface (picoMAX® 3.5; Push-in CAGE CLAMP® connection) |
| Current consumption (system) max. | 600 mA |
| Supply voltage (field) | 24 VDC (-15 … +20 %); Via wiring interface (picoMAX® 3.5; Push-in CAGE CLAMP® connection) |
| <p>Field current consumption max. (digital outputs) U<sub>in</sub>+</p> | 4,000 mA |
| Isolation | 1250 V (DC 1 min., between system and field level (digital outputs)) |
Technical Data (Inputs/Outputs) - Digital inputs/outputs
| Number of configurable digital inputs/outputs | 8 |
|---|---|
| Signal type | Voltage |
Technical Data (Inputs/Outputs) - Digital inputs
| Number of digital inputs | 8 |
|---|---|
| Input characteristic | Type 3 (per EN 61131-2) |
Technical Data (Inputs/Outputs) - Analog inputs/outputs
| Number of analog inputs/outputs (configurable) | 2 |
|---|
Technical Data (Inputs/Outputs) - Analog inputs
| Number of analog inputs | 2 |
|---|---|
| Resolution of analog inputs | 16 Bit |
| Input signal (current) | 0 … 20 mA, 4 … 20 mA, 3.6 … 21 mA |
| Input signal (voltage) | 0 … 10 V, ±10 V |
Technical Data (Inputs/Outputs) - RTD inputs
| Number of measurement inputs | 2 |
|---|---|
| Sensor types | Pt100 (-200 … +850 °C); Pt200 (-200 … +850 °C); Pt500 (-200 … +850 °C); Pt1000 (-200 … +850 °C);Ni100 (-60 … +250 °C); Ni1000, TK6180 (-60 … +250 °C); Ni1000, TK5000 (-60 … +250 °C); Ni120 (-80 … +260 °C);Potentiometer 0 Ohm … 1.2 kOhm; Potentiometer 0 Ohm … 4 kOhm |

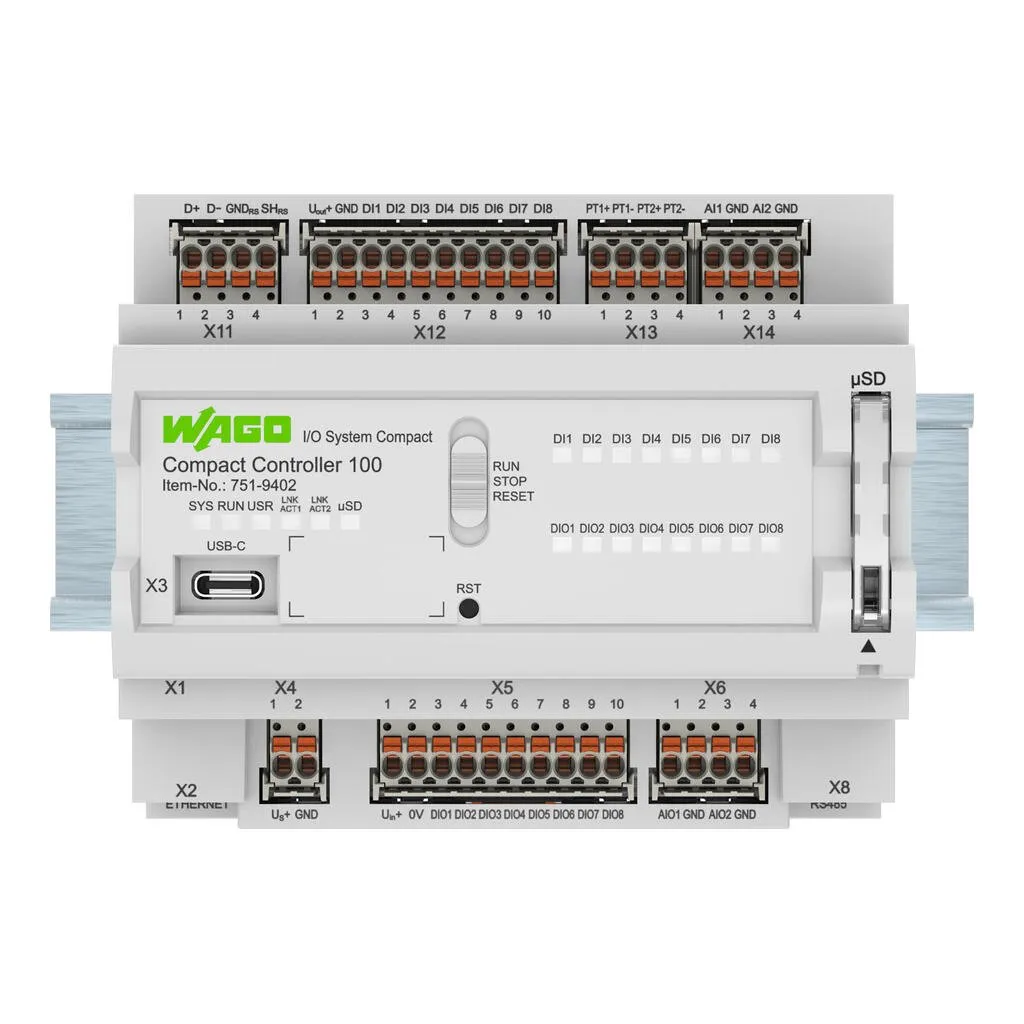

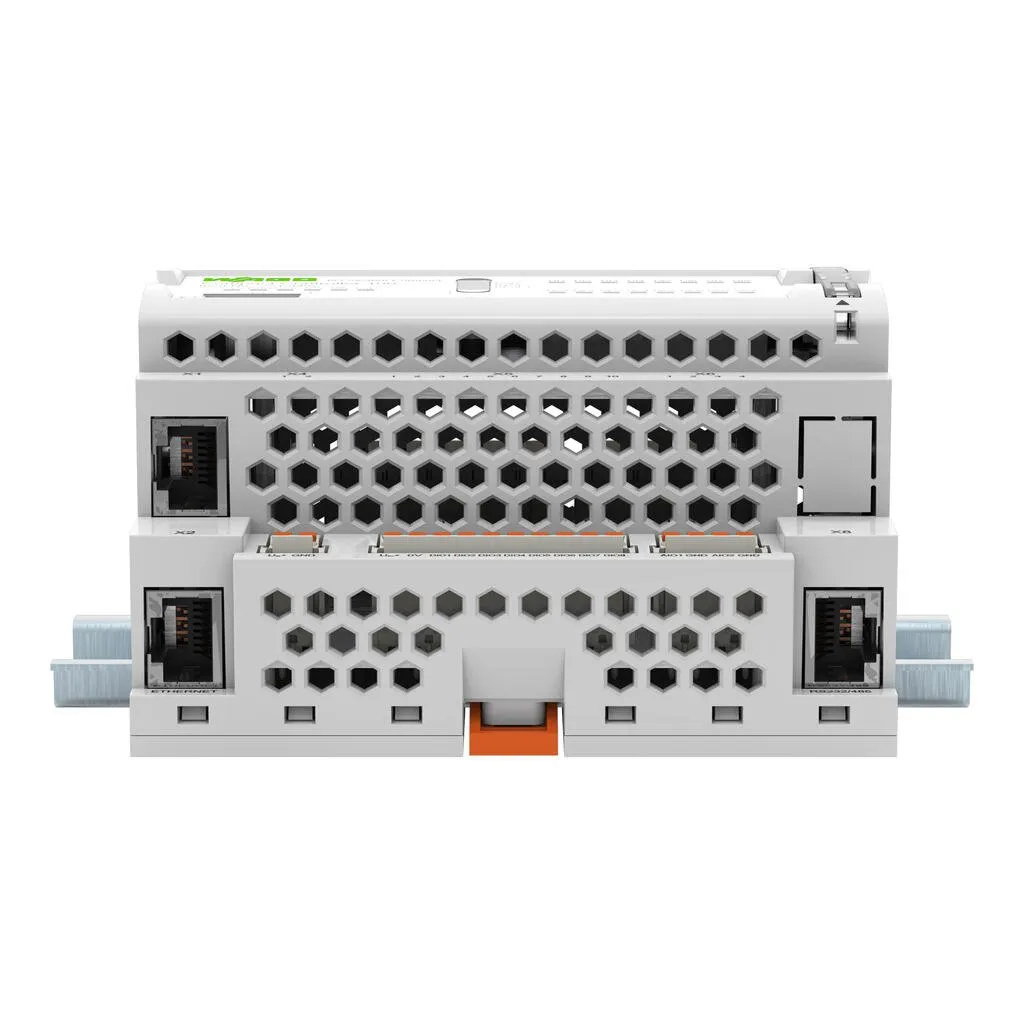

Connection data

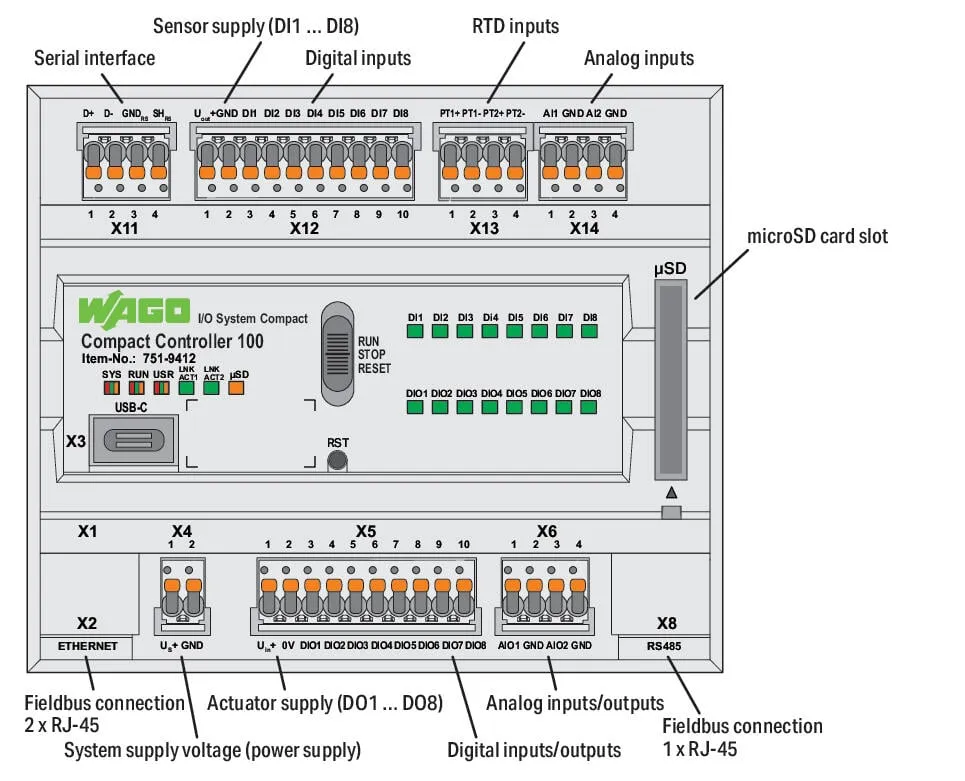

| Connection technology: communication/fieldbus | Modbus (TCP): 2 x RJ-45; RS-485 interface: 1 x RJ-45; RS-485 interface: 1 x Female connector, 4-pole; Push-in CAGE CLAMP® |
|---|---|
| Connection technology: system supply | 1 x Female connector, 2-pole; Push-in CAGE CLAMP® |
| Connection technology: field supply | 2 x Female connector, 10-pole; Push-in CAGE CLAMP® |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 1.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.2 … 1.5 mm² / 24 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 108 mm / 4.252 inches |
|---|---|
| Height | 90 mm / 3.543 inches |
| Depth from upper-edge of DIN-rail | 55 mm / 2.165 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Housing material | Polycarbonate, polyamid |
|---|---|
| Weight | 205 g |
| Conformity marking | CE; UKCA |
Environmental requirements
| Ambient temperature (operation) | -25 … +60 °C |
|---|---|
| Ambient temperature (storage) | -25 … +80 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | any |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 1g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-3 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966806373 |
| Customs tariff number | 85371091990 |
Product Classification
| ETIM 9.0 | EC000236 |
|---|---|
| ETIM 10.0 | EC000236 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
