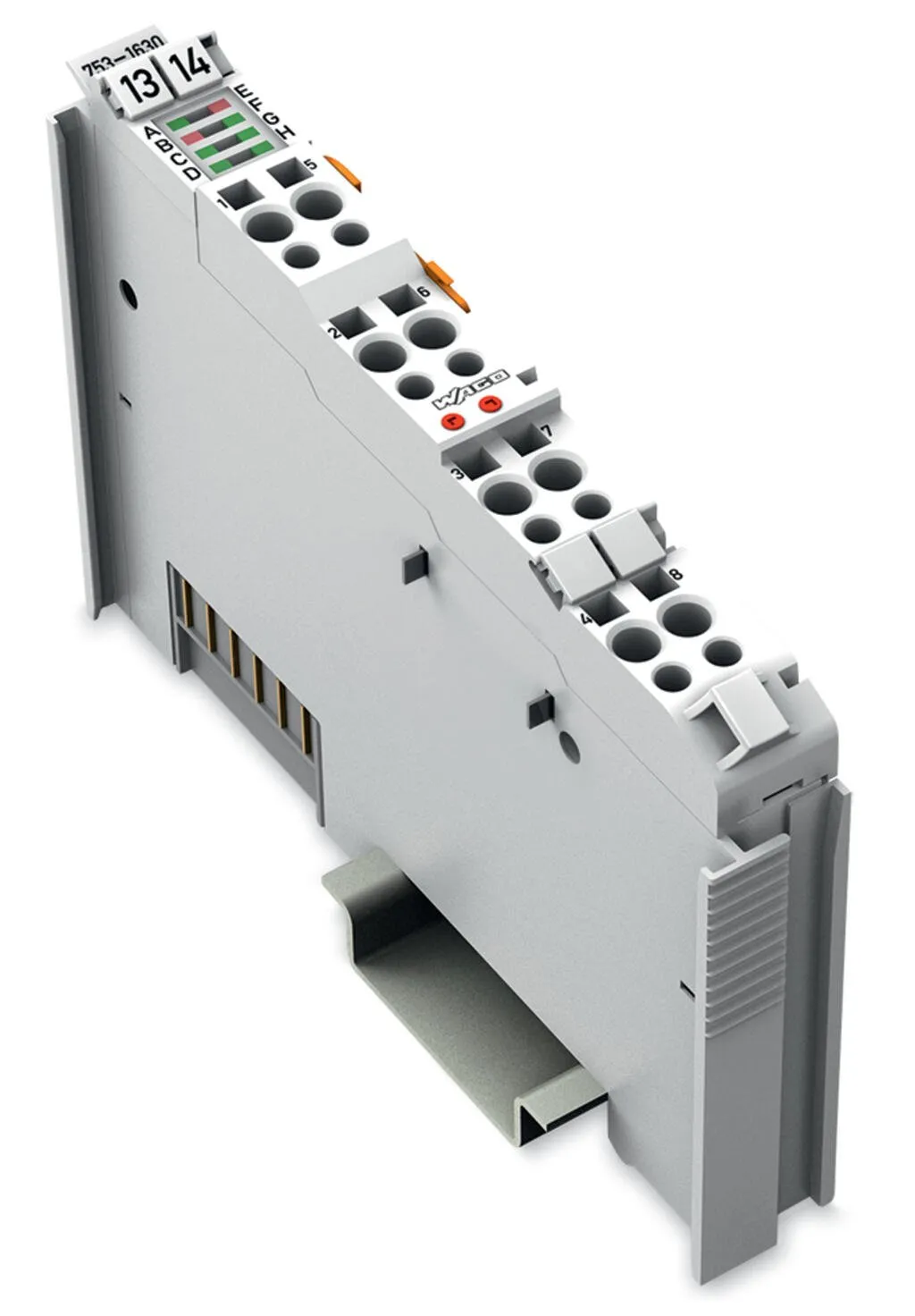

Wago 753-1630
The SMI Master is a standard interface to SMI-compliant electrical drives.The SMI Master operates up to 16 SMI drives. Several SMI Masters may be operated within a node.Communication between applicati…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The SMI Master is a standard interface to SMI-compliant electrical drives.The SMI Master operates up to 16 SMI drives. Several SMI Masters may be operated within a node.Communication between applications and SMI drives is performed via special IEC function blocks. These function blocks support both single and group addressing, as well as status monitoring.The SMI function blocks can be used with the 750 Series Programmable Fieldbus Controllers.Alternatively, the fieldbus coupler mode provides simple function calls for control without complex PLC programming.The SMI configurator is suitable for addressing, configuring and commissioning SMI drives.Additional functions: The programmed commands can be overwritten by an external sensor or switch via additional digital input.The drive can be switched off by a relay via additional digital output to save energy. The drive is automatically switched on again by the output before the next drive command. About SMI: SMI stands for Standard Motor Interface, a standard interface for electrical drives. SMI was developed to connect drives with integrated electronic circuitry for applications in shutters and sunshade systems. SMI is a protected word/image mark of the SMI Standard Motor Interface e.V. VR380 995 District Court Freiburg.
Specification
Technical data
| Device specification | SMI Master Interface per “SMI Data Format and Framework Protocol” Specifications Rev. 3.0.2BF and “HMI Hardware Specification” Rev. 3.0 |
|---|---|
| Number of digital inputs | 1 |
| Number of digital outputs | 1 |
| Number of SMI channels | 1 (1 … 16 SMI drives per channel) |
| Input characteristic | Type 1 |
| Input voltage (max.) | 31.2 VDC |
| Output current (per channel) | 0.5 A; per digital output |
| Data width | 12-byte data |
| Commissioning | via WAGO SMI Configurator or IEC libraries |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 34 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Current consumption, field supply (module with no external load) | 10 mA |

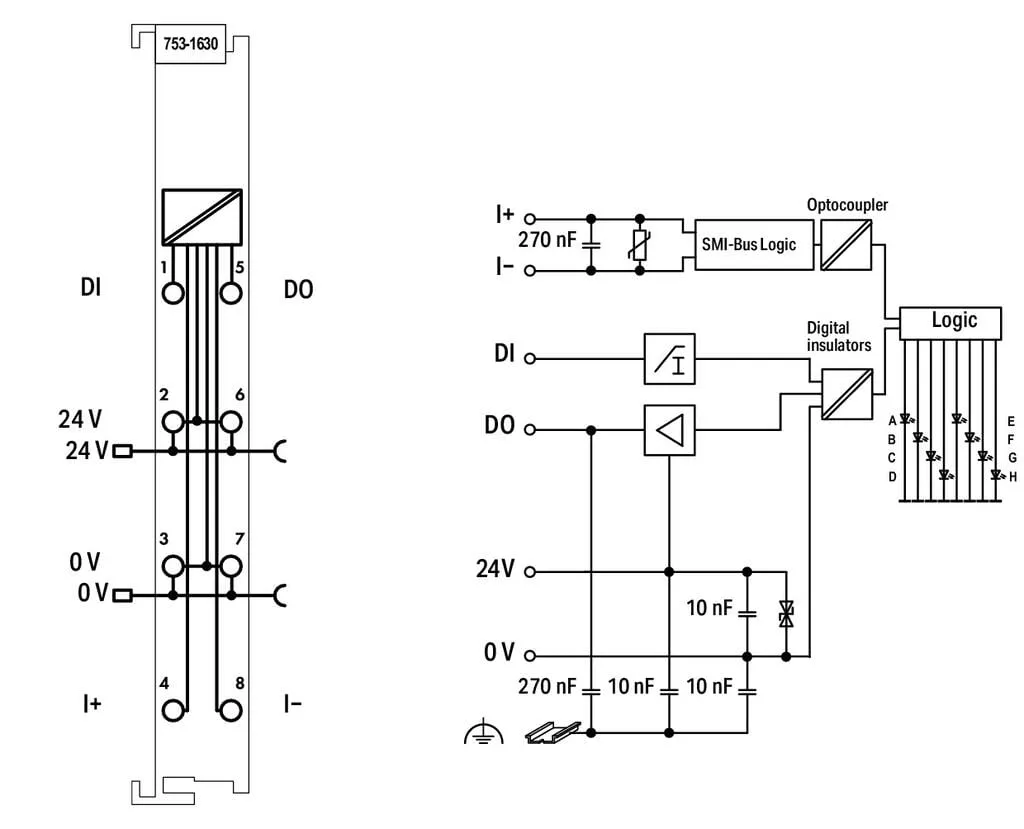

| Isolation | 3 kVAC RMS, 4 kV surge (system/SMI); 1.5 kVAC RMS, 2.5 kV surge (system/field) |

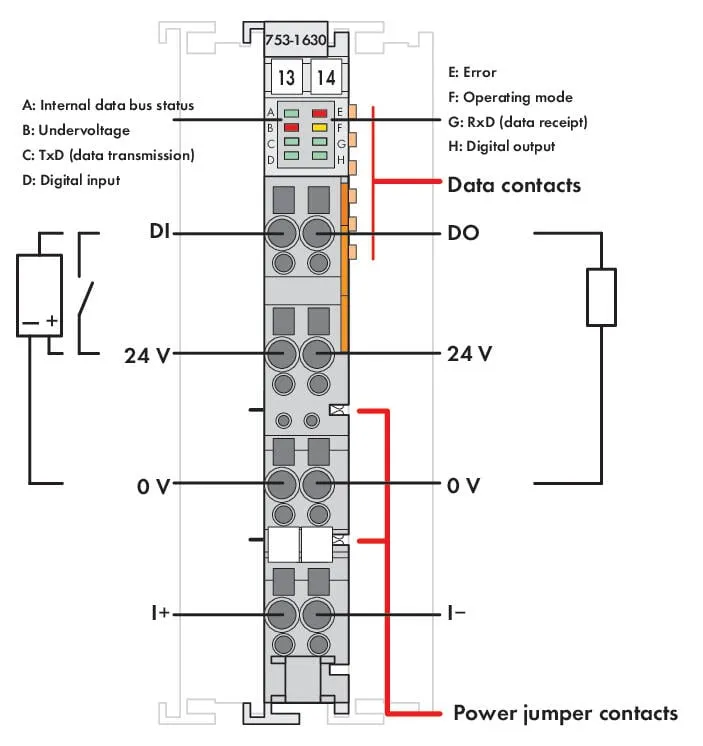

| Indicators | LED (A, C, D, G, H) green: local bus status, TxD (data transmission), digital input, RxD (data reception), digital output; LED (B, E) red: undervoltage, error; LED (F) yellow: operating mode |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
Connection data

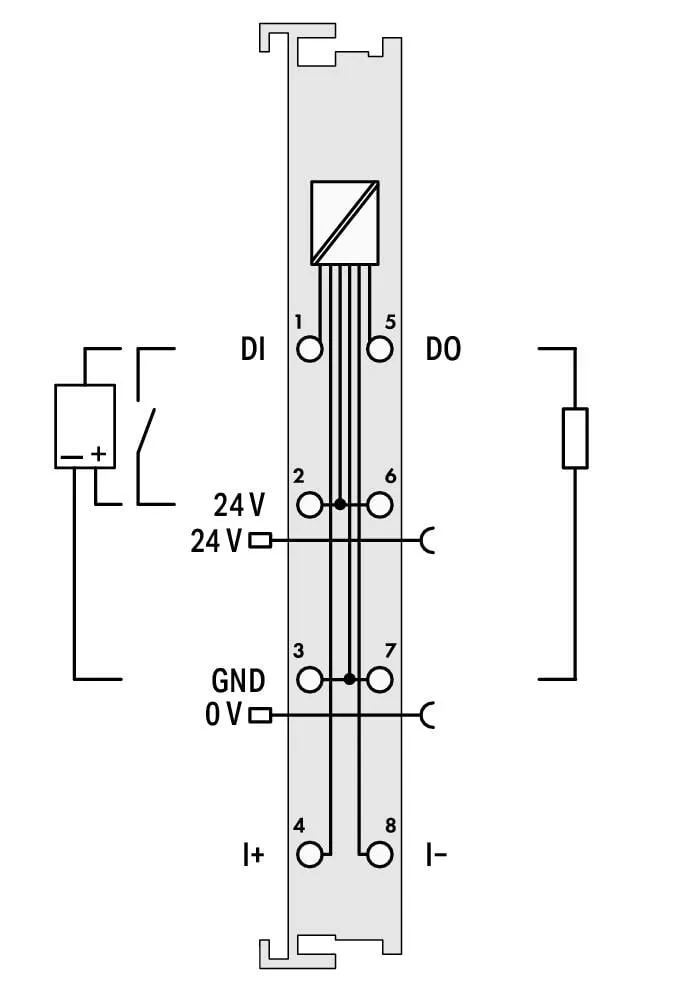

| Connection technology: I/O | 8 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Connection requirement (permissible cable length) | 350 m |
| Connection requirement (permissible cable type) | 2-line, unshielded |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | Pluggable |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.827 MJ |
| Weight | 71.2 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +50 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143592277 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-08 |
| eCl@ss 9.0 | 27-24-26-08 |
| ETIM 9.0 | EC001604 |
| ETIM 10.0 | EC001604 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| SCIP notification number (Austria) | 38602bb2-f016-4578-bfb3-38b8c1d6b40e |
| SCIP notification number (Belgium) | 7e367089-23ff-41df-89e5-944f17e50c6a |
| SCIP notification number (Bulgaria) | dee1d563-4159-4e3f-b5c4-4dbf33f68a1b |
| SCIP notification number (Czech Republic) | 867f54c5-7abe-4060-a0e7-12f46e90c614 |
| SCIP notification number (Denmark) | f5c2a64c-9b59-4c64-8983-7c97576b0b5f |
| SCIP notification number (Finland) | 34f78e5d-5a35-4360-bdd3-0a54804a7a78 |
| SCIP notification number (France) | a0978f7c-828d-4554-85d0-4f1cd88fb3ef |
| SCIP notification number (Germany) | e333478b-f53f-4c28-af55-acba09c0865e |
| SCIP notification number (Hungary) | 01a70921-8928-4185-bc47-d5aad318640d |
| SCIP notification number (Italy) | 5d3971f5-0548-4910-a3b6-baa6147437f1 |
| SCIP notification number (Netherlands) | a3f7536b-3f3d-46b8-a36e-6a2b1619e9fa |
| SCIP notification number (Poland) | c837a965-3ebd-4fcc-9eb5-4bca933bc72c |
| SCIP notification number (Romania) | f5937ec1-c320-4c46-8805-4565401457a1 |
| SCIP notification number (Sweden) | 4608e80e-b2af-467d-8522-da2632a3bc52 |
