Wago 235-110/330-000

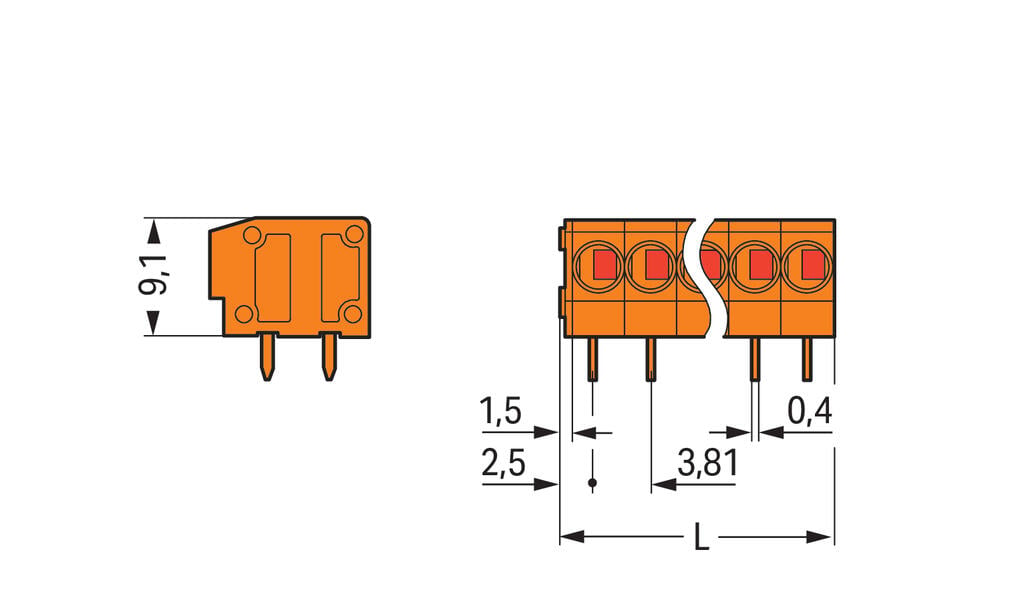

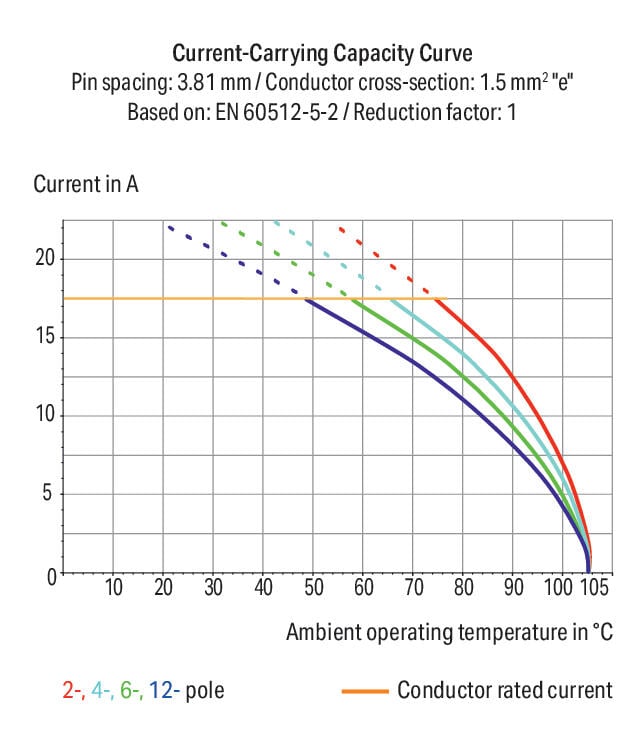

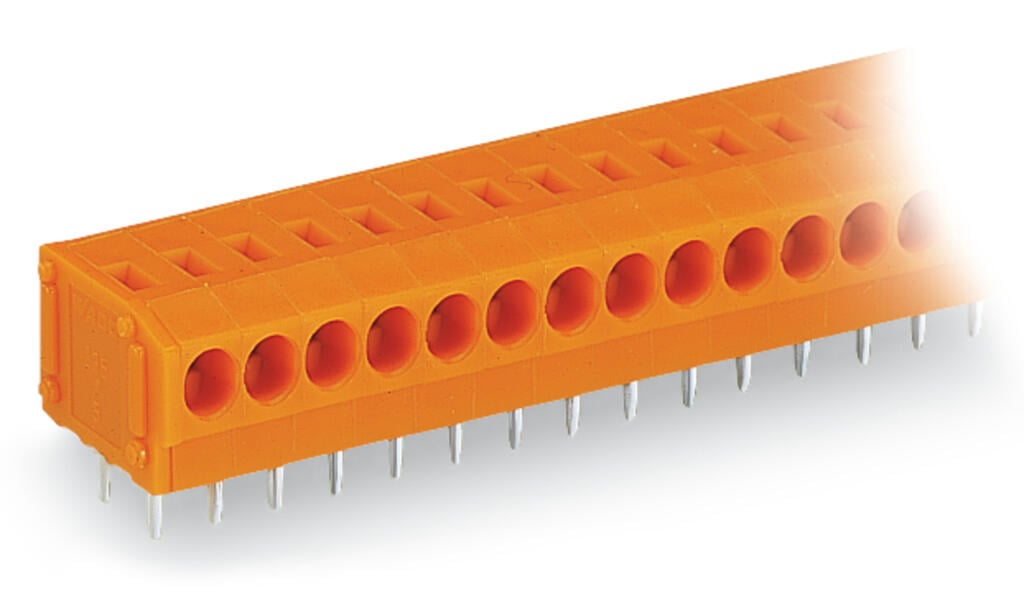

PCB terminal block, 235 Series, solder pin dimensions 0.8 x 0.4 mmThis PCB terminal block (item number 235-110/330-000) is designed for quick and easy connections. You can rely on tried and tested safety with these PCB terminal blocks, perfect for a wide variety of applications when designing your devices. This PCB terminal block has a rated voltage of 320 V and can handle currents up to 17.5 A, making it suitable for high-load applications. Conductors should only be connected to this PCB terminal block if their strip length is between 9 mm and 10 mm. This product features one conductor terminal and utilizes PUSH WIRE®. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring’s contact force, allowing you to clamp the conductor in place more quickly and easily. Dimensions: 39.6 x 12.8 x 12.5 mm (width x height x depth). Depending on the conductor type, this PCB terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 1.5 mm². It has one level. Ten potentials can connect ten poles using the ten clamping points The clamping spring is made of chrome-nickel spring steel (CrNi), the orange housing is made of polyamide (PA66) for insulation, and the contacts are made of electrolytic copper (ECu). Tin is used for coating the contact surfaces. This PCB terminal block is operated with an operating tool. THT is used to assemble the PCB terminal block. Insert the conductor into the board at a 0° angle.. The solder pins are organized over the entire terminal strip (in-line). They are 0.8 x 0.4 mm cross-section and 3.6 mm in length. Each potential has two solder pins.
