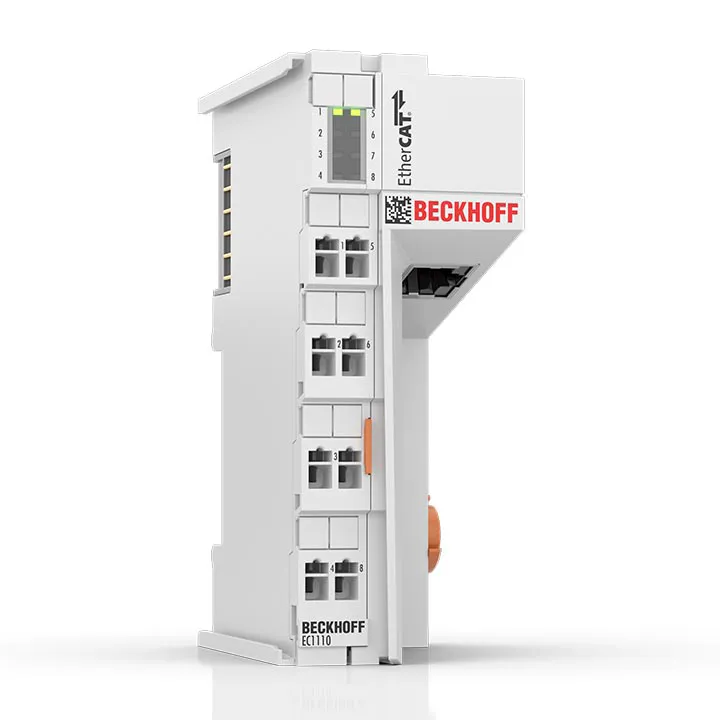

Beckhoff EC1110
The EC1110 EtherCAT extension is placed at the end of an EtherCAT Terminal segment or an Embedded PC from the CX series and offers the option of extending the EtherCAT network in the form of a line to…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The EC1110 EtherCAT extension is placed at the end of an EtherCAT Terminal segment or an Embedded PC from the CX series and offers the option of extending the EtherCAT network in the form of a line topology. Due to the angled RJ45 socket, the cable can
Specification
| Internal Communication Protocol | EtherCAT |
|---|---|
| Number Of Ports | 1 |
| Function | Conversion of the E-bus signals to 100BASE-TX Ethernet for extension of the EtherCAT network |
| Protocol | EtherCAT |
| Transmission Type | half or full duplex |
| Data Transfer Medium | Ethernet/EtherCAT cable (at least Cat.5), shielded |
| Transmission Rate | 100 Mbit/s |
| Delay | typ. 1 µs |
| Cable Length | Point To Point | max. 100 m |
| Connection Technology | RJ45 |
| Connection Technology | Contact Type | socket |
| Distributed Clocks | no |
| Timestamp | no |
| Oversampling | no |
| Electronics | Supply Voltage | via E-bus |
| E Bus | Current Consumption | typ. 130 mA |
| Operating Temperature | 0…55°C |
| Storage Temperature | -25…+85°C |
| Relative Humidity | 95%, no condensation |
| Installation Position | variable |
| Vibration Resistance | conforms to EN 60068-2-6 |
| Shock Resistance | conforms to EN 60068-2-27 |
| Emc Immunity | conforms to EN 61000-6-2 |
| Emc Emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | UL (in preparation) |
| Protection Rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (Single) | 42 mm |
| Dimensions | Width (Lined Up) | 39 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/Back Wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/Terminal | double slot and key connection |
| Power Contact | " " (Left) | no |
| Power Contact | "⏚" (Left) | no |
