Banner Engineering LCA130T3Q
LCA130T Andon Control Box: 3-Output
Voltage: 18-30 V dc
3-Touch Control Module
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

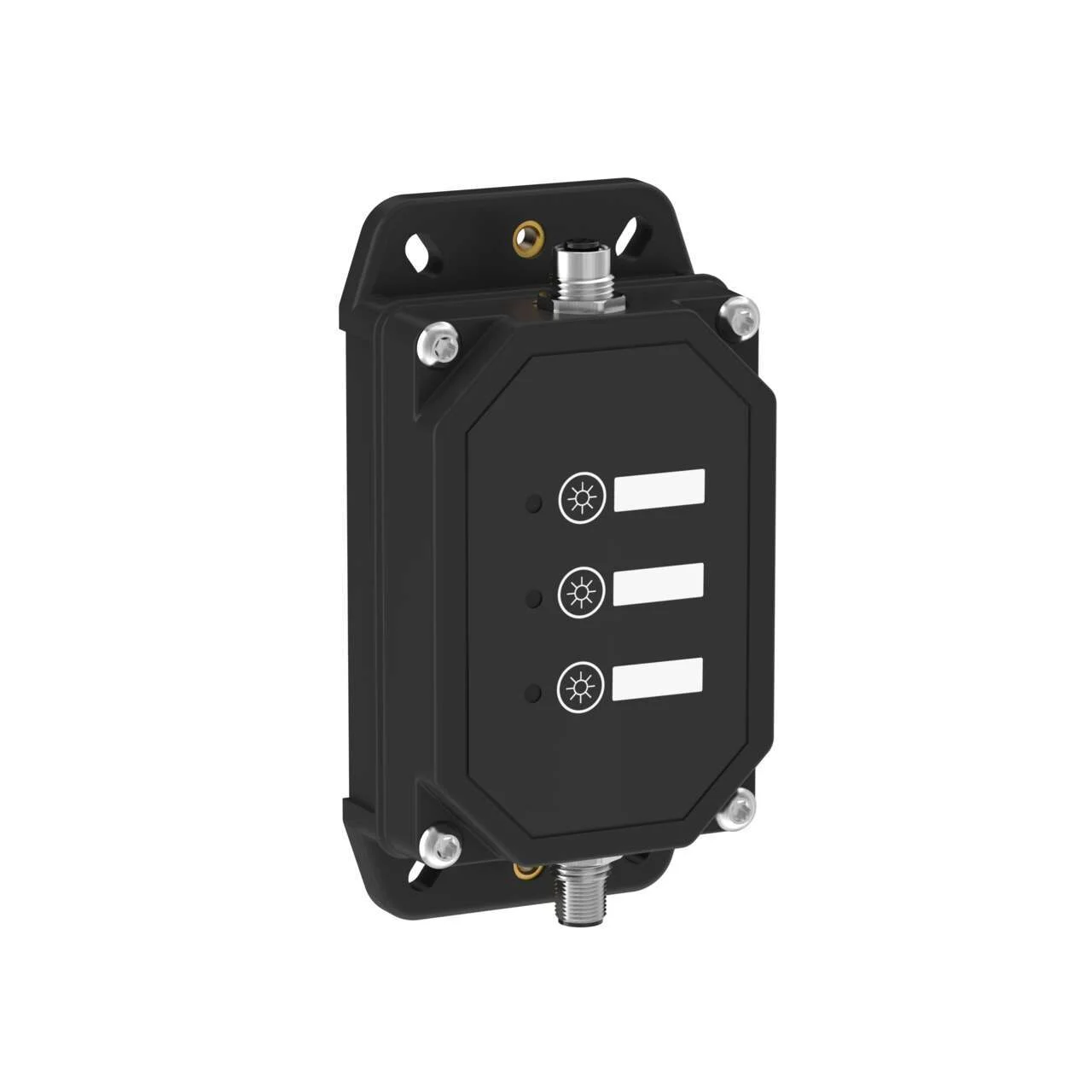

LCA130T Andon Control Box: 3-Output
Voltage: 18-30 V dc
3-Touch Control Module
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP65 |
| Display | No |
| Supply Voltage | 18-30 V dc |
| Item Status | RELEASED |
| Housing Style | Enclosure |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Capacitive Touch |
| Mounting Thread | No Thread |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Current Color (Ma) | 50 |
| Number Of Input Pins/Conductors | 5 |
| I/O Block Compatible | No |
| Max Input Response Time (Ms) | 40 |
| Max Output Response Time (Ms) | 300 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 148 x 56 x 49.9 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 95% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Illumination Switch Function | I=On; O=OFF; II=Flash |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | Yes |
