Wago 899-682

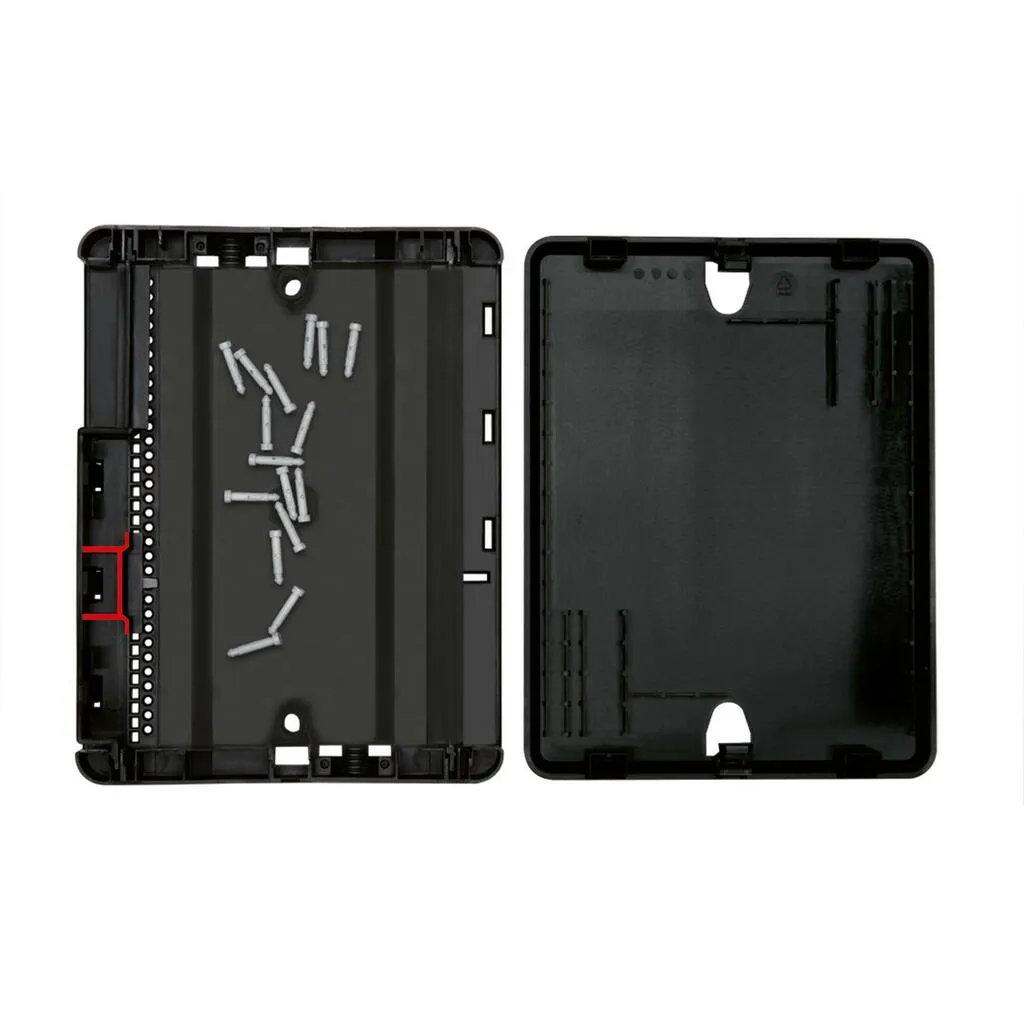

Empty housings WINSTA®Implement the energy supply without difficulty: The empty housings from the WINSTA® product line is the solution for error-free electrical installation. An extensive range of acc…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Empty housings WINSTA®Implement the energy supply without difficulty: The empty housings from the WINSTA® product line is the solution for error-free electrical installation. An extensive range of accessories complements the WINSTA® product line from WAGO.WINSTA® solutions for your electrical installation – protected against mismating and maintenance-freeThe WINSTA® Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with protection against mismating from WAGO. clear slot identification for easy commissioningsaves time, since no wiring is required at the construction sitefast, secure installation
Specification
Notes
| Note | For easy cable connection, do not arrange the connectors directly next to each other in the distribution box. |
|---|

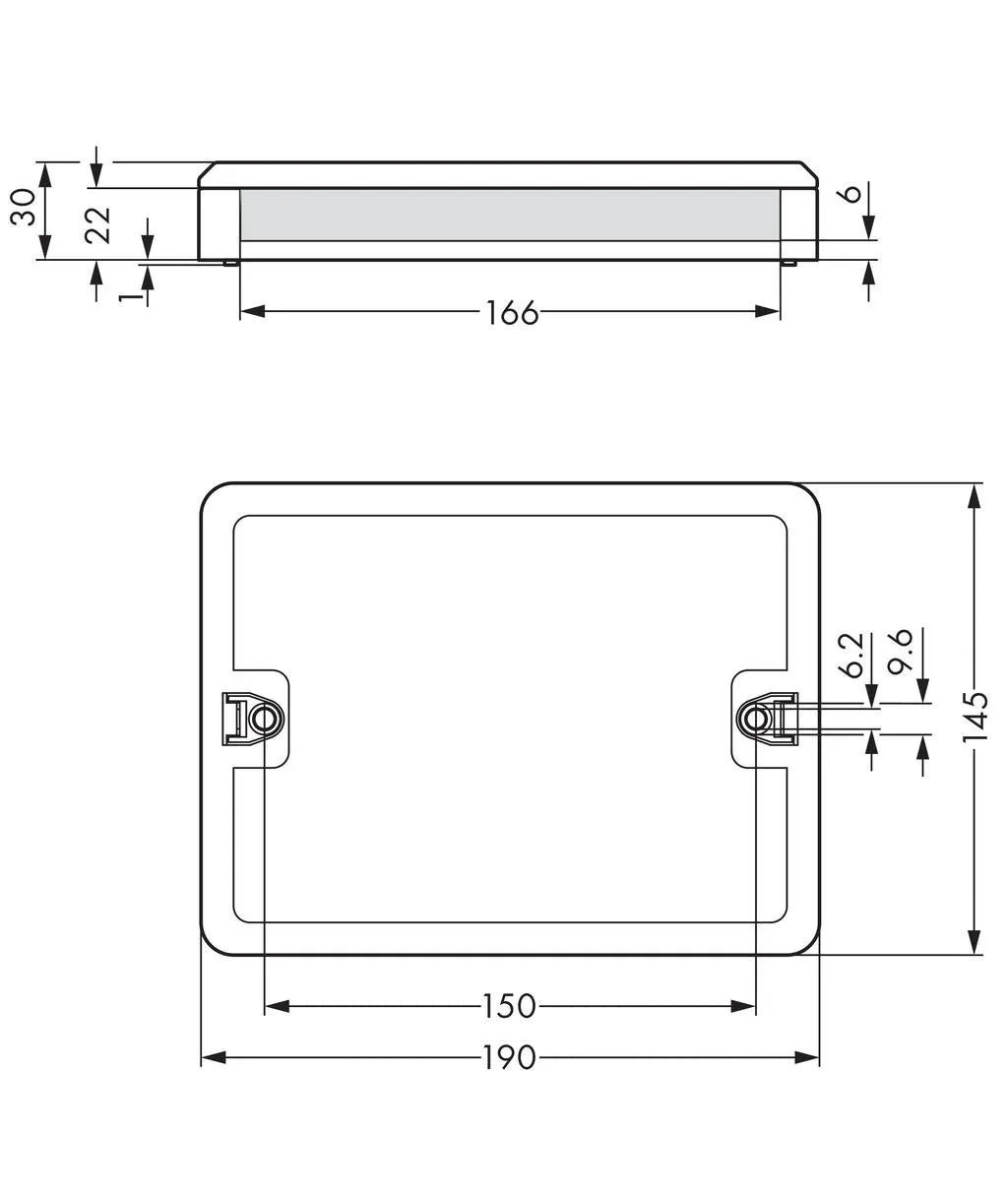

Physical data
| Width | 190 mm / 7.48 inches |
|---|---|
| Height | 31 mm / 1.22 inches |
| Depth | 145 mm / 5.709 inches |
Mechanical data
| Use | Self-assembly |
|---|---|
| Design | with integrated DIN-rail |
| Mounting type | Wall, screw mount, Installation on mounting plate |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 5.36 MJ |
| Weight | 192.6 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143315715 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121308 |
|---|---|
| eCl@ss 10.0 | 27-44-06-03 |
| eCl@ss 9.0 | 27-44-06-03 |
| ETIM 9.0 | EC002567 |
| ETIM 10.0 | EC002567 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
