Wago 895-1652

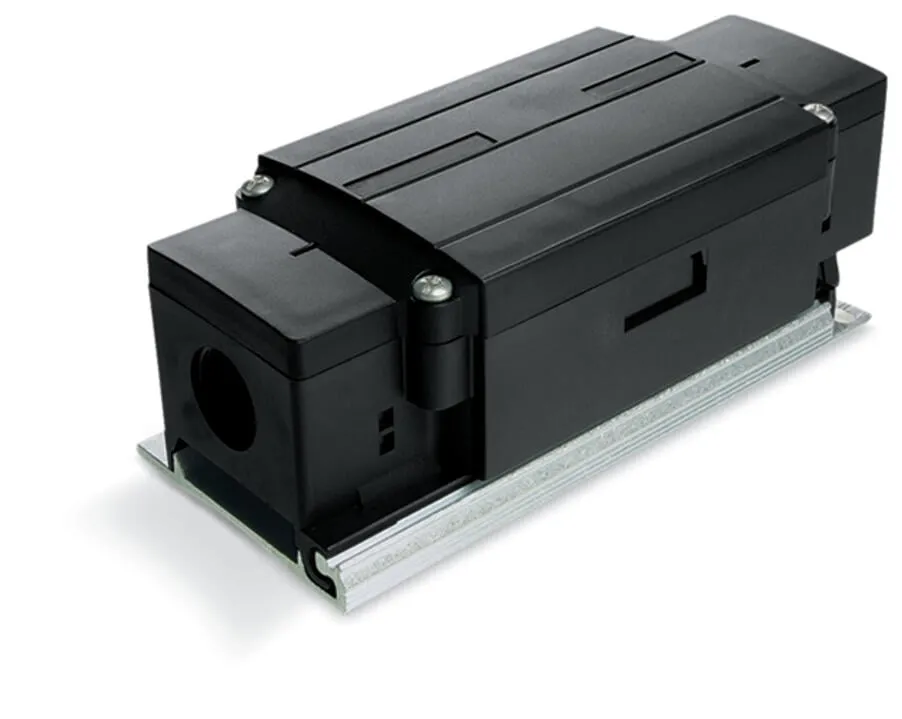

Tap-off module WINSTA® IDC with protection against mismatingThe WINSTA® IDC tap-off module 5-pole is the pluggable solution for your use in control cabinets, on PCBs or for lighting connections. The p…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Tap-off module WINSTA® IDC with protection against mismatingThe WINSTA® IDC tap-off module 5-pole is the pluggable solution for your use in control cabinets, on PCBs or for lighting connections. The pluggable installation connectors with spring pressure connection technology function completely without screw connections. They allow fast, efficient, error-free installation in numerous applications. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components – including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20 (IP65 with screw-type connection/blind plug). Important parameters in the selection of a pluggable installation connector are the rated current and voltage: They tell us about the product’s domains of use. This product has a current rating of 41 A – as a result it is also suitable for powerful loads.Lower costs through fast commissioning and elimination of service expenses – solutions from WINSTA® IDCThe WINSTA® Pluggable Connection System is ideally tailored to the strict requirements of building installation. It makes electrical installation pluggable, and consequently faster, more reliable, and error-free. Using this pre-assembled system decreases assembly times and errors during installation at the construction site. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with protection type IP20 from WAGO. effective protection against mismatingproducts perfectly tailored to your requirements guarantee safe usecustom-engineered solutionsquick replacement of defective units during ongoing operation
Specification
Notes
| Safety Information | To fulfill IP65 protection for this product, cable grips and/or blind plugs must be used. Note that the cable grip or the blind plug contains an O-ring. Without this sealing ring, the protection type IP65 is not met. |
|---|
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 690 V |
| Rated impulse withstand voltage (III / 3) | 8 kV |
| Rated current | 41 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 690 V |
| Rated impulse withstand voltage | 8 kV |
| Rated current | 41 A |
Electrical data - General information
| Note on contact resistance | approx. 1 mΩ of contact resistance approx. 0.25 mΩ contact transition plug/socket |
|---|
Connection data
| Clamping units | 5 |
|---|---|
| Total number of potentials | 5 |
Connection data - Connection 1
| Connection technology | Screw connection |
|---|---|
| Actuation type | Operating tool |
| Pole number | 5 |
Connection data - Connection 2
| Connection technology | IDC connection |
|---|
Physical data
| Width | 85 mm / 3.346 inches |
|---|---|
| Height | 73 mm / 2.874 inches |
| Depth | 200 mm / 7.874 inches |
Mechanical data
| Variable coding | No |
|---|---|
| Marking | plain |
| Retention force of a plug-in connection | When locked: > 80 N |
| Protection type | IP20; IP65 with screw-type connection/blind plug |
| Suitable | for flat cable 5 x 16 mm² |
Plug-in connection
| Mismating protection | Yes |
|---|---|
| Note on mismating protection | All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Cover color | black |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Contact material | Copper or copper alloy; surface-treated |
| Contact plating | Tin |
| Fire load | 10.692 MJ |
| Weight | 750.7 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Flat cable for temperatures –15 °C to ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | CH |
| GTIN | 4045454006396 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-44-06-01 |
| eCl@ss 9.0 | 27-44-06-01 |
| ETIM 9.0 | EC002588 |
| ETIM 10.0 | EC002588 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
