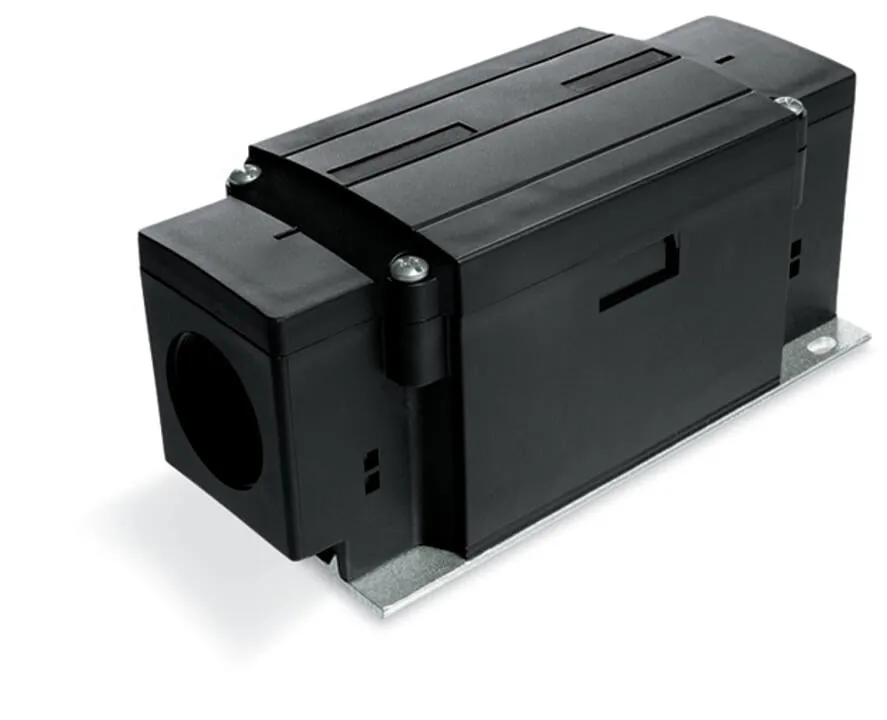

Wago 895-1651
Supply module WINSTA® IDC 5-poleThe WINSTA® IDC supply module with protection against mismating allows installation of solid and fine-stranded conductors. Our pluggable installation connectors with sp…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Supply module WINSTA® IDC 5-poleThe WINSTA® IDC supply module with protection against mismating allows installation of solid and fine-stranded conductors. Our pluggable installation connectors with spring pressure connection technology work completely without screw connections. They allow resource-efficient, error-free installation in a large number of possible uses. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20 (IP65 with screw-type connection/blind plug). This pluggable installation connector can be used for electrical currents up to 76 A. Thus the product is also suitable for high power loads.WINSTA® IDC solutions for your electrical installation – protected against mismating and maintenance-freeThe WINSTA® Pluggable Connection System is perfectly tailored to the strict requirements of building installation. It makes electrical installation pluggable, and thus faster, more reliable, and error-free. Use of this pre-assembled system reduces time spent on assembly and installation errors at the construction site. Now you can also reduce installation expenses without compromising safety and quality: with protection type IP20 reduces the need for servicing and prevents unnecessary downtime. effective protection against mismatingsaves time, since no wiring is required at the construction siteready to install and use immediatelyquick replacement of defective units during ongoing operation
Specification
Notes
| Safety Information | To fulfill IP65 protection for this product, cable grips and/or blind plugs must be used. Note that the cable grip or the blind plug contains an O-ring. Without this sealing ring, the protection type IP65 is not met. |
|---|
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 690 V |
| Rated impulse withstand voltage (III / 3) | 8 kV |
| Rated current | 76 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 690 V |
| Rated impulse withstand voltage | 8 kV |
| Rated current | 76 A |
Electrical data - General information
| Note on contact resistance | approx. 1 mΩ of contact resistance approx. 0.25 mΩ contact transition plug/socket |
|---|
Connection data
| Clamping units | 5 |
|---|---|
| Total number of potentials | 5 |
Connection data - Connection 1
| Connection technology | Screw connection |
|---|---|
| Actuation type | Operating tool |
| Pole number | 5 |
Connection data - Connection 2
| Connection technology | IDC connection |
|---|
Physical data
| Width | 85 mm / 3.346 inches |
|---|---|
| Height | 90 mm / 3.543 inches |
| Depth | 200 mm / 7.874 inches |
Mechanical data
| Variable coding | No |
|---|---|
| Marking | plain |
| Retention force of a plug-in connection | When locked: > 80 N |
| Protection type | IP20; IP65 with screw-type connection/blind plug |
| Suitable | for flat cable 5 x 16 mm² |
Plug-in connection
| Mismating protection | Yes |
|---|---|
| Note on mismating protection | All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Cover color | black |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Contact material | Copper or copper alloy; surface-treated |
| Contact plating | Tin |
| Fire load | 11.88 MJ |
| Weight | 872.9 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Flat cable for temperatures –15 °C to ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | CH |
| GTIN | 4045454006389 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-44-06-01 |
| eCl@ss 9.0 | 27-44-06-01 |
| ETIM 9.0 | EC002588 |
| ETIM 10.0 | EC002588 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
