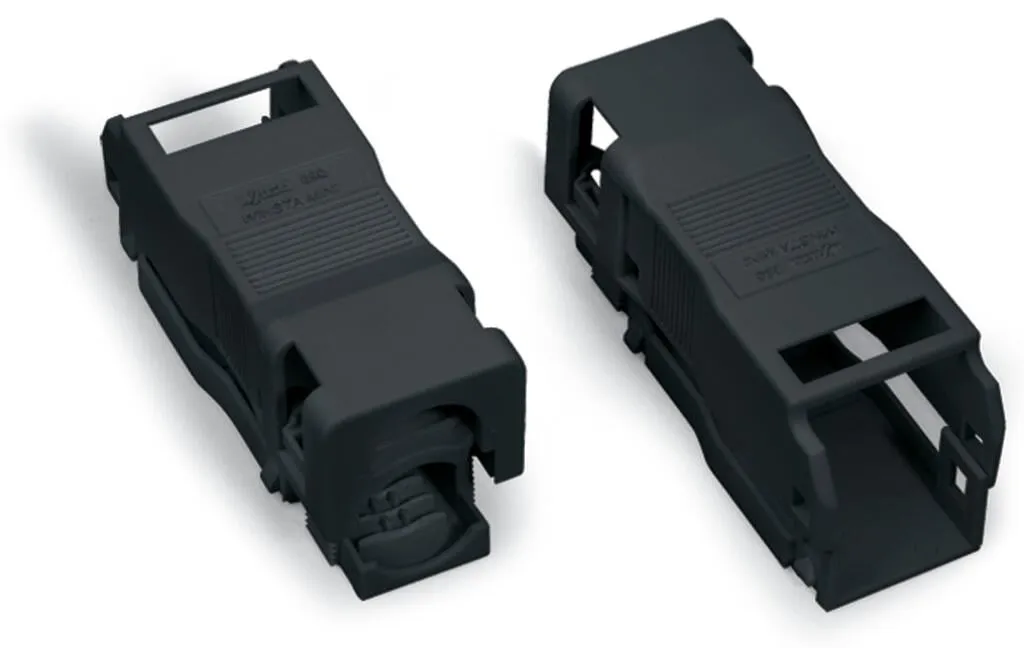

Wago 890-503
Strain relief housing WINSTA® MINI 3-poleWhen using the strain relief housing from the WINSTA® MINI product line, straightforward installation is guaranteed. You can rely on the quality of WINSTA® com…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Strain relief housing WINSTA® MINI 3-poleWhen using the strain relief housing from the WINSTA® MINI product line, straightforward installation is guaranteed. You can rely on the quality of WINSTA® components from WAGO for your electrical installation accessories too. Thanks to its particularly small dimensions, our WINSTA® MINI Pluggable Connection System with Push-in CAGE CLAMP® spring pressure connection technology is very suitable in very restricted spaces, i.e., for connections when very little room is available. The strip length is 40 mm.Push-in CAGE CLAMP® spring pressure connection technology – pluggable installation instead of laborious screw connections!The WINSTA® Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with protection against mismating from WAGO. compact design for conductors with a cross-section up to 1.5 mm²convenient installation and commissioning
Specification
Connection data - Connection 1
| Pole number | 3 |
|---|---|
| Connectable sheathed cable diameter | 4.5 … 10 mm |
| Strip length (outer insulation) | 40 mm |
Physical data
| Pin spacing | 4.4 mm / 0.173 inches |
|---|---|
| Width | 17.9 mm / 0.705 inches |
| Height | 14 mm / 0.551 inches |
| Depth | 46.8 mm / 1.843 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.115 MJ |
| Weight | 3.5 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454233327 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 |
| ETIM 10.0 | EC002863 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
