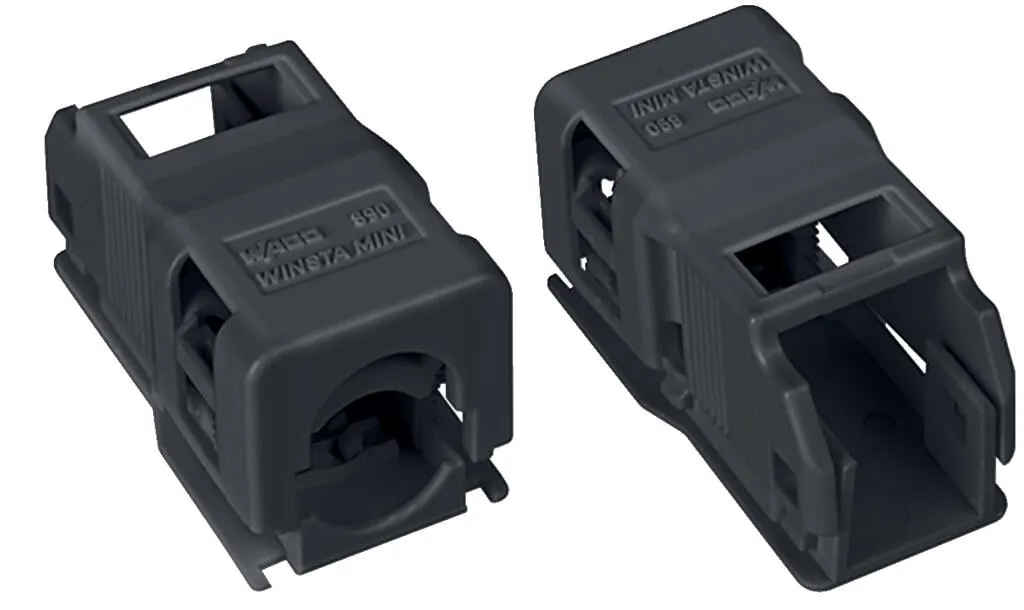

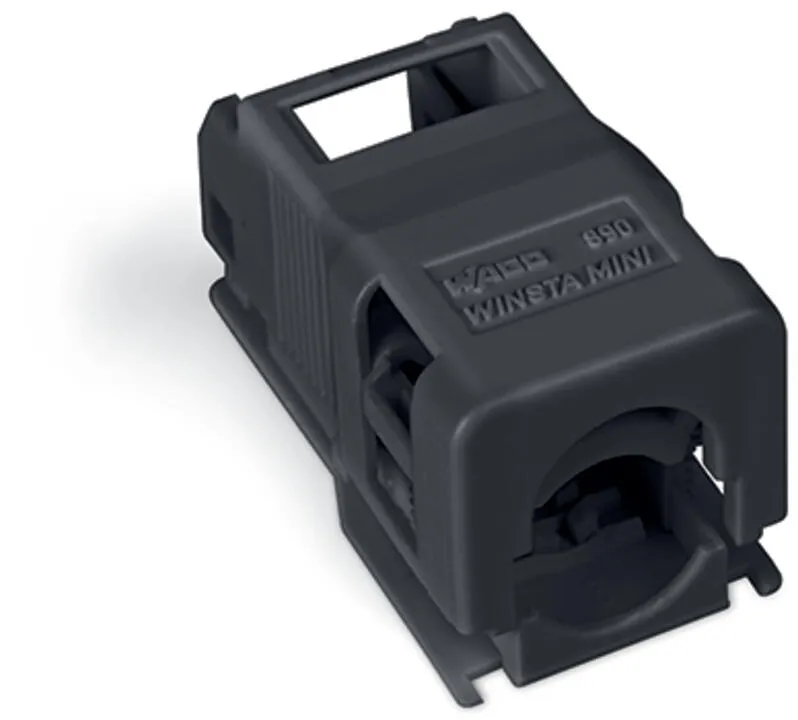

Wago 890-502/342-000
Strain relief housing WINSTA® MINI 2-poleThe strain relief housing from the WINSTA® MINI product line is the best solution for reliable installation. You can rely on the level of quality of WINSTA® co…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Strain relief housing WINSTA® MINI 2-poleThe strain relief housing from the WINSTA® MINI product line is the best solution for reliable installation. You can rely on the level of quality of WINSTA® components from WAGO for your electrical installation accessories too. WINSTA® MINI satisfies the demand for miniaturisation. Our smallest pluggable connection system is primarily suited for lights, for instance, since as a result of LED technology; due to complex systems, these offer significantly less space for the connection technology. The strip length is 17.5 mm.Lower costs through fast commissioning and elimination of service expenses – solutions from WINSTA® MINIWINSTA® is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It ensures error-free installation of cables and components, quickly and reliably. Now you can also lower installation costs without compromising safety and quality: with protection against mismating eliminates the need for servicing and prevents unnecessary downtime. consistent IP40 protectionconvenient installation and commissioning
Specification
Connection data - Connection 1
| Pole number | 2 |
|---|---|
| Connectable sheathed cable diameter | 3.8 … 8.2 mm |
| Strip length (outer insulation) | 17.5 mm |
Physical data
| Pin spacing | 4.4 mm / 0.173 inches |
|---|---|
| Width | 15.6 mm / 0.614 inches |
| Height | 13.2 mm / 0.52 inches |
| Depth | 29.7 mm / 1.169 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Insulation material (main housing) | Polyamide (PA66) |
| Fire load | 0.065 MJ |
| Weight | 2.1 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| PU (SPU) | 50 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821765554 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121722 |
|---|---|
| eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 |
| ETIM 10.0 | EC002863 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
