Wago 870-541/281-491
Double-deck terminal block, 870 Series, grayOur double-deck terminal block (item number 870-541/281-491) ensures effortless electrical installations. Conductors can only be connected to this double-de…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

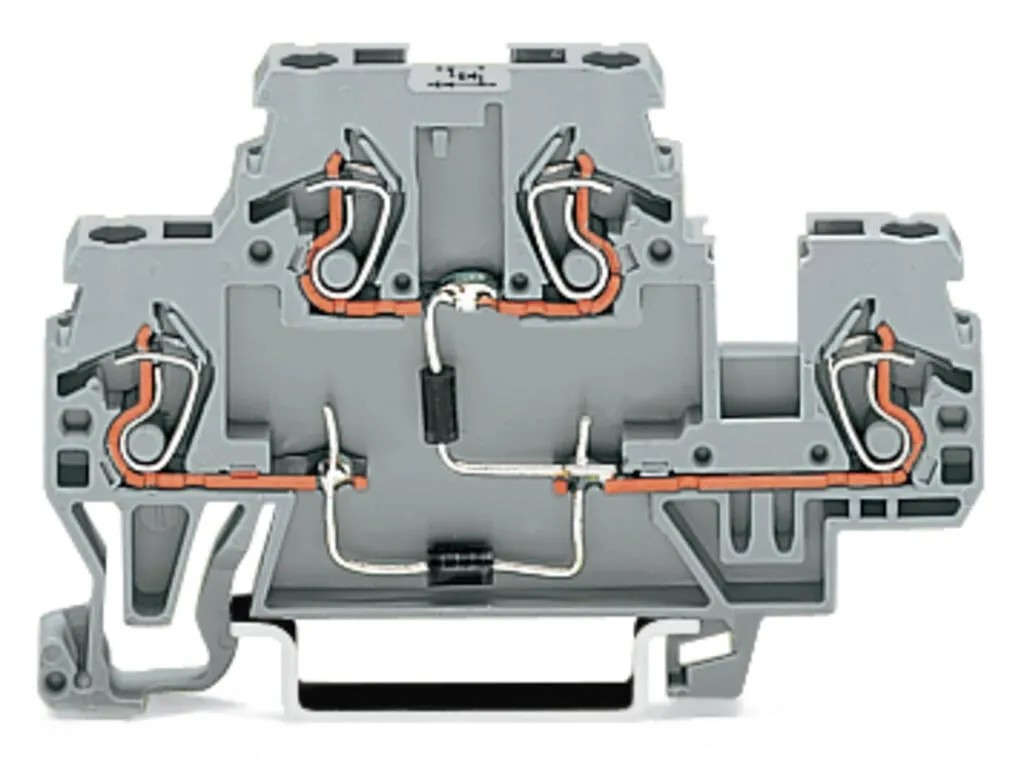

Double-deck terminal block, 870 Series, grayOur double-deck terminal block (item number 870-541/281-491) ensures effortless electrical installations. Conductors can only be connected to this double-deck terminal block if their strip length is between 6 and 7 mm . The double-deck terminal block also functions as a component terminal block with diode. This product features conductor terminals and utilizes CAGE CLAMP®. Our CAGE CLAMP® connection offers a safe and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This double-deck terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm².
Specification
Notes
| Safety Information | Max. insulation diameter: 4.4 mm |
|---|
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Rated current | 0.5 A |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - General information
| Nominal voltage | 250 V |
|---|---|
| Reverse voltage | 1,000 V |
| Number/type of diode/LED | with 2 1N4007 diodes |
| Wiring direction | Front-entry wiring |
Connection data
| Clamping units | 4 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 2 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5 mm² / 28 … 14 AWG |
| Strip length | 6 … 7 mm / 0.24 … 0.28 inches |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 5 mm / 0.197 inches |
|---|---|
| Height | 70 mm / 2.756 inches |
| Depth from upper-edge of DIN-rail | 40 mm / 1.575 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.193 MJ |
| Weight | 9.4 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454198626 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | d7aa464d-6f68-4ffa-a04d-525be742a419 |
| SCIP notification number (Belgium) | e213ab4b-908b-4f81-930f-65de789efeb0 |
| SCIP notification number (Bulgaria) | aaf619be-ad95-4eda-b08a-b2d0ef47b9bc |
| SCIP notification number (Czech Republic) | 284fd504-16b4-48ca-bb2d-075fa67c4c18 |
| SCIP notification number (Denmark) | ac362f82-4333-41be-b643-15c5346bb3f2 |
| SCIP notification number (Finland) | cc5b9ca8-7245-4c23-b296-2e723a83fc2f |
| SCIP notification number (France) | 54777ce0-7595-4e4b-ab9b-de1f150db3cc |
| SCIP notification number (Germany) | 7b5af52c-8967-401a-8f00-2280d62e6c7b |
| SCIP notification number (Hungary) | 2dff7c17-90a6-4fc8-814d-aca62b1a4c78 |
| SCIP notification number (Italy) | fa88923d-cab5-4c40-8053-7e15ce58a8c4 |
| SCIP notification number (Netherlands) | d20a2a24-52fb-46f1-bc58-043ec4e93c6b |
| SCIP notification number (Poland) | 6b4b105c-6537-40a2-91a6-9b95a06f47b4 |
| SCIP notification number (Romania) | b9ec7038-de30-49a9-a78c-8f10d2ab948a |
| SCIP notification number (Sweden) | 987fbee2-890a-4465-995c-56e90fefc6b3 |
