Double-deck terminal block, 870 Series, operating toolThis double-deck terminal block (item number 870-541/281-490) provides fault-free electrical installations. Ensure that the strip lengths are betw…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

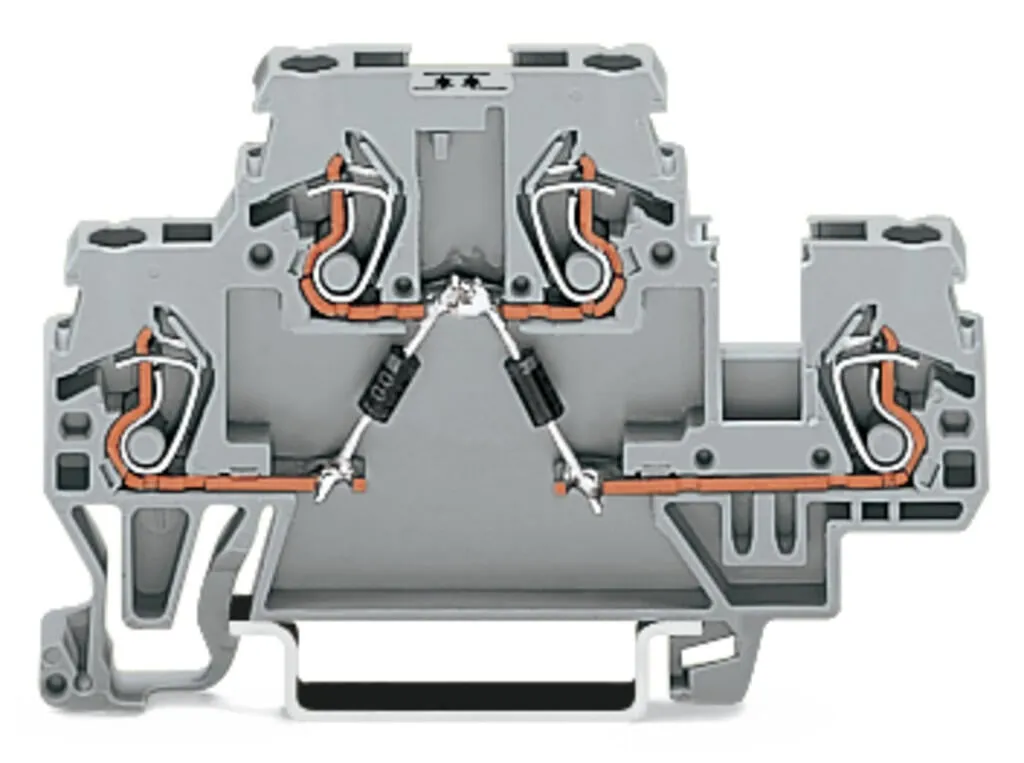

Double-deck terminal block, 870 Series, operating toolThis double-deck terminal block (item number 870-541/281-490) provides fault-free electrical installations. Ensure that the strip lengths are between 6 and 7 mm when connecting conductors to this double-deck terminal block. The double-deck terminal block also serves as a component terminal block with diode. Featuring conductor terminals along with CAGE CLAMP®, this product is highly versatile. Our CAGE CLAMP® connection provides a dependable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This double-deck terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm².
Specification
Notes
| Safety Information | Max. insulation diameter: 4.4 mm |
|---|
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Rated current | 0.5 A |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - General information
| Nominal voltage | 250 V |
|---|---|
| Reverse voltage | 1,000 V |
| Number/type of diode/LED | with 2 1N4007 diodes |
| Wiring direction | Front-entry wiring |
Connection data
| Clamping units | 4 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 2 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5 mm² / 28 … 14 AWG |
| Strip length | 6 … 7 mm / 0.24 … 0.28 inches |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 5 mm / 0.197 inches |
|---|---|
| Height | 70 mm / 2.756 inches |
| Depth from upper-edge of DIN-rail | 40 mm / 1.575 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.193 MJ |
| Weight | 9.8 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454198619 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | 23363c90-fb7e-4502-840f-555da8229fd3 |
| SCIP notification number (Belgium) | c6e6c778-f017-4faf-b909-2ae226340886 |
| SCIP notification number (Bulgaria) | c6cc175a-1462-4418-baba-c9032032bc8f |
| SCIP notification number (Czech Republic) | ed795c8c-9402-4948-af62-bfd37b015e07 |
| SCIP notification number (Denmark) | 6d47dc61-29ec-4e2a-bbfc-b11b337a4a3d |
| SCIP notification number (Finland) | e2e67656-f3fc-4ec5-a9a4-226d611cf263 |
| SCIP notification number (France) | 3a43cb96-6c13-4876-abc7-26206a51e0cb |
| SCIP notification number (Germany) | dc855098-9189-4db5-8e56-52556b9d5b66 |
| SCIP notification number (Hungary) | 42eb193a-d109-4ea0-839e-2ebd35bb5472 |
| SCIP notification number (Italy) | b6087fb4-b706-44cb-a9a9-df907f6c3a6d |
| SCIP notification number (Netherlands) | 5eb6a1f6-b00e-4038-81a9-cfd371df2764 |
| SCIP notification number (Poland) | 9f9960f5-c126-4ed0-a5d4-c87193a9cef1 |
| SCIP notification number (Romania) | 83b592b2-844c-41d0-969d-6de183c45f30 |
| SCIP notification number (Sweden) | 1e285cb3-57bc-4602-906d-14ea039fece0 |
