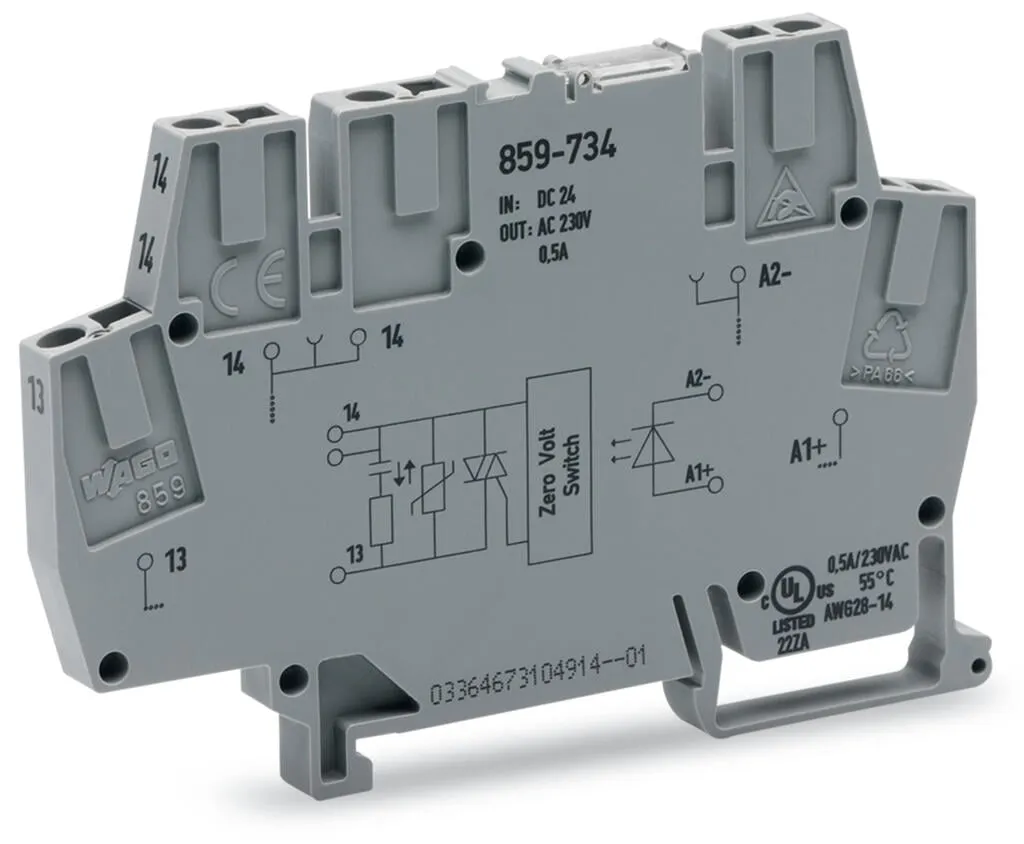

Wago 859-734
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range 12 … 260VAC; Limiting continuous current: 1 A; 2-wire connection; zero-cross switching; Red status indicator; Module width: 6…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range 12 … 260VAC; Limiting continuous current: 1 A; 2-wire connection; zero-cross switching; Red status indicator; Module width: 6 mm; light gray 859-734
Specification
Notes
| Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. |
|---|
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 24 VDC |
|---|---|
| Input voltage range | 16 … 30 VDC |
| Input voltage range (low level) | 0 … 5 VDC |
| Input voltage range (high level) | 19 … 28.8 VDC |
| Nominal input current at U<sub>N</sub> | 7 mA |
| Input current range | 2 … 9 mA |
Technical data - Load circuit
| Circuit type | 2-wire connection, Zero-voltage switching |
|---|---|
| Limiting continuous current | 1 A |
| Peak output current | 30 A |
| Nominal output voltage | 230 VAC |
| Output voltage range | 12 … 260 VAC (50 … 60 Hz) |
| Voltage drop | ≤ 1.2 VAC |
| Leakage current at rated voltage | ≤ 1 mA |
| Switching current (min.) | 10 mA |
| Turn-on time | ≤ 10 ms |
| Turn-off time | ≤ 10 ms |
| Switching frequency | 50 Hz / 60 Hz |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 300 V |
|---|---|
| Type of circuits | Mains circuits |
| Overvoltage category | III |
| Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1Â min) | 3.5 kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
| Insulation type (to adjacent devices of different types) | Basic insulation |
| Protection type | IP20; in connected state or when using 859-525 end plate |
Connection data
| Connection technology | CAGE CLAMP® |
|---|---|
| Solid conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.14 … 2.5 mm² / 26 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.14 … 1.5 mm² / 26 … 16 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 91 mm / 3.583 inches |
| Depth from upper-edge of DIN-rail | 56 mm / 2.205 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Mounting position | horizontal (standing/lying); vertical |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Material group | I |
| Flammability class per UL94 | V0 |
| Fire load | 0.313 MJ |
| Weight | 20.2 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
|---|---|
| Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +40 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Processing temperature | -25 … +50 °C |
| Temperature range of connection cable | ≥ (Tambient + 20 K) |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 61010-2-201, EN 61000-6-2, EN 61000-6-3, UL 508 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966181890 |
| Customs tariff number | 85365005000 |
Product Classification
| UNSPSC | 39121524 |
|---|---|
| eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 9.0 | 27-26-15-03 |
| ETIM 9.0 | EC001504 |
| ETIM 10.0 | EC001504 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 2d0aafc9-69f4-4dfe-91a6-5392066639a2 |
| SCIP notification number (Belgium) | d2e3bbb4-8e0e-4856-b782-f2d27110ca67 |
| SCIP notification number (Bulgaria) | 1aeddf05-e4bb-42a6-8024-b74fc8dbce10 |
| SCIP notification number (Czech Republic) | 039f9c15-9145-41d3-98f7-686100879009 |
| SCIP notification number (Denmark) | 883bc000-50ee-4c40-8874-7868869e1042 |
| SCIP notification number (Finland) | 563d3714-75c9-4f52-acdf-6f2546010694 |
| SCIP notification number (France) | db3f26aa-b414-4b7a-8fb8-849f2571e5c8 |
| SCIP notification number (Germany) | c022c058-8013-4a80-a4c2-6f63c4150232 |
| SCIP notification number (Hungary) | 1612fe70-16f0-45c4-a93a-9465f512100c |
| SCIP notification number (Italy) | 3cce7617-5d8f-49a6-87be-01cd8af4c5b4 |
| SCIP notification number (Netherlands) | 3ec2c466-ec96-4aa7-bfa1-9ba2139958f0 |
| SCIP notification number (Poland) | dfe413ee-e39f-4ca9-b4d3-d0190017b7ea |
| SCIP notification number (Romania) | a01ee6cb-183d-4fef-a557-c4b4b1b89467 |
| SCIP notification number (Sweden) | 19b6011e-cc4a-4fb0-8127-219ad4ff43b4 |
