Wago 859-732

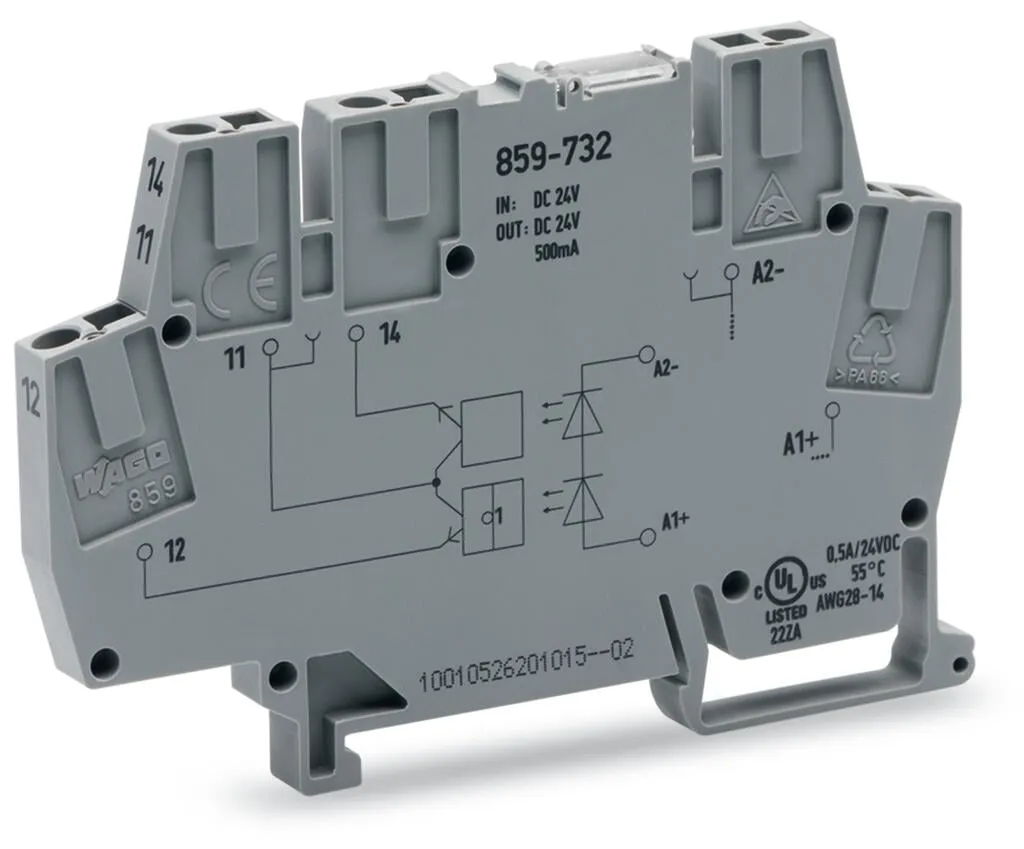

Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 3 … 30 VDC; Limiting continuous current: 1 A; 1 changeover contact; Red status indicator; Module width: 6 mm; gray 859-732
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 3 … 30 VDC; Limiting continuous current: 1 A; 1 changeover contact; Red status indicator; Module width: 6 mm; gray 859-732
Specification
Notes
| Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. |
|---|
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 24 VDC |
|---|---|
| Input voltage range | 14 … 60 VDC |
| Input voltage range (low level) | 0 … 9 VDC |
| Input voltage range (high level) | 14 … 60 VDC |
| Nominal input current at U<sub>N</sub> | 6 mA |
| Input current range | 3.5 … 9 mA |
Technical data - Load circuit

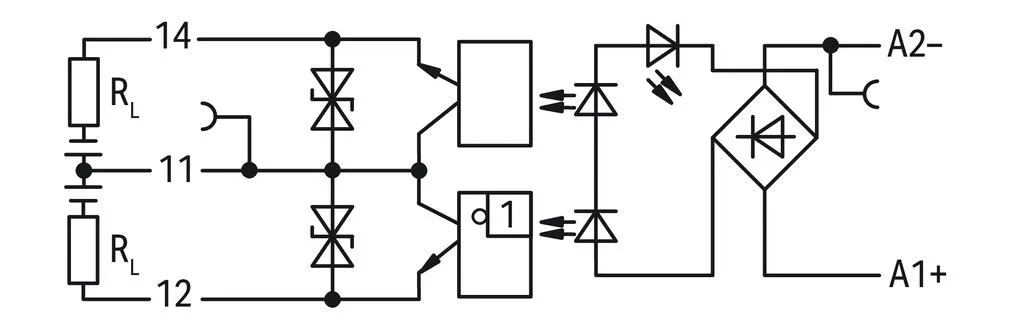

| Circuit type | Changeover contact output |
|---|---|

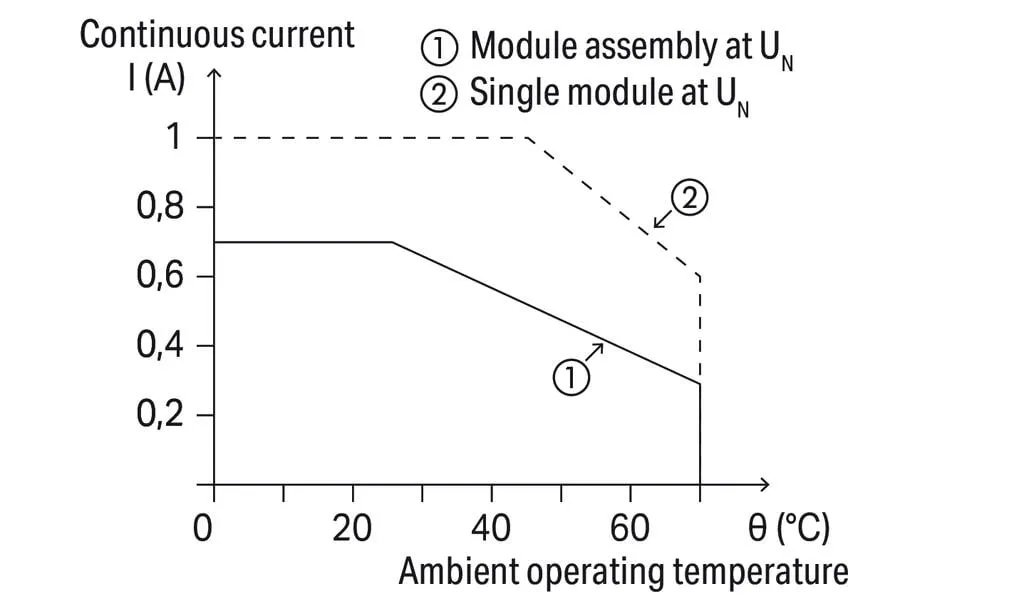

| Limiting continuous current | 1 A |
| Peak output current | 5 A |
| Nominal output voltage | 24 VDC |
| Output voltage range | 3 … 30 VDC |
| Voltage drop | ≤ 1.5 VDC |
| Leakage current at rated voltage | ≤ 1.3 mA |
| Switching current (min.) | 0.5 mA |
| Turn-on time | ≤ 35 µs |
| Turn-off time | ≤ 30 µs |
| Rise time (t<sub>10-90</sub>) | 15 µs |
| Drop-out time (t<sub>90-10</sub>) | 5 µs |

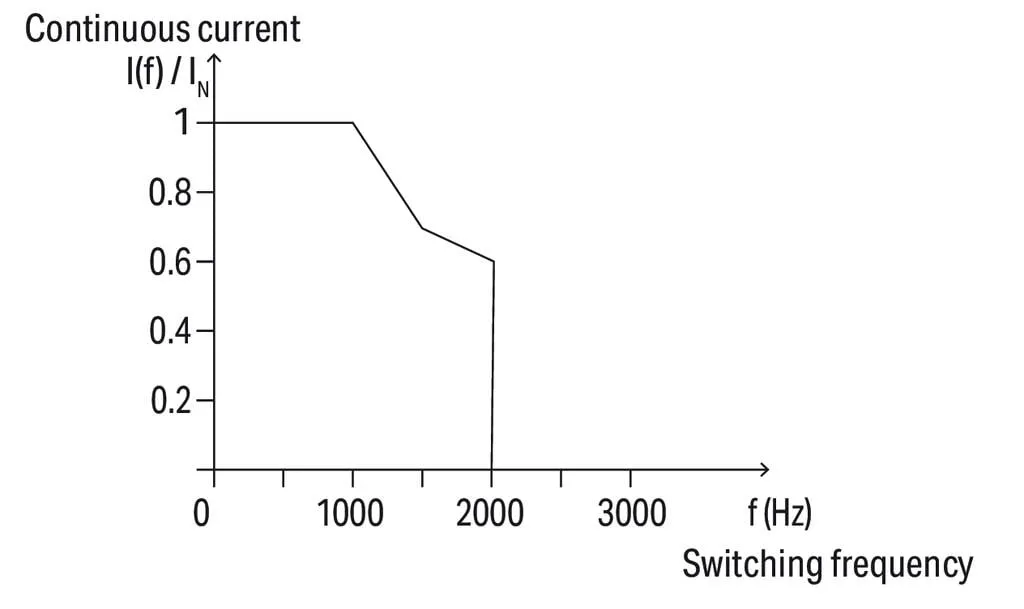

| Switching frequency | ≤ 2 kHz |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 300 V |
|---|---|
| Overvoltage category | II |
| Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 3.6 kVrms |
| Insulation type (control/load circuit) | Basic insulation |
| Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
| Insulation type (to adjacent devices of different types) | Basic insulation |
| Protection type | IP20; in connected state or when using 859-525 end plate |
Connection data
| Connection technology | CAGE CLAMP® |
|---|---|
| Solid conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.14 … 2.5 mm² / 26 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.14 … 1.5 mm² / 26 … 16 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 91 mm / 3.583 inches |
| Depth from upper-edge of DIN-rail | 56 mm / 2.205 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Mounting position | horizontal (standing/lying); vertical |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Material group | I |
| Flammability class per UL94 | V0 |
| Fire load | 0.313 MJ |
| Weight | 147.2 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
|---|---|
| Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Processing temperature | -25 … +50 °C |
| Temperature range of connection cable | ≥ (Tambient + 20 K) |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 61010-2-201, EN 61000-6-2, EN 61000-6-3, EN 61373, UL 508 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Bag |
| Country of origin | DE |
| GTIN | 4066966423457 |
| Customs tariff number | 85365005000 |
Product Classification
| UNSPSC | 39121524 |
|---|---|
| eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 9.0 | 27-26-15-03 |
| ETIM 9.0 | EC001504 |
| ETIM 10.0 | EC001504 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 57a1bfce-837f-496f-bb87-0ee73be0f0e5 |
| SCIP notification number (Belgium) | 755a3c6f-e35a-4e19-b0ee-512f065a91d0 |
| SCIP notification number (Bulgaria) | e6d20177-d9e9-4a78-9d60-e43717e28e57 |
| SCIP notification number (Czech Republic) | 9dfd4bfb-cc1c-49eb-a1c1-0b64d00f099b |
| SCIP notification number (Denmark) | 4c323740-8f20-466e-9042-0a076d1a8f0f |
| SCIP notification number (Finland) | 52d3c9ba-3d90-471c-a170-7c09458e40d2 |
| SCIP notification number (France) | ad0e707f-7039-4e88-9ee3-ed5d487a2e2a |
| SCIP notification number (Germany) | ea40552f-92f5-46de-87e1-b73fe04e3250 |
| SCIP notification number (Hungary) | 5cd57c02-e1c7-45e8-832f-d5c9a45f1673 |
| SCIP notification number (Italy) | bf075a59-b693-4567-9db7-e82f4962eeb3 |
| SCIP notification number (Netherlands) | 70584d00-5997-4863-bc45-b1f5a8b5a599 |
| SCIP notification number (Poland) | e83132b9-f4af-4c38-9e4e-a25a8341e444 |
| SCIP notification number (Romania) | b75c4036-3d4b-4a67-a7ab-5835dc0fe98b |
| SCIP notification number (Sweden) | 563094d4-9f00-4d26-b4a7-3150d5361492 |
