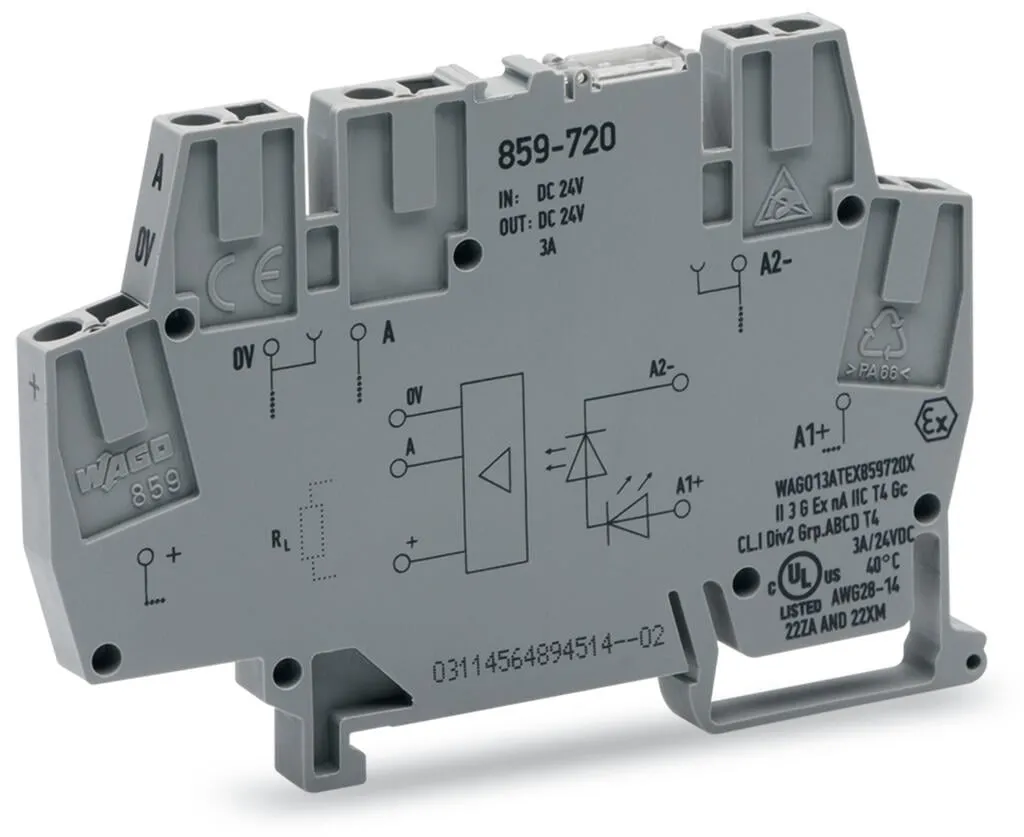

Wago 859-720
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 10 … 30 VDC; Limiting continuous current: 3 A; 3-wire connection/low-side switching; Red status indicator; Module width: 6 mm;…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 10 … 30 VDC; Limiting continuous current: 3 A; 3-wire connection/low-side switching; Red status indicator; Module width: 6 mm; gray 859-720
Specification
Notes
| Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. |
|---|
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 24 VDC |
|---|---|
| Input voltage range (low level) | 0 … 3 VDC |
| Input voltage range (high level) | 16 … 30 VDC |
| Nominal input current at U<sub>N</sub> | 4 mA |
Technical data - Load circuit
| Circuit type | 3-wire connection, Low-side switching |
|---|---|
| Limiting continuous current | 3 A |
| Peak output current | 20 A |
| Nominal output voltage | 24 VDC |
| Output voltage range | 10 … 30 VDC |
| Voltage drop | ≤ 0.5 VDC |
| Leakage current at rated voltage | ≤ 25 µA |
| Turn-on time | ≤ 30 µs |
| Turn-off time | ≤ 75 µs |
| Rise time (t<sub>10-90</sub>) | 16 µs |
| Drop-out time (t<sub>90-10</sub>) | 20 µs |
| Switching frequency | ≤ 2 kHz (< 0.5 A; ≤ 2 kHz / < 1 A; ≤ 1 kHz / < 2 A) |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 300 V |
|---|---|
| Overvoltage category | II |
| Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 2.5 kVrms |
| Insulation type (control/load circuit) | Basic insulation |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Protection type | IP20; in connected state or when using 859-525 end plate |
Connection data
| Connection technology | CAGE CLAMP® |
|---|---|
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 91 mm / 3.583 inches |
| Depth from upper-edge of DIN-rail | 56 mm / 2.205 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Mounting position | horizontal (standing/lying); vertical |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Material group | I |
| Flammability class per UL94 | V0 |
| Fire load | 0.513 MJ |
| Weight | 18.4 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -25 … +40 °C |
|---|---|
| Ambient temperature UL (operation at U<sub>N</sub>) | -25 … +40 °C |
| Ambient temperature (storage) | -40 … +70 °C |
| Processing temperature | -25 … +50 °C |
| Temperature range of connection cable | ≥ (Tambient + 20 K) |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 61010-2-201, EN 61000-6-2, EN 61000-6-3, EN 61373, UL 508 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Bag |
| Country of origin | DE |
| GTIN | 4066966423099 |
| Customs tariff number | 85365005000 |
Product Classification
| UNSPSC | 32101517 |
|---|---|
| eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 9.0 | 27-26-15-03 |
| ETIM 9.0 | EC001504 |
| ETIM 10.0 | EC001504 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
