Wago 859-302

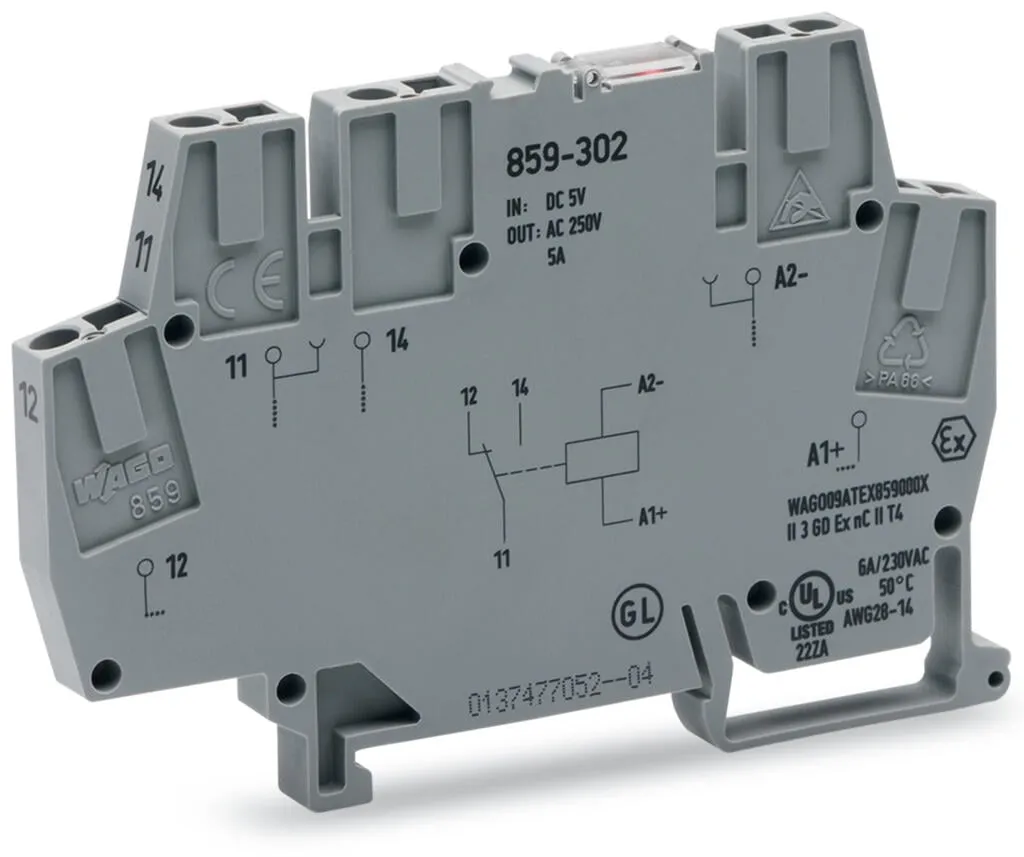

Relay module; Nominal input voltage: 5 VDC; 1 changeover contact; Red status indicator; Module width: 6 mm; 2,50 mm²; gray 859-302
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Relay module; Nominal input voltage: 5 VDC; 1 changeover contact; Red status indicator; Module width: 6 mm; 2,50 mm²; gray 859-302
Specification
Notes
| Note | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit. |
|---|
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 5 VDC |
|---|---|
| Input voltage range | -15 … +20 % |
| Nominal input current at U<sub>N</sub> | 31 mA |
Technical data - Load circuit
| Number of changeover/switchover contacts | 1 |
|---|---|
| Contact material (relay) | AgSnO2 |
| Limiting continuous current | 5 A |
| Inrush current (resistive) max. | (AC) 20 A / 0.02 s |
| Switching Voltage, Max. | 250 VAC |
| Switching power (resistive) max. | AC 1250 VA; DC (see load limit curve) |
| Switching capacity | AC-15: 3 A / 250 VAC; DC-13: 2 A / 24 VDC |
| Recommended minimum load | 10 V / 10 mA; 24 V / 1 mA |
| Pull-in time (typ.) | 15 ms |
| Drop-out time (typ.) | 25 ms |
| Bounce time (typ.) | 3.5 ms |
| Electrical life (NO; resistive load; 23 °C) | 50 x 10³ switching operations |
| Mechanical life | 5 x 10⁶ switching operations |
| Switching frequency with/without load (max.) | 6 min-1 / 180 min-1 |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 300 V |
|---|---|
| Rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 4 kVrms |
| Dielectric strength (open contact) (AC, 1 min) | 1 kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Protection type | IP20; in connected state or when using 859-525 end plate |
Connection data
| Connection technology | CAGE CLAMP® |
|---|---|
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 91 mm / 3.583 inches |
| Depth from upper-edge of DIN-rail | 56 mm / 2.205 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Mounting position | Horizontal (standing/lying); vertical |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Material group | I |
| Flammability class per UL94 | V0 |
| Fire load | 0.313 MJ |
| Weight | 22.1 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -40 … +50 °C |
|---|---|
| Ambient temperature (storage) | -40 … +70 °C |
| Processing temperature | -25 … +50 °C |
| Temperature range of connection cable | ≥ (Tambient + 20 K) |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 61010-2-201, EN 61810-1, EN 61373, UL 508, DNV |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 10 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143602587 |
| Customs tariff number | 85364900990 |
Product Classification
| UNSPSC | 39122334 |
|---|---|
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 9.0 | 27-37-16-01 |
| ETIM 9.0 | EC001437 |
| ETIM 10.0 | EC001437 |
| ECCN | NO US CLASSIFICATION |
