Wago 852-1505/000-001

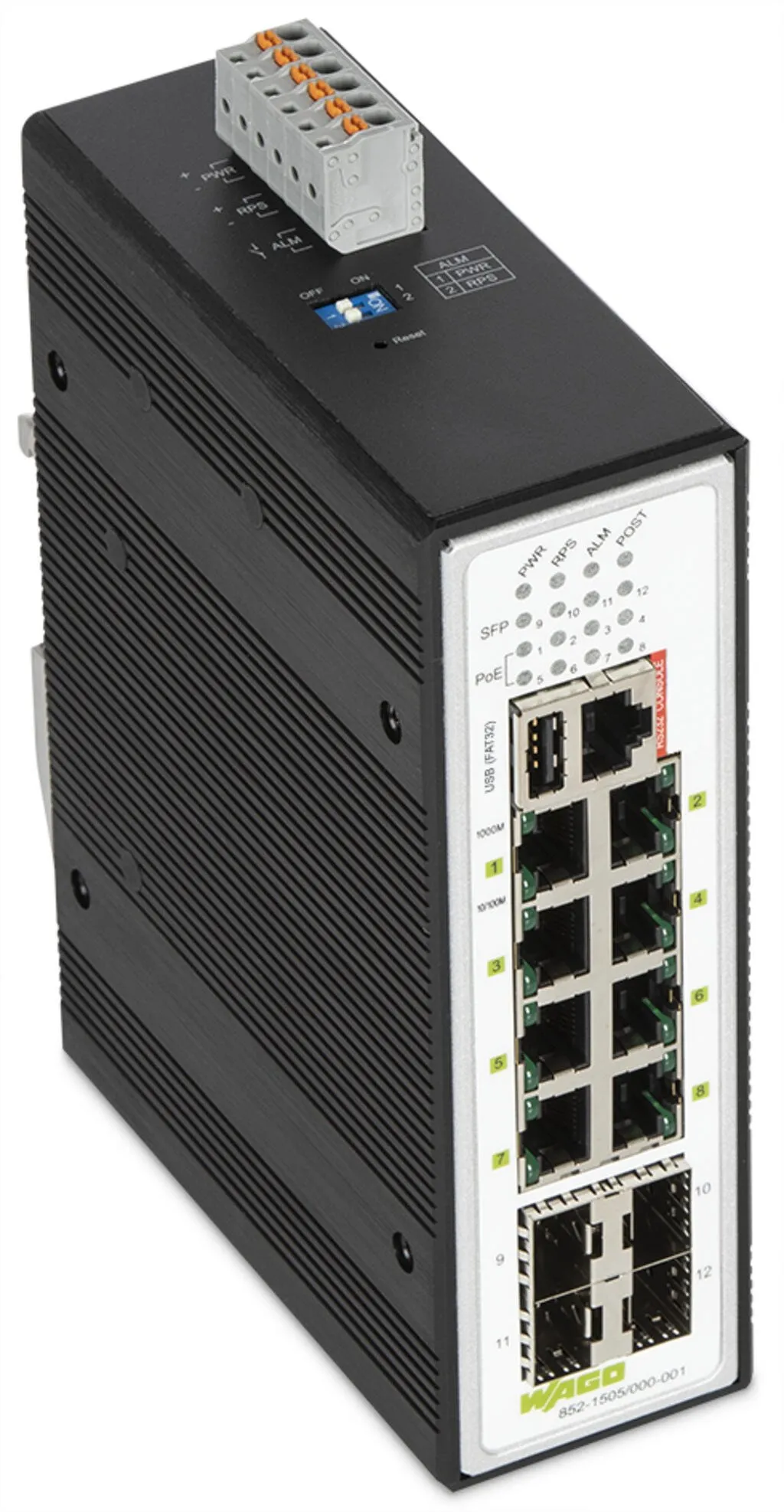

The 852-1505/000-001 Switch is an industrial, configurable ETHERNET switch featuring 8 ports (10/100/1000BASE-T), all of which support Power over Ethernet (PoE+) with 30 W, and 4 SFP slots for 1000BAS…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

The 852-1505/000-001 Switch is an industrial, configurable ETHERNET switch featuring 8 ports (10/100/1000BASE-T), all of which support Power over Ethernet (PoE+) with 30 W, and 4 SFP slots for 1000BASE-SX/LX (SFP modules are available as optional accessories). All eight PoE+ ports can be operated simultaneously.Packaged in a rugged housing, this switch offers both a redundant power supply and relay-based function monitoring. These functions, along with extensive ETHERNET switch options, make it ideal for a wide range of applications.Key Features:Web-based/SNMP managementRedundant DC power supplyPower supply range: 24 … 57 VDCDiagnostics via Modbus® and SNMPDIP switch for setting alarm functionsAuto-negotiation at all 10/100/1000BASE-T portsAuto-MDI/MDIX (crossover) at all 10/100/1000BASE-T portsIGMP snooping for multicast filteringPort configuration, status and statisticsPort trunkingSNMP v1/v2c and RMONApproval (IEC 61850-3) for the energy marketFirmware update and switch configuration via USB storage medium

Specification

Technical data

Switching modeStore-and-forward; non-blocking, Store‐and‐forward; non-blocking
Number of 1 Gb/s ports8
Number of 1 Gb/s ports SFP4
Communication standardsIEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at High Power over Ethernet (PoE+), ITU-T G8032v1/v2 Ethernet Ring Protection Switching (ERPS), IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX/LX, IEEE 802.3x Flow Control, IEEE 802.1d Spanning Tree Protocol (STP), IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1Q VLAN Tagging, IEEE 802.1p Prioritization, IEEE 802.1x Port Authentication, IEEE 802.1ab Link Layer Discovery Protocol (LLDP), IEEE 802.3ad Link Aggregation, IEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at High Power over Ethernet (PoE+), ITU-T G8032v1/v2 Ethernet Ring Protection Switching (ERPS)
Redundancy functionRedundant DC power supply; STP; RSTP; MSTP; Jet Ring < 300 ms; Xpress Ring < 20 ms; Dual Homing < 20 ms; Dual Ring; ERPSv2 < 50 ms; LACP, Redundant DC power supply; STP; RSTP; MSTP; Jet Ring < 300 ms; Xpress Ring < 20 ms; Dual Homing < 20 ms; Dual Ring; ERPSv2 < 50 ms; LCAP
Configuration optionsDIP switch for signal contact, Web-Based Management, Command Line Interface, SNMPv1/v2c/v3, USB storage medium
DiagnosticsAlarm contact; Alarm relay; NO; 1 A at 24 VDC
MAC table (size)16000 addresses
Jumbo frame size10000. Byte
Supply voltage24 … 57 VDC; 24 … 57 VDC (CE, UL); 24 VDC (DNV GL); 24, 48 VDC (LR), 24 … 57 VDC
Power consumption (max.)18 W
Power consumption (note)258 W with 8 PoE+
Current consumption (max.)6000 mA
ESD (contact/air discharge)8 KV / 15 KV
Transmission rateCopper cable: 10/1000 Mbit/s; Fiber optic:1000 Mbit/s
Transmission medium (communication/fieldbus)Copper cable: Cat. 5e or higher, 100 m maximum cable length; Fiber optic: SX Multi-Mode, LX Single-Mode
Optical fiber typeSingle-Mode and Multi-Mode
VLANPort-based and tag-based (4k VIDs)
Power over Ethernet (PoE) featuresAvailable power for powered devices (PD): 25.5 W, Power output (max.) of power sourcing equipment (PSE): 30 W, Voltage (PSE): 24 … 57 VDC, Voltage (PD): 50…57 VDC, Current (max.): 600 mA, Resistance (max.): 12.5 Ω (Category 5), PoE power budget: 240 W (48 VDC), 120 W (24 VDC), PoE operating mode: Mode A
Control Elements14 x DIP switch: Alarm function power supplies and ports 1 … 12

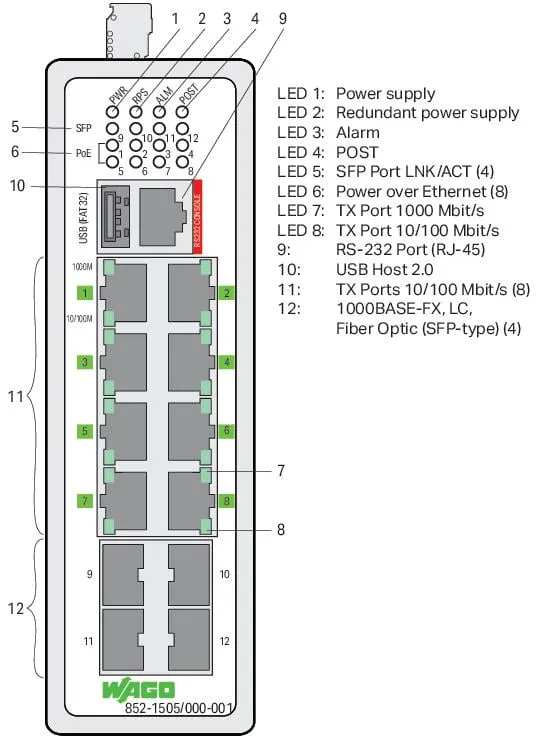

IndicatorsDevice: LED (PWR, RPS, POST) green: power supply (primary), redundant power supply (secondary), POST function; LED (ALM) red: Alarm; LED (SFP) green, Status fiber optic ports; per port: LED (1000M, 10/100M) green, yellow: Status 1000 Mbps, 10/100 Mbps ports 1 … 8

Connection data

Connection technology: communication/fieldbusCopper cable: 8 x RJ-45; Fiber optic: 4 x SFP slots (e.g., with SFP module and LC fiber-optic connector), Copper cable: 8 x RJ-45; Fiber optic: 4 x SFP; LC fiber-optic connector
Connection technology: supply1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 2231-106/026-000, 1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 2231-106/026-000

Physical data

Width50 mm / 1.969 inches, 50 mm / 1.969 inch
Height162 mm / 6.378 inches, 162 mm / 6.378 inch
Depth120 mm / 4.724 inches, 120 mm / 4.724 inch

Mechanical data

Weight955 g
Colormetallic black
Housing materialAluminum
Conformity markingCE

Environmental requirements

Ambient temperature (operation)-40 … +70 °C (-40 … +70 °C (CE); -10 … +60 °C (UL); -25 … +70 °C (DNV GL); +5 … +70 °C (LR)), -40 … 70 °C
Ambient temperature (storage)-40 … +80 °C, -40 … 80 °C
Protection typeIP30
Note on protection typeUse per UL 61010: Indoor
Pollution degree2 per UL 61010
Relative humidity (without condensation)95 %
Mounting typeDIN-35 rail
Mounting (note)Compass safe distance: > 40 cm
Vibration resistancePer IEC 60068-2-6, per IEC 60068-2-6
Shock resistanceper IEC 60068-2-27
EMC immunity to interferenceper EN 61000-6-2
EMC emission of interferenceper EN 61000-6-4
Fire load0.235, 0.234 MJ

Commercial data

PU (SPU)1 pcs, 1 Stück
Packaging typebox
Country of originTW
GTIN4055143897969
Customs tariff number85176200000

Product Classification

UNSPSC43222612
ETIM 9.0EC000734
ETIM 10.0EC000734
ECCN5A992.C

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
