Wago 852-1112/000-001

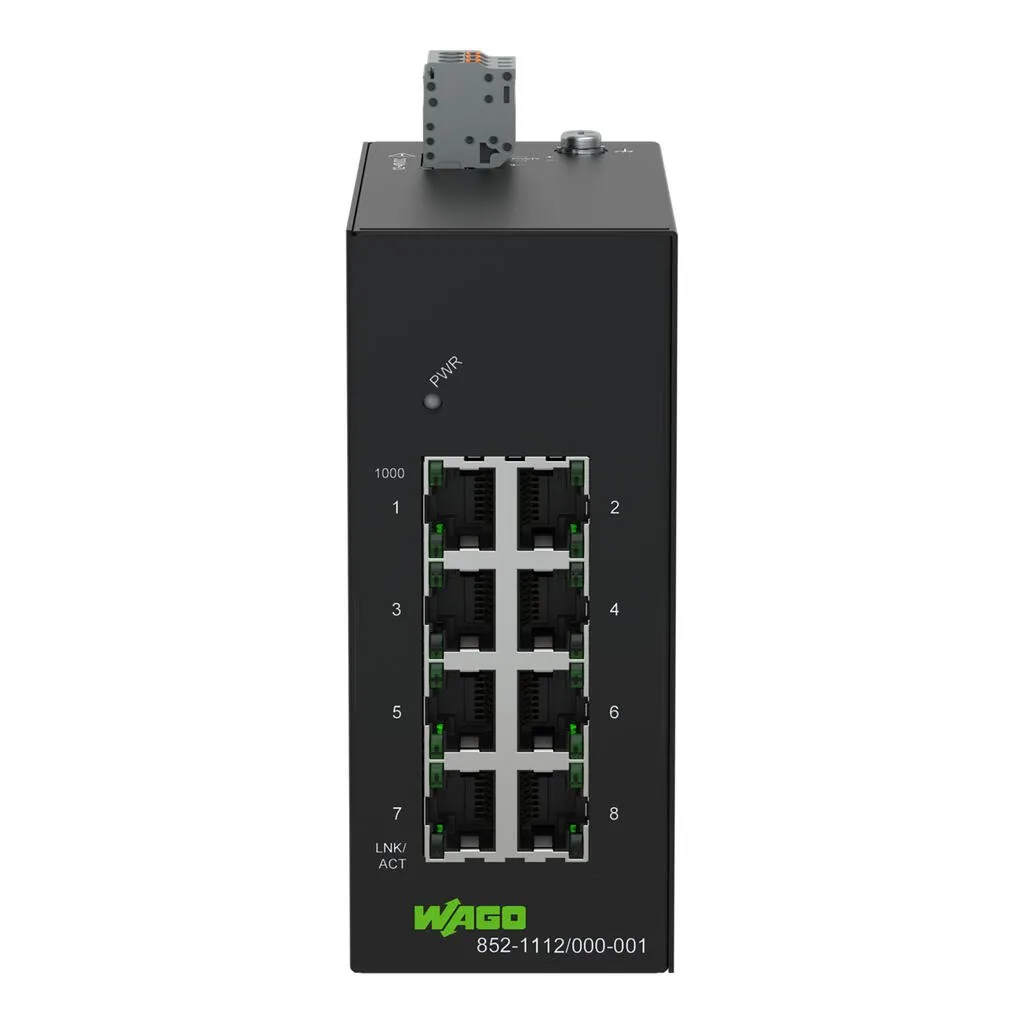

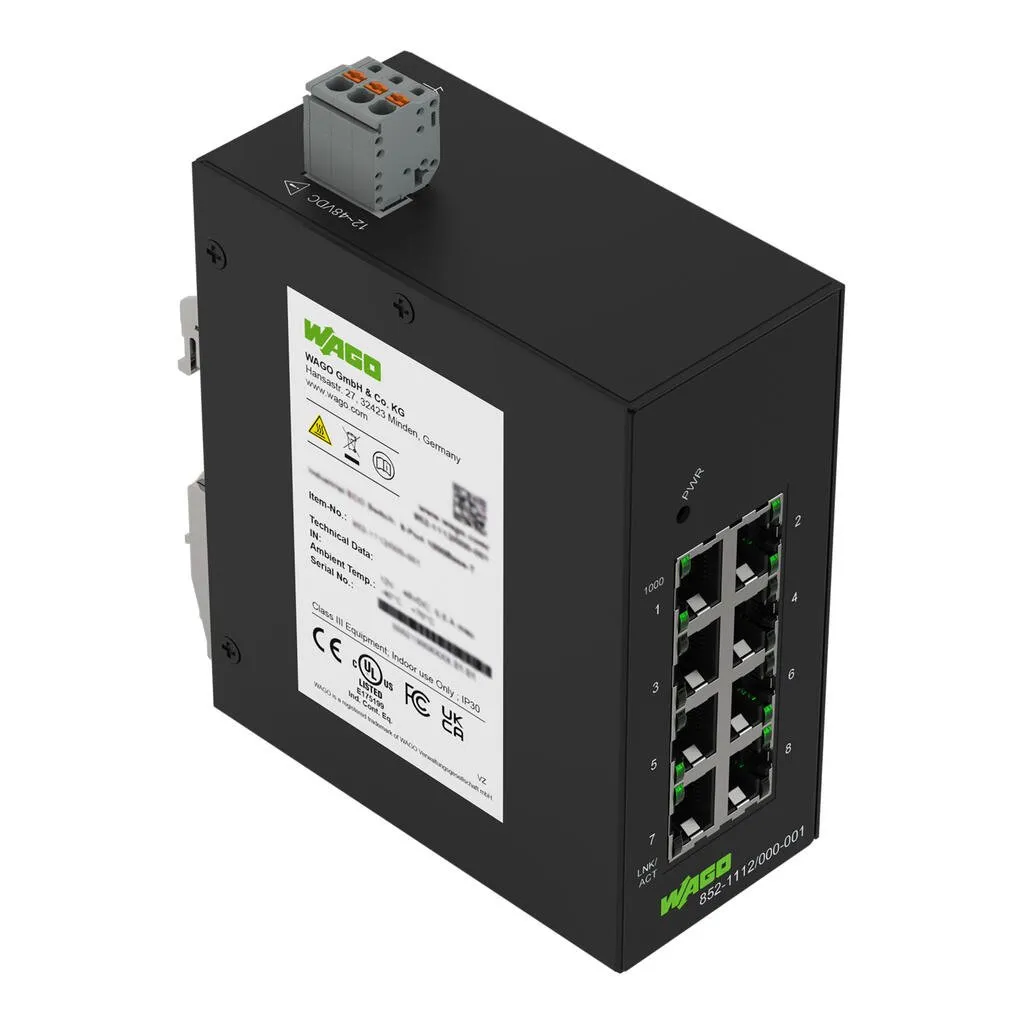

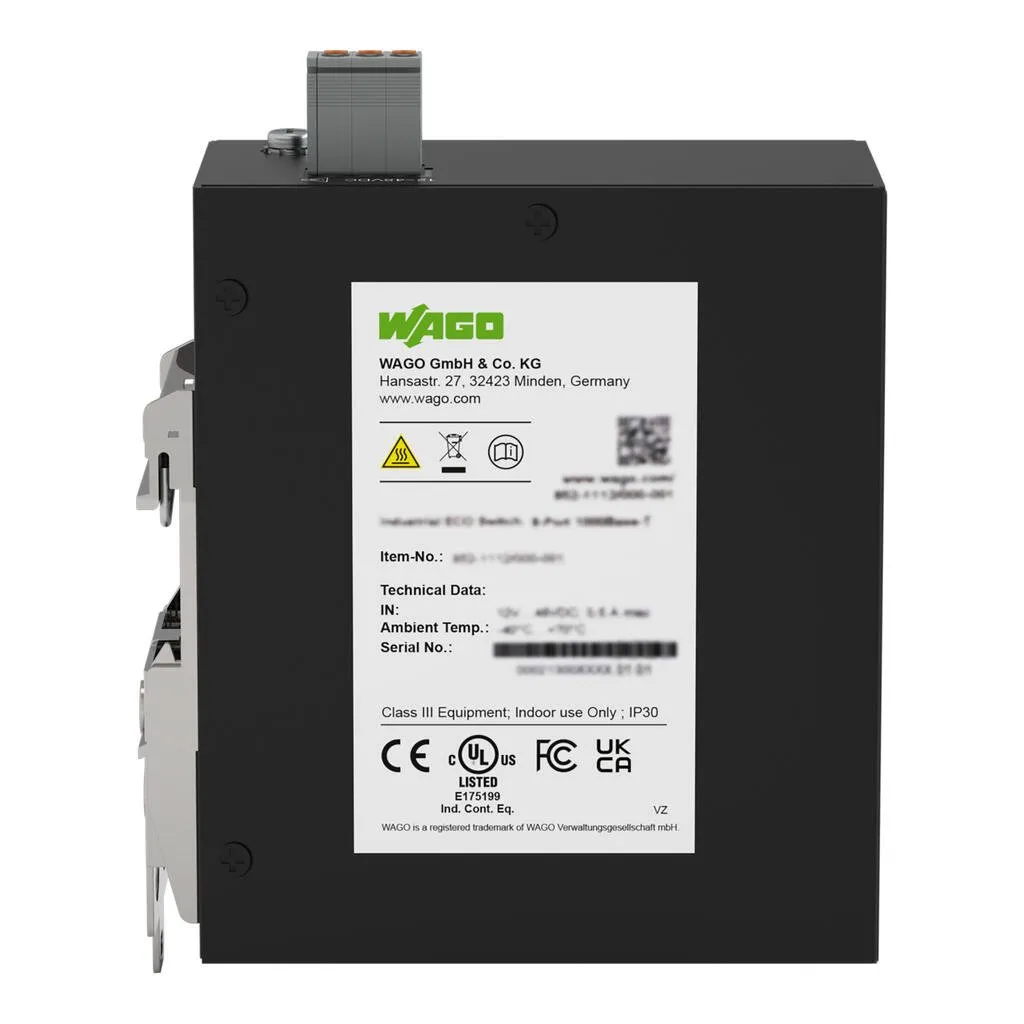

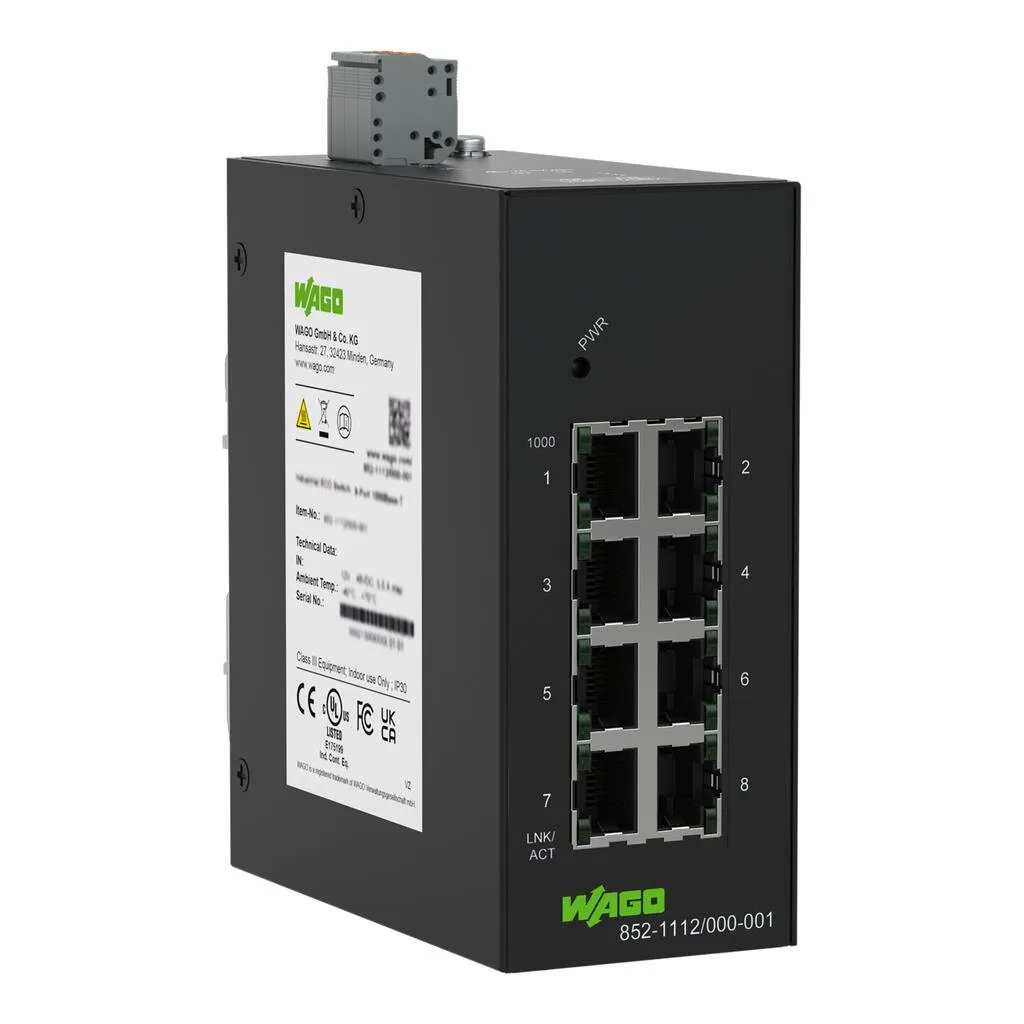

The 852-1112/000-001 Switch is an industrial unmanaged ETHERNET switch with 8 Gigabit Ethernet ports, designed for the straightforward setup of small to medium-sized networks. Its slim design paired w…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

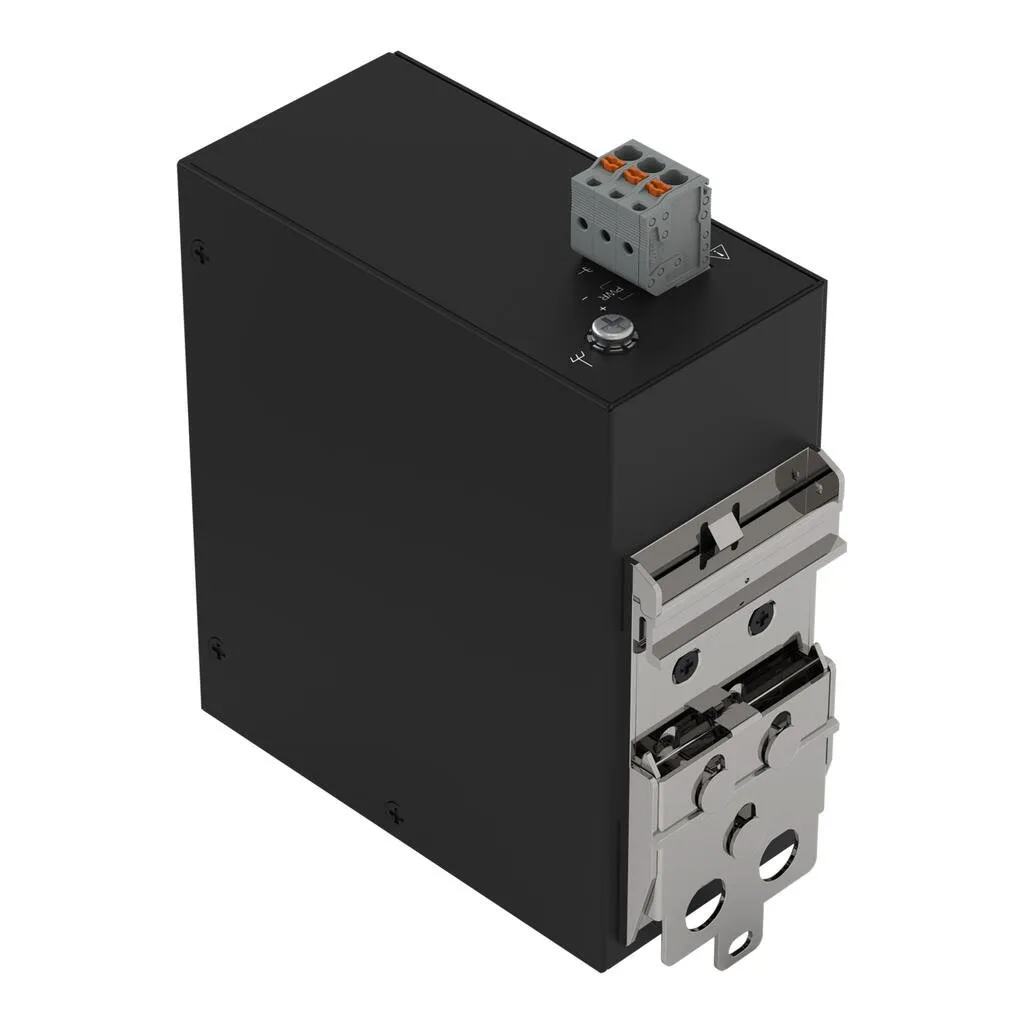

The 852-1112/000-001 Switch is an industrial unmanaged ETHERNET switch with 8 Gigabit Ethernet ports, designed for the straightforward setup of small to medium-sized networks. Its slim design paired with a DIN-rail adapter simplifies installation in control cabinets, while providing high vibration and shock resistance. Additionally, automatic transmission rate detection (auto-negotiation) and automatic identification of transmit and receive lines (Auto MDI-X) enable straightforward plug-and-play operation, reducing time and costs during commissioning. Key Features:8 Ethernet ports (10/100/1000 Mbit/s) with auto-negotiationFront-panel diagnostic LEDsSupports Auto-MDI/MDI-X functionsFull/half-duplex transfer modes for each portStore-and-forward switching methodIntegrated address look-up table, supports up to 4096 absolute MAC addressesOvervoltage protectionData flow control, per IEEE 802.3x Flow Control, in full duplex operationPrioritization of ETHERNET data packets (PROFINET protocol, EtherType=0x8892) per IEEE802.1pDIN-35 rail mounting
Specification
Technical data
| Switching mode | Store-and-forward; non-blocking |
|---|---|
| Number of 1 Gb/s ports | 8 |
| Communication standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3 Nway autonegotiation, IEEE 802.1p Prioritization |
| MAC table (size) | 4096 addresses |
| Jumbo frame size | 9216. Byte |
| Protection | Short circuit protection; overload protection; reverse voltage protection |
| Supply voltage | 12 … 48 VDC |
| Power consumption (max.) | 5 W |
| Current consumption (max.) | 500 mA |
| ESD (contact/air discharge) | 8 KV / 15 KV |
| Transmission rate | Copper cable: 10/1000 Mbit/s |
| Transmission medium (communication/fieldbus) | Copper cable: Cat. 5e or higher, 100 m maximum cable length |
| Topology | Star |

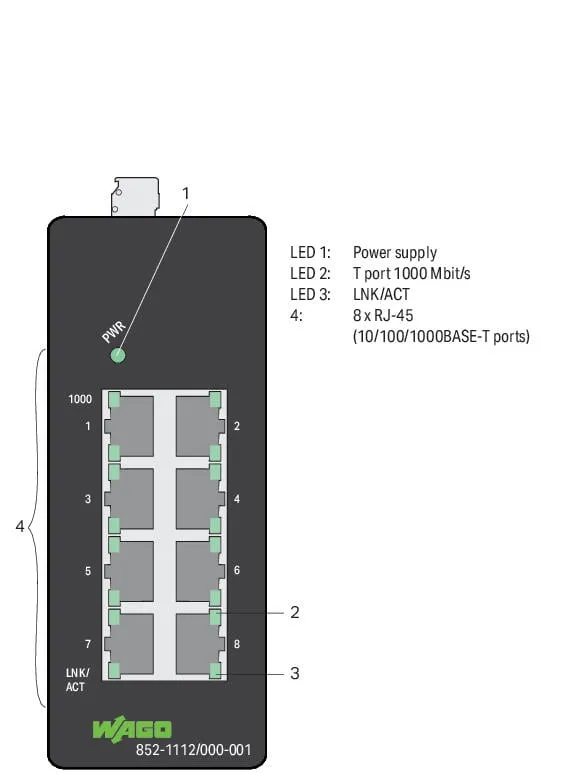

| Indicators | Device: LED (PWR) green: Power supply; per port: LED (1000) green: Status 1000 Mbps, 1000 Mbps ports 1 … 8 |
Connection data
| Connection technology: communication/fieldbus | Copper cable: 8 x RJ-45 |
|---|---|
| Connection technology: supply | 1 x Built-in male connector: 231-433/001-000; included female connector (MCS Connectors): 231-103/026-000 |
Physical data
| Width | 46 mm / 1.811 inches |
|---|---|
| Height | 116 mm / 4.567 inches |
| Depth | 110 mm / 4.331 inches |
| Depth from upper-edge of DIN-rail | 99.6 mm / 3.921 inches |
Mechanical data
| Weight | 518.6 g |
|---|---|
| Color | black |
| Housing material | Sheet steel |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -40 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP30 |
| Relative humidity (without condensation) | 95 % |
| Mounting type | DIN-35 rail |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | TW |
| GTIN | 4066966419139 |
| Customs tariff number | 85176200000 |
Product Classification
| UNSPSC | 43222612 |
|---|---|
| ETIM 9.0 | EC000734 |
| ETIM 10.0 | EC000734 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
