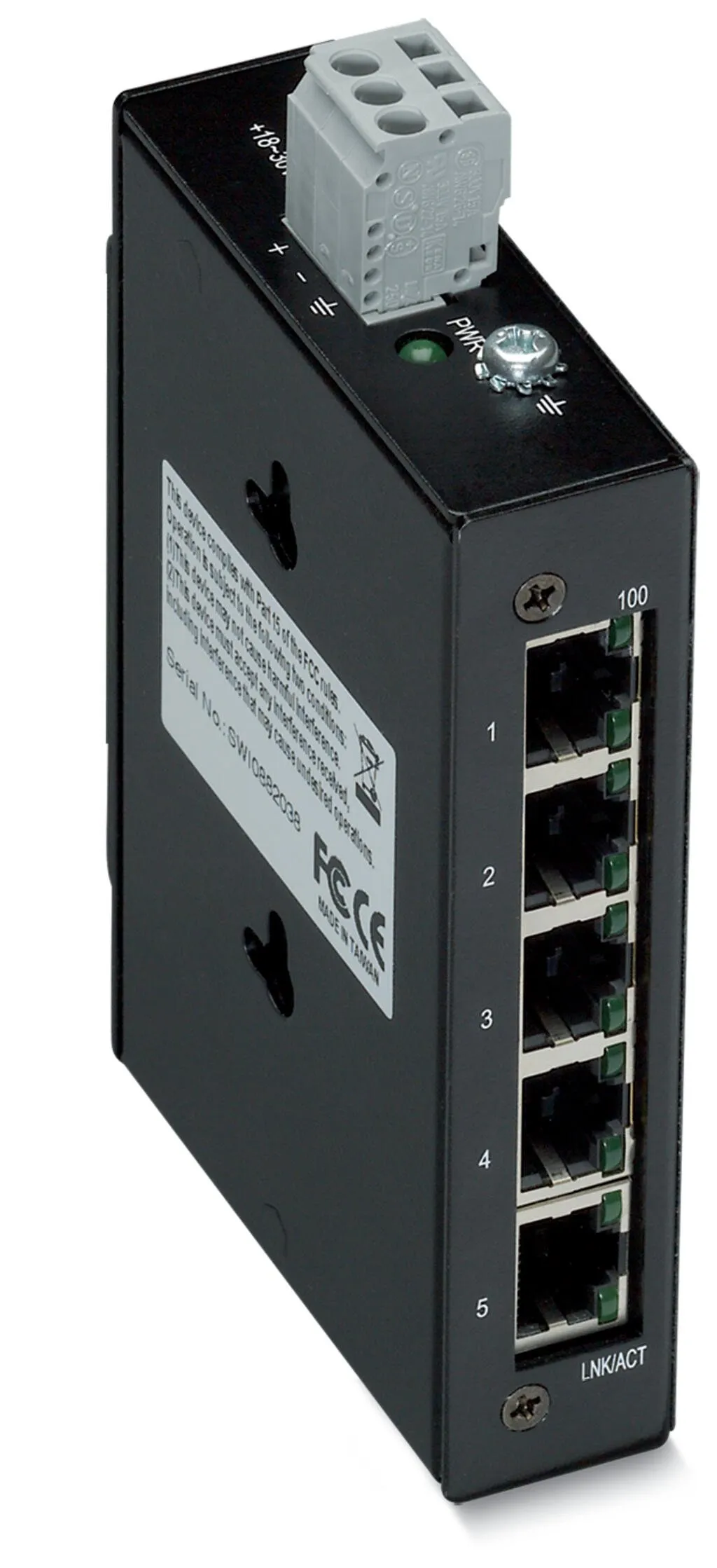

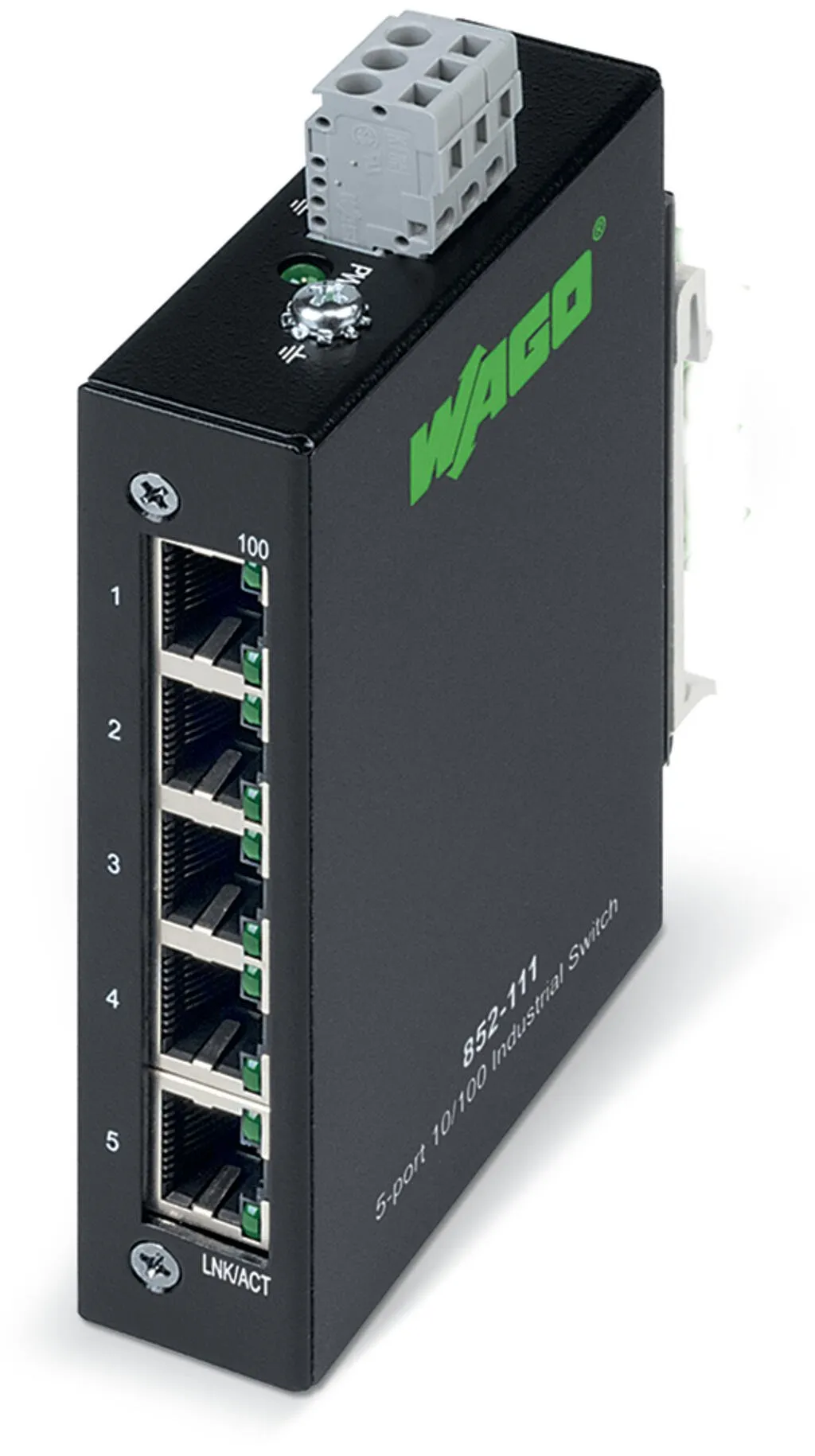

Wago 852-111
This unmanaged industrial ETHERNET switch (852-111) has five Fast ETHERNET ports for easily setting up small- to medium-sized networks. Its slim design paired with a DIN-rail adapter simplifies instal…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This unmanaged industrial ETHERNET switch (852-111) has five Fast ETHERNET ports for easily setting up small- to medium-sized networks. Its slim design paired with a DIN-rail adapter simplifies installation in the control cabinet and provides high vibration and shock resistance. Additionally, automatic transmission rate detection (auto-negotiation) and automatic identification of the transmit and receive lines (Auto MDI-X) allow simple plug-and-play operation, saving time and money during commissioning.Features:5 ETHERNET ports 10/100 Mbit/s AutonegotiationFront-panel diagnostic LEDsSupports Auto-MDI/MDI-X functionsFull/half-duplex transfer modes for each portStore-and-forward switching methodIntegrated address look-up table, supports 2000 absolute MAC addressesOvervoltage protectionData flow control, per IEEE 802.3x Flow Control, in full-duplex modeDIN-35 rail mounting
Specification
Technical data
| Switching mode | Store-and-forward; non-blocking |
|---|---|
| Number of 100 Mbps ports | 5 |
| Communication standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control |
| MAC table (size) | 2000 addresses |
| Jumbo frame size | 1536. Byte |
| Supply voltage | 18 … 30 VDC |
| Power consumption (max.) | 3 W |
| Current consumption (max.) | 150 mA |
| ESD (contact/air discharge) | 4 KV / 8 KV |
| Transmission rate | Copper cable: 10/100 Mbit/s |
| Transmission medium (communication/fieldbus) | Copper cable: Cat. 5 or higher, 100 m maximum cable length |
| Topology | Star |

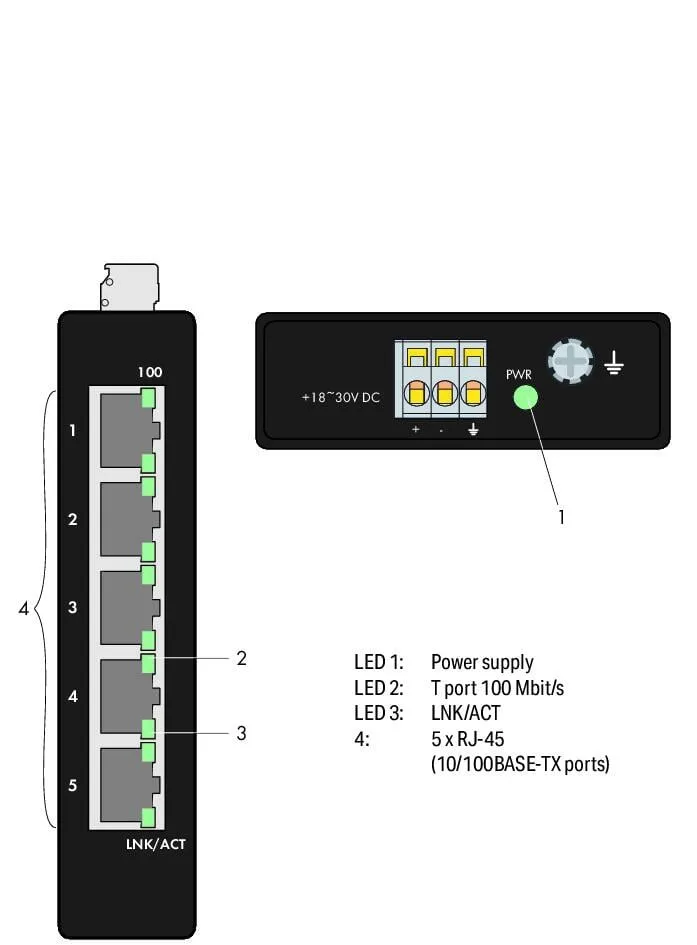

| Indicators | Device: LED (PWR) green: Power supply; per port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT port 1 … 5 |
Connection data
| Connection technology: communication/fieldbus | Copper cable: 5 x RJ-45 |
|---|---|
| Connection technology: supply | 1 x Built-in male connector: 231-433/001-000; included female connector (MCS Connectors): 231-103/026-000 |
Physical data
| Width | 23.4 mm / 0.921 inches |
|---|---|
| Height | 109.2 mm / 4.299 inches |
| Depth | 81 mm / 3.189 inches |
| Depth from upper-edge of DIN-rail | 73.8 mm / 2.906 inches |
Mechanical data
| Weight | 302 g |
|---|---|
| Color | black |
| Housing material | Sheet steel |
Environmental requirements
| Ambient temperature (operation) | -40 … +70 °C (UL max. +60 °C; -25 ... +70 °C (DNV GL) (see temperature class D)) |
|---|---|
| Ambient temperature (storage) | -40 … +80 °C |
| Protection type | IP30 |
| Note on protection type | Use per UL 61010: Indoor |
| Pollution degree | 2 per UL 61010 |
| Relative humidity (without condensation) | 95 % |
| Mounting type | Wall mount (horizontal or vertical) |
| Mounting type | Wall mounting (horizontal or vertical); Dimensions (W x H x D) for wall mounting: 97 x 109.2 x 23.4 mm |
| Mounting (note) | Standard Compass Safe Distance 0.3 Degree deflection: 1000 mm; Steering, Standby, Emergency Compass Safe Distance 1.0 Degree deflection: 650 mm |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
| Fire load | 5.28 MJ |
Commercial data
| Product Group | 27 (special components I/O) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | TW |
| GTIN | 4045454847593 |
| Customs tariff number | 85176200000 |
Product Classification
| UNSPSC | 43222612 |
|---|---|
| eCl@ss 10.0 | 19-17-01-30 |
| eCl@ss 9.0 | 19-17-01-06 |
| ETIM 9.0 | EC000734 |
| ETIM 10.0 | EC000734 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
