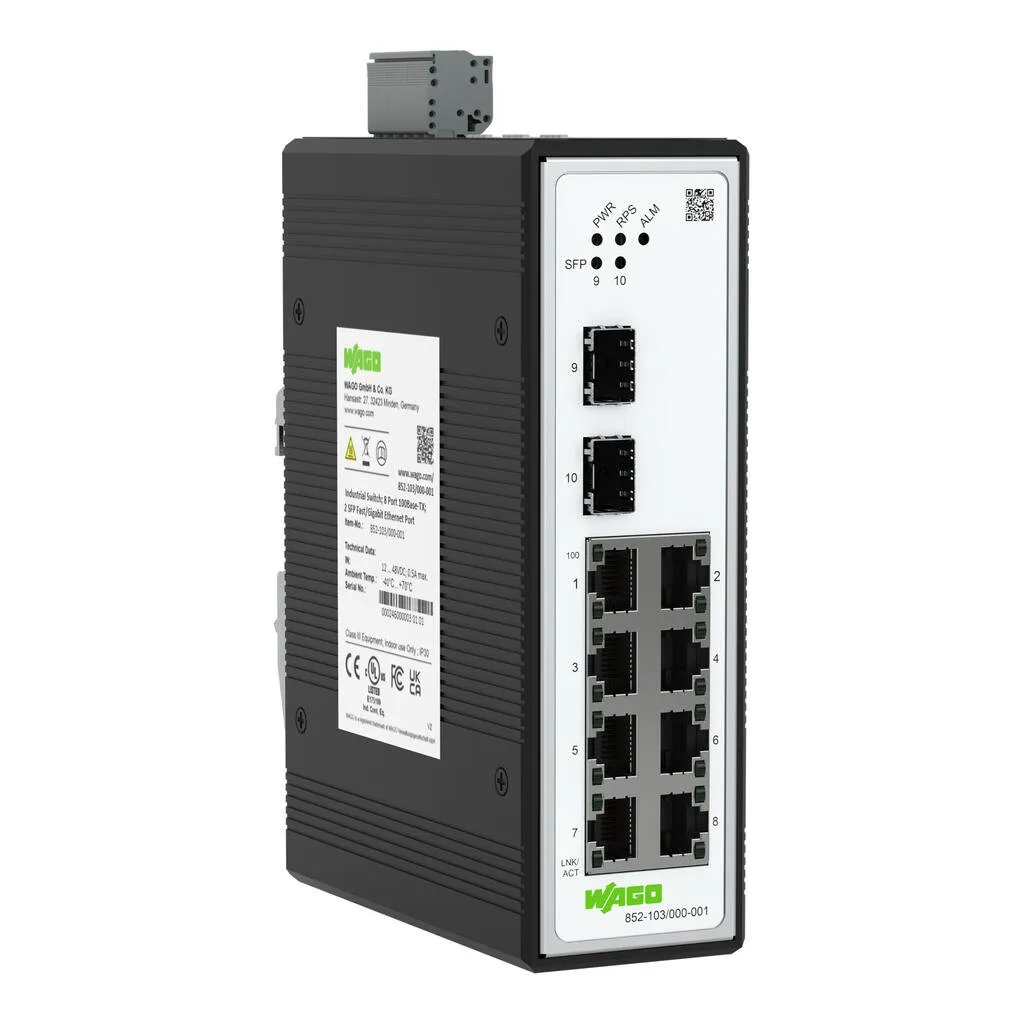

Wago 852-103/000-001
This unmanaged industrial ETHERNET switch (852-103/000-001) has eight Fast Ethernet ports and 2 SFP slots (1000BASE modules / speed setting with DIP switch) for easily setting up small- to medium-size…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This unmanaged industrial ETHERNET switch (852-103/000-001) has eight Fast Ethernet ports and 2 SFP slots (1000BASE modules / speed setting with DIP switch) for easily setting up small- to medium-sized networks. Its slim design paired with a DIN-rail adapter simplifies installation in the control cabinet and provides high vibration, shock and temperature resistance. Additionally, automatic transmission rate detection (auto-negotiation) and automatic identification of the transmit and receive lines (Auto MDI-X) allow simple plug-and-play operation, saving time and money during commissioning. Status LEDs, a redundant power supply and an alarm contact (configurable via DIP switch) increase the switch’s redundancy and diagnostic capabilities, providing higher operational uptime. Features:Redundant DC power supplyLarge supply voltage range: 12 … 48 VDIP switches for configuring alarmsCompatible with IEEE802.3i, 802.3u, 802.3z standardsNon-blocking, store-and-forward-switchingAutonegotiation on all 10/100BASE-T/TX-portsAuto-MDI/MDIX (crossover) on all 10/100BASE-T/TX-portsIntegrated address look-up table, supports up to 8000 absolute MAC addressesOvervoltage and reverse voltage protectionPrioritization of Ethernet data packets (PROFINET, Ethernet/IP, GOOSE, prioritization per IEEE 802.1Q/ 802.1p)Forwarding of IEEE 802.1Q data packets (VLAN pass-through)
Specification
Technical data
| Switching mode | Store-and-forward; non-blocking |
|---|---|
| Number of 100 Mbps ports | 8 |
| Number of 1 Gb/s ports SFP | 2 |
| Communication standards | IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX/FX, IEEE 802.3x Flow Control, IEEE 802.3 Autonegotiation, IEEE 802.1Q/ 802.1p Prioritization, IEEE 802.3z 1000BASE-X/LX/SX/ZX |
| Redundancy function | Redundant DC power supply |
| Configuration options | DIP switch for alarm relay |
| Diagnostics | Alarm relay; NO; 1 A at 24 VDC |
| MAC table (size) | 8000 addresses |
| Jumbo frame size | 9216. Byte |
| Supply voltage | 12 … 48 VDC; (±15 %); 12 … 48 VDC (UL) |
| Power consumption (max.) | 6 W |
| Current consumption (max.) | 500 mA |
| Transmission rate | Copper cable: 10/100 Mbit/s; Fiber optic:100/1000 Mbit/s |
| Transmission medium (communication/fieldbus) | Copper cable: Cat. 5e or higher, 100 m maximum cable length; Fiber optic: Transmission medium and achievable cable length depends on the SFP module |
| Optical fiber type | Single-mode and multi-mode |

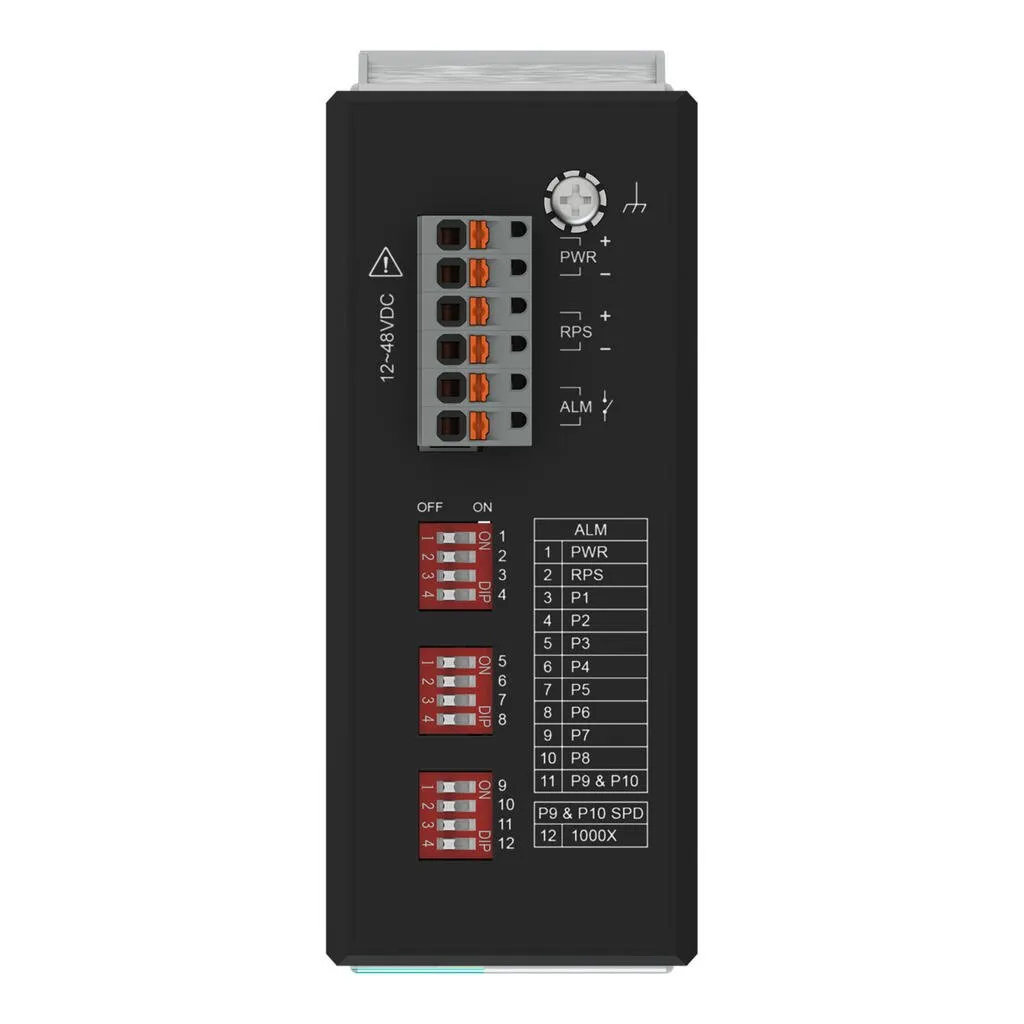

| Control Elements | 12 x DIP switch: Alarm function Supply voltages and ports 1 ... 10; Configuration of SFP speed |

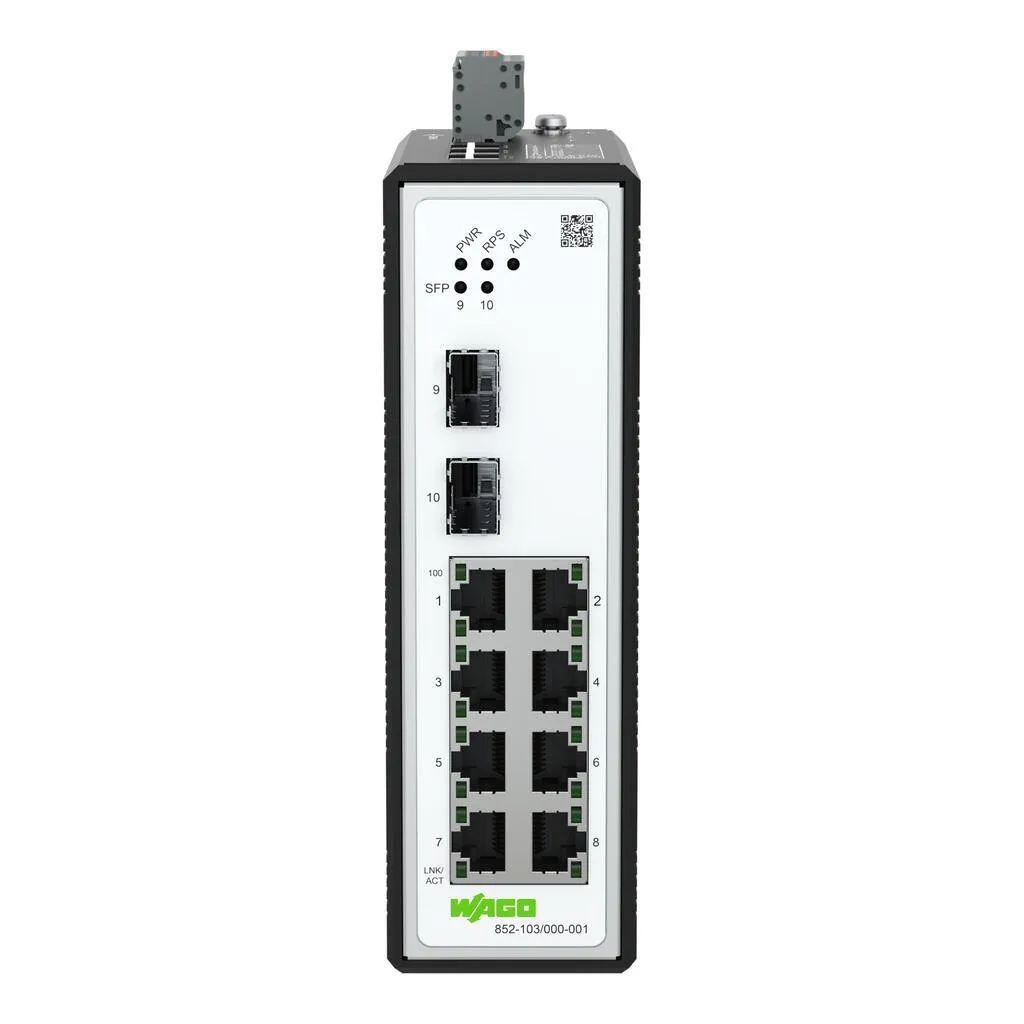

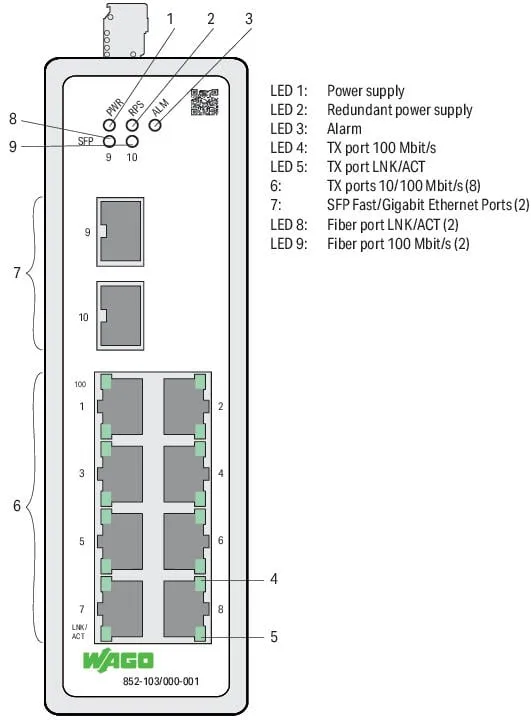

| Indicators | Device: LEDs (PWR, RPS), green: Supply voltage (primary, secondary); LED (ALM), red: Alarm; SFP ports: LED green: Connection and activity status; RJ45 ports: LED (100, LNK/ACT), green: Status 100 Mbit/s, LNK/ACT ports 1 … 8 |
Connection data
| Connection technology: communication/fieldbus | Copper cable: 8 x RJ-45; Fiber optic: 2 x SFP slots (e.g., with SFP module and LC fiber-optic connector) |
|---|---|
| Connection technology: supply | 1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 2231-106/102-000 |
Physical data
| Width | 50 mm / 1.969 inches |
|---|---|
| Height | 161.5 mm / 6.358 inches |
| Depth | 119.9 mm / 4.720 inches |
Mechanical data
| Weight | 793 g |
|---|---|
| Housing material | Aluminum |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -40 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP30 |
| Relative humidity (without condensation) | 95 % |

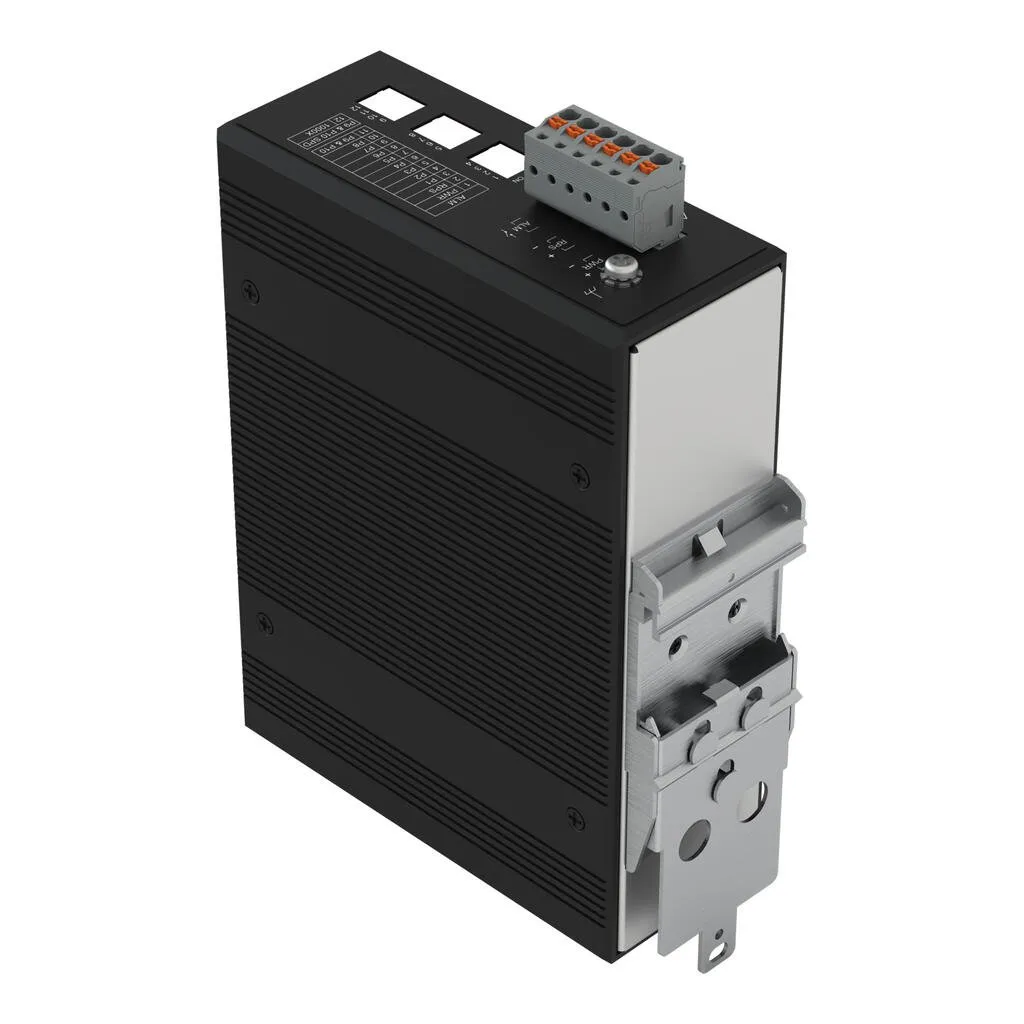

| Mounting type | DIN-35 rail |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | TW |
| GTIN | 4066966783025 |
| Customs tariff number | 85044083900 |
Product Classification
| UNSPSC | 43222612 |
|---|---|
| ETIM 9.0 | EC000734 |
| ETIM 10.0 | EC000734 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
