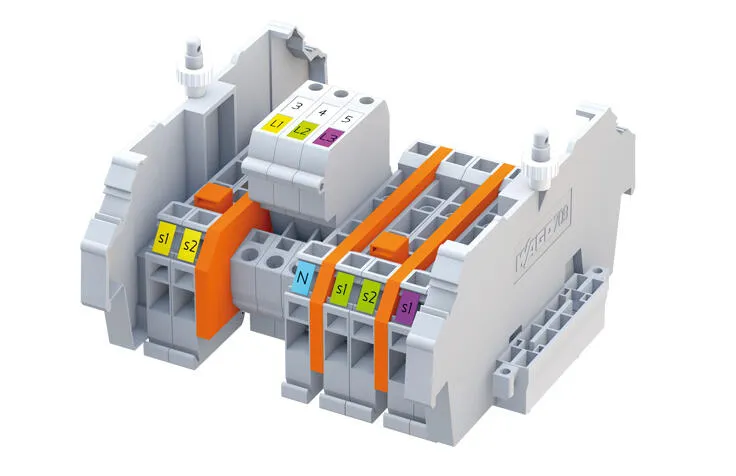

Wago 847-585
WAGO measure rail LPW 847-585
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WAGO measure rail LPW 847-585
Specification
Electrical data - Ratings per Current Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 400 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 41 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per Voltage Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Ratings (note) | Disconnect terminal blocks with item numbers 282-13x are located in the voltage circuit. |
| Rated voltage (III / 3) | 250 V |
| Rated impulse withstand voltage (III/3) | 6 kV |
| Rated current | 3.15 A |
Electrical data - Voltage Signaling
| Power loss at IN = 1Â A (per terminal) | 0.001 |
|---|---|
| Power loss at IN = 5Â A (per terminal) | 0.025 |
Electrical data - Ratings per Fuse Cartridge
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Rated voltage (III / 3) | 250 V |
| Rated current | 3.15 A |
| Time-current characteristic of the fuse cartridge | F |
| Fuse cartridge short-circuit capability | 1.5 kA |
Connection data - Connection: Current Circuit
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
Connection data - Connection: Voltage Circuit
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 6 mm² / 20 … 10 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Connection data - Connection: Voltage Circuit 2
| Actuation type | Operating tool |
|---|---|
| Connectable conductor materials | Copper |
| Solid conductor | 28 … 12 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
Physical data
| Width | 163 mm |
|---|---|
| Height | 155 mm |
| Depth | 95 mm |
Material data
| Fire load | 5.633 MJ |
|---|---|
| Weight | 420 g |
Commercial data
| PU (SPU) | 1 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | PL |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 68ce3b8a-4781-4702-a301-3f64663dc59a |
| SCIP notification number (Belgium) | 7cbaeee0-8f93-42c6-954c-68efe499fac3 |
| SCIP notification number (Bulgaria) | 358ef279-ac3f-4cc1-9c9b-bc49b28c829d |
| SCIP notification number (Czech Republic) | ddf3ae58-21a8-48b5-a0cc-2f82a0fed984 |
| SCIP notification number (Denmark) | aa0376f6-6950-446d-b2b2-e9cb566f5c62 |
| SCIP notification number (Finland) | 7423def9-63c4-442b-80d9-5a5689d57db5 |
| SCIP notification number (France) | fec2ae82-34f8-4d60-8689-b4ebbf404eed |
| SCIP notification number (Germany) | bb196779-0e2e-48cd-9581-3284bd60912f |
| SCIP notification number (Hungary) | 9bacafb7-09a9-4220-90ef-abd6111867ef |
| SCIP notification number (Italy) | 6f652f2b-9d3e-4b4f-a3c3-7dce05bb8e08 |
| SCIP notification number (Netherlands) | 0525436c-8333-4e6a-b38d-40e2555c119b |
| SCIP notification number (Poland) | d4597fd1-036d-4574-b6a0-c7df7a041cba |
| SCIP notification number (Romania) | 1099de66-c2ba-4684-b5d4-68939cbefc17 |
| SCIP notification number (Sweden) | 1ef06272-2663-46e8-9ebe-9072021090e7 |
